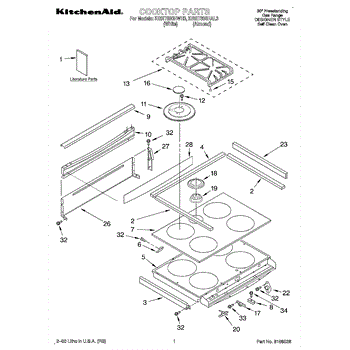

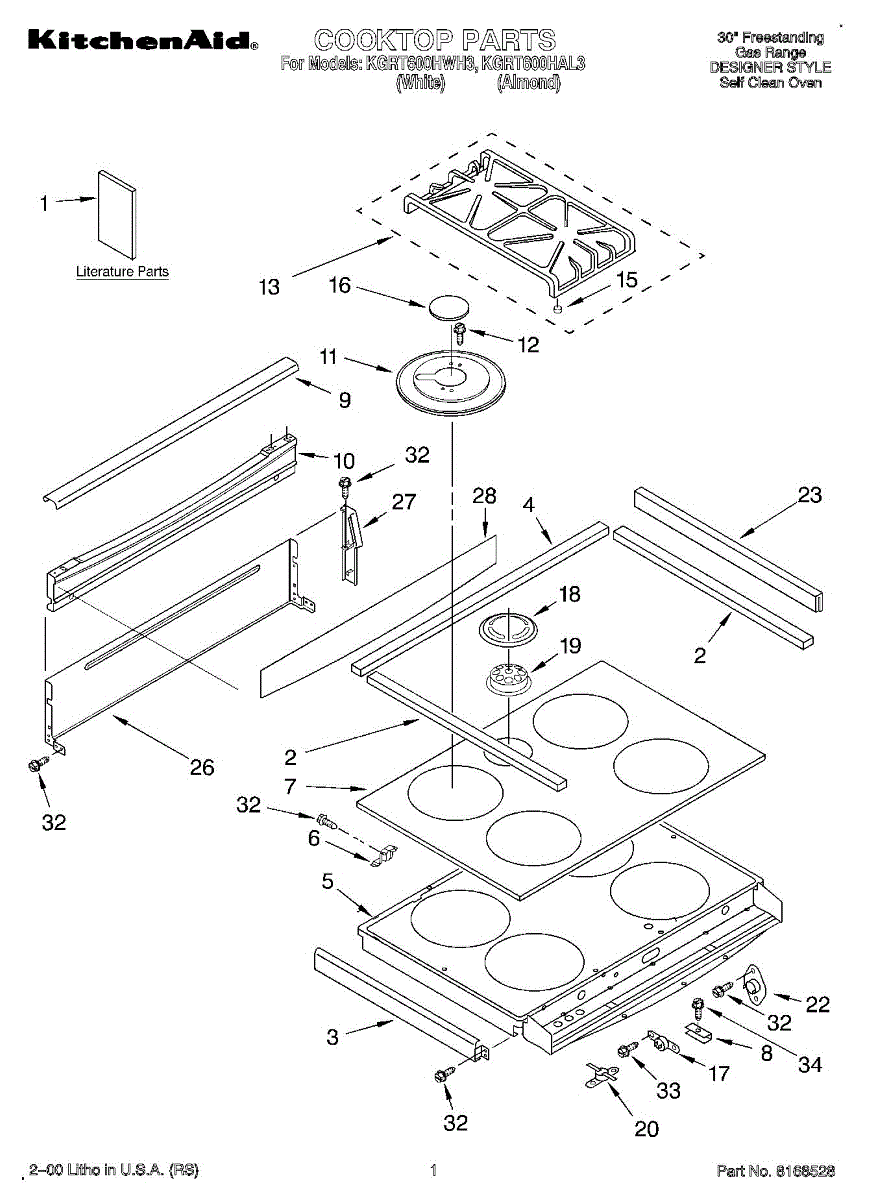

Parts for Kitchenaid KGRT600HAL3: 01 - Cooktop, Literature Parts

Seals the gap between your range cooktop and countertop to prevent spills from entering the cabinet. Replace when worn or missing for a secure fit.

Color: White.

Color: White.

Color: Biscuit. Other colors: For opaque white use 9753606CO, for black use 9753606CB.

Color: White. Other colors: For biscuit use 9753320, for black use 9751632.

Color: White.

Color: Black. Location: Right rear. 12K.

Color: Black. Location: Left front. 14K.

Torx screw secures burner assemblies, igniters, and internal components in gas cooktops and ranges. Replace rusted, stripped, or broken screws.

Color: Black.

Replacement foot pad kit for range grates. Installs underneath grate legs to cushion and stabilize. Replace when worn, cracked, broken, or missing.

Color: Black. Size: Large. 14,000 BTU.

Color: Black. This large cap measures about 3 inches in diameter. For gray order WP3191905. For the small cap order WP3191898.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Color: Black.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Color: White. This is the right side endcap. For left side use 9781884FW.

Color: White. This is the left side endcap. For right side use 9781885FW.

Color: White. Other colors: For biscuit use 9753910CC, for black use 9753910CB.

Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.
