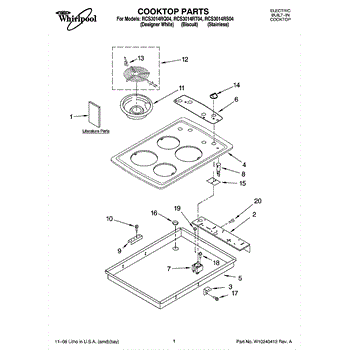

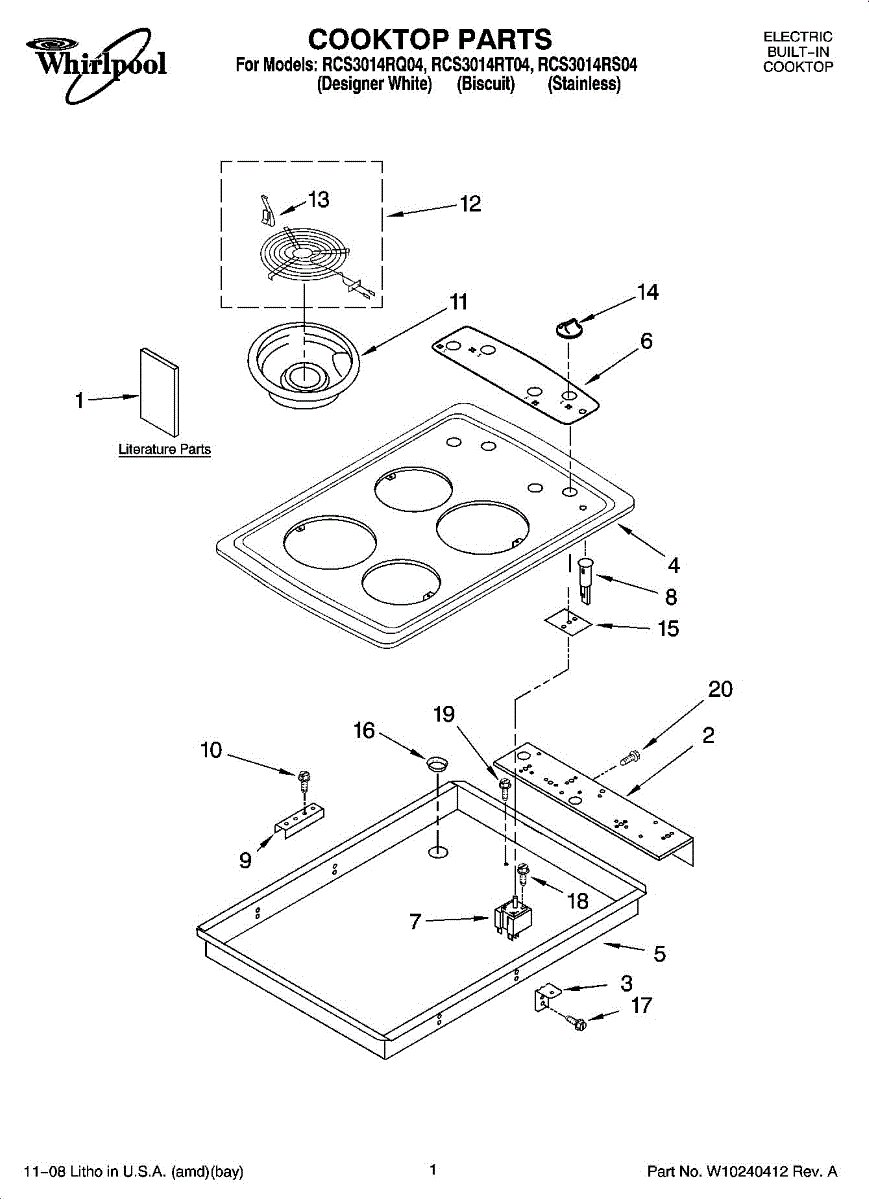

Parts for Whirlpool RCS3014RQ04: 01 - Cooktop Parts

Blue stem. Surface element switch for 6 inch element.

This infinite switch controls power to a cooktop surface element, allowing precise low-to-high heat settings. Replace it if a burner won't heat, stays on high, or won't shut off when the knob is turned to OFF. What it does:

• Regulates voltage to the surface element by cycling power to match the knob setting
• Restores proper temperature control for the designated burner position
• Can address symptoms such as no heat, only high heat, erratic heating, or a burner that won't shut off
• Needed if the control shaft is stripped, broken, or difficult to turn

• One infinite switch

• Disconnect power at the breaker or unplug the appliance before service
• Remove the knob and access the control panel to reach the switch
• Transfer wires to the new switch one at a time, matching terminal markings
• Test burner operation at low and high settings before reassembly

• Many ranges use different switches for small vs. large elements or specific burner locations. Order by your full model number and burner position. A failed surface element or receptacle can mimic switch issues—test those if symptoms persist.

A 240V indicator light that signals when a high-voltage heating circuit is active, helping you confirm element or oven status at a glance. Fits the original control assemblies that use a panel-mounted signal lamp. What it does

• Illuminates to show the related 240V heating circuit or element is powered.
• Helps diagnose heating issues by indicating whether power is reaching the control or element.
• Visible on the front control panel for quick status checks during operation.
• Designed for direct replacement of the panel-mounted indicator lamp.

• Disconnect power at the breaker before accessing the control panel or wiring.
• Handle the lamp and lens carefully to avoid damage; use proper replacement tools.
• Verify correct function after installation by restoring power and observing the indicator during a heat cycle.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

2100W. Size: 8 inch. Location: Right front.

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

This small spring clip secures a heating element to its mounting bracket in a range or wall oven, keeping the element properly positioned for safe, consistent heating. Replaces a worn or missing retainer to stop the element from shifting or sagging. What it does:

• Retains the heating element against its mounting point or bracket
• Helps prevent element sagging, shifting, or rattling during use
• Maintains proper alignment and spacing for reliable performance

• 1 metal spring clip

• Disconnect power at the breaker and allow the appliance to cool completely
• Support the element while removing/installing the clip to avoid stressing terminals
• Match the original clip's orientation and location before reassembly
• Do not bend or overtension the heating element; replace any damaged hardware or wiring as needed

This white control knob replaces a worn, cracked or missing control knob so you can reliably select settings on your appliance's control shaft. It provides a clean, easy-to-grip interface for adjusting temperature or function settings. What it does:

• Fits onto a splined control shaft to allow selection of settings or temperatures
• Restores secure, tactile rotation when the original knob is loose or damaged
• Eliminates slipping or inability to turn the control caused by broken knobs
• Helps prevent accidental changes by providing a proper grip and stop alignment

• Disconnect power (and gas if applicable) before servicing the appliance for safety
• Pull the old knob straight off the control shaft; align splines and push the new knob on until fully seated
• Do not force the knob; if it does not fit easily, confirm spline type and orientation
• After installation, restore power and verify proper control operation

This black surface element control knob fits the burner's infinite switch, letting you turn the element on/off and set heat levels. Replace cracked, stripped, or missing knobs to restore safe, reliable control of your cooktop settings.

• Attaches to the infinite switch shaft to control a surface heating element
• Provides on/off and variable heat selection
• Replace if the knob is cracked, stripped, missing, or no longer engages the shaft
• Helpful when the control is hard to turn, wobbly, or can't be reliably set to Off

• Turn the appliance off and disconnect power before servicing
• Ensure the control is in the Off position
• Pull the old knob straight off the switch shaft; align the new knob with the shaft and press until fully seated
• Do not force; apply even pressure and verify proper alignment

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Size: 8-32 x 1/4 inch.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.
