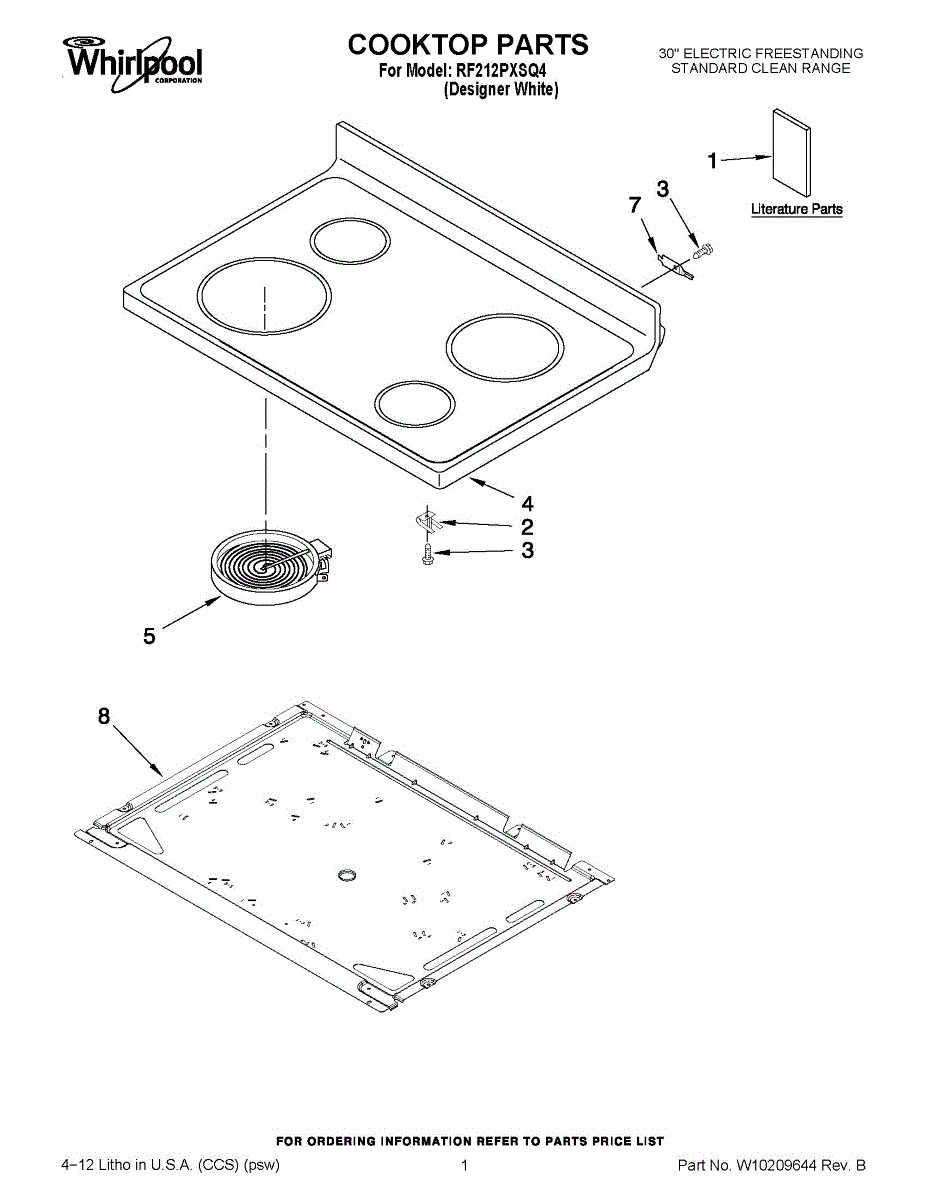

Parts for Whirlpool RF212PXSQ4: 01 - Cooktop Parts

Fix a loose or wobbly burner element with this push spring. Restores proper tension to keep your heating element securely seated and maintains stable contact.

Secure panels and components with this 6-32 machine screw. Replaces stripped, missing, or damaged fastening screws to restore proper fit and stability.

Burner won't heat or heats unevenly? This radiant surface element restores quick, responsive heat. Requires lifting cooktop and reconnecting wires.

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

Replace your range's bottom pan if it's rusted, warped, or damaged. This pan installs beneath the oven cavity to protect the base and collect debris.
