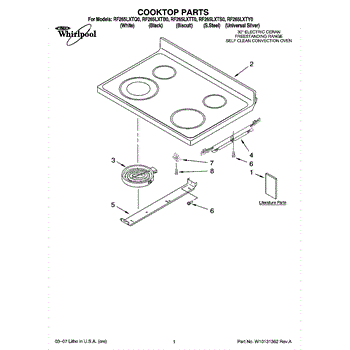

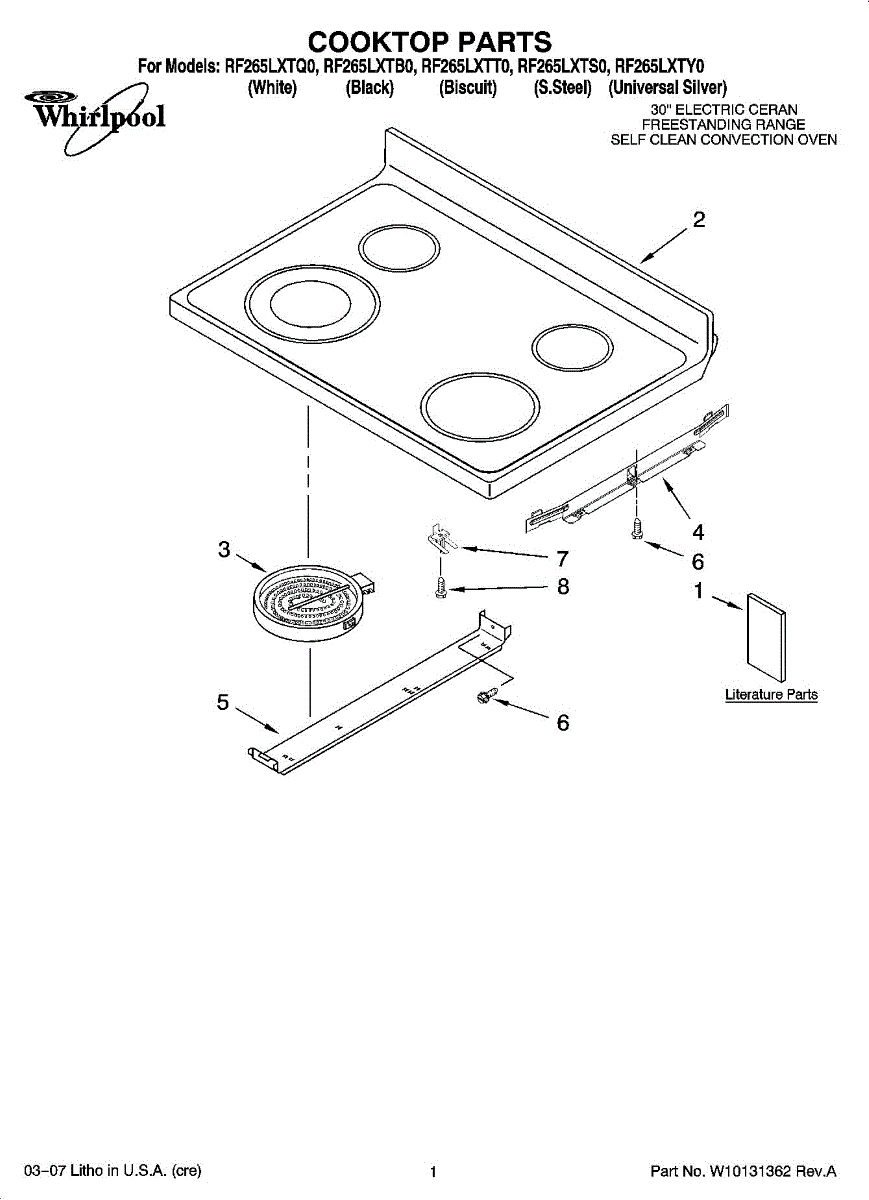

Parts for Whirlpool RF265LXTS0: 01 - Cooktop Parts

This radiant surface heating element restores proper burner performance on electric glass cooktops/ranges. It replaces a failed element so cookware heats evenly and reliably beneath the ceramic glass. What it does:

• Converts electrical energy into radiant heat under the glass-ceramic surface
• Replaces a burner that won't heat at all
• Helps resolve uneven heating or only part of the ring glowing
• Addresses visible damage such as hot spots, discoloration, or breaks in the element

• One surface element

• Disconnect power at the breaker before servicing; allow the cooktop to cool completely
• Lift and support the cooktop; handle the element carefully—it is fragile
• Note wire locations and move them one at a time to the new element; ensure terminals are fully seated
• Reinstall mounting clips/brackets so the element sits flat and clear of the glass before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Radiant Surface Element is an OEM part for Whirlpool ranges. It provides the heat necessary for cooking by radiating heat through the cooktop surface. This element is designed to fit under the glass surface of your range, delivering consistent and even heat for various cooking tasks.

Causes of a bad radiant surface element can include wear and tear from regular use, overheating, or damage due to impact. Electrical issues can also affect the performance of the element, leading to inconsistent heating.

Symptoms of a bad Radiant Surface Element include:

• Uneven heating or hot spots
• The element not heating up at all
• Visible damage or burn marks on the element
• Difficulty in controlling the temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 2500 watts R/F element

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This 6-32 machine screw is a direct-fit fastener used to secure appliance panels and components. It provides a reliable replacement for stripped or missing screws to restore proper fit and reduce vibration or looseness. What it does:

• Secures panels, brackets, and internal components to keep parts aligned and stable
• Restores proper fastening when original screws are missing, stripped, or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Compatible with metal-to-threaded-hole connections that use 6-32 hardware

• Use the correct driver and avoid over-tightening to prevent stripped threads or damaged components
• Disconnect power and follow appliance safety guidelines before servicing
• If threads are damaged, replace both screw and any damaged insert or nut as needed
