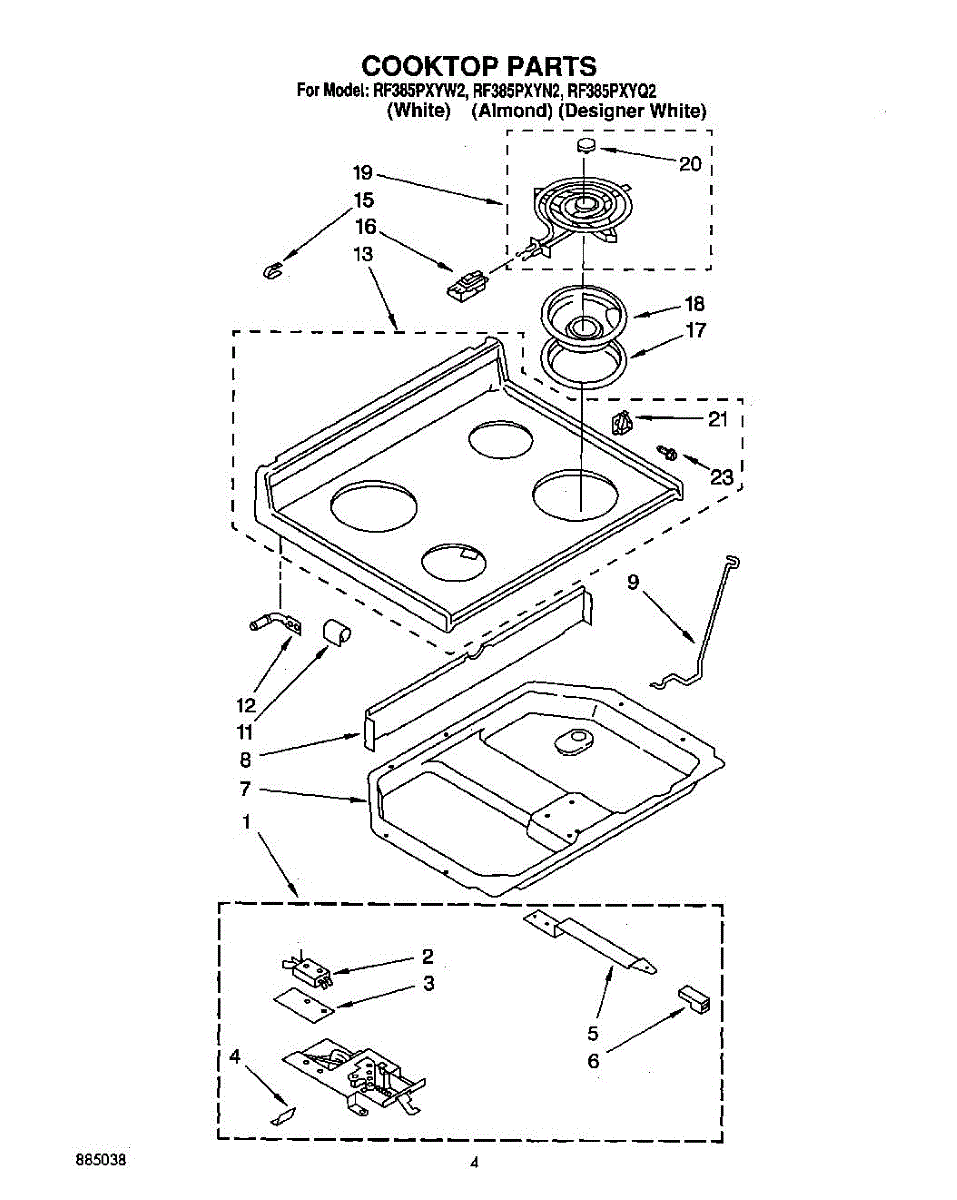

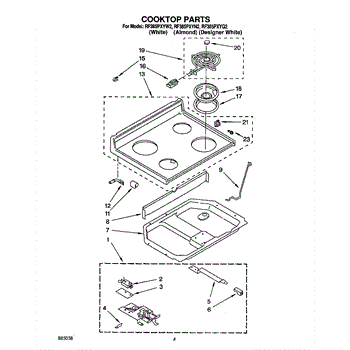

Parts for Whirlpool RF385PXYW2: 03 - Cooktop Parts

Specs: 10-16 x 1/2 inch.

Specs: 6 x 3/8B

Color: Black. No longer available in white

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

10 - 16 x 1/2

Specs: 10-16 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

Size: 6-32 x 9/32 inch.

This is a metal bracket only, for receptacle kit, which includes this bracket, order 330031.

A decorative trim ring that restores the original finish and helps secure surrounding components on your appliance. Replaces cracked, faded or loose trim to improve appearance and maintain a proper fit. What it does

• Covers and finishes the edge of a control or opening to give a clean, factory look.
• Holds adjacent trim or components in place to prevent gaps and rubbing.
• Hides wear, scratches or discoloration for an improved appearance.
• Common symptom: visible cracks, chips, or a loose/misaligned trim piece.

What's included

• One trim ring.

Install notes

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the trim.
• Handle plastic trim carefully to avoid scratches; align tabs/clips before fastening.

This trim ring is a finishing bezel that surrounds an opening or control on your appliance. It covers raw edges, helps align the mating part, and restores a clean, factory look when the original ring is damaged or missing.

• Finishes and protects the edge around a control, shaft, or opening
• Helps center and support the adjacent component for proper fit
• Replaces cracked, warped, loose, or missing rings
• Symptoms include gaps, looseness, rattling, or visible cosmetic wear

What's included: 1 trim ring Install notes:

• Disconnect power; shut off gas/water and allow surfaces to cool
• Note orientation, then release tabs or remove any retaining screws to remove the old ring
• Align the new ring with tabs/notches and press or fasten until fully seated and flush
• Reassemble and restore power; verify a secure fit and proper operation

The Drip Pan is an OEM part for Whirlpool ranges and ovens. It is a removable tray positioned at the bottom of the oven cavity, designed to catch any spills, drips, or food debris that may fall during cooking.

A faulty or damaged drip pan can lead to a buildup of spills and debris, which can cause smoke, odors, and even potential fire hazards if not addressed promptly. Causes of a bad drip pan include warping or discoloration from excessive heat exposure, cracks or holes that allow liquids to seep through, or simply wear and tear over time.

Symptoms that may indicate a need for replacement include:

• Visible cracks, holes, or warping in the drip pan
• Difficulty sliding the pan in or out of the oven cavity
• Persistent smoke or odors from burnt-on spills or debris
• Leaks or spillovers from a damaged or ill-fitting pan

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drip Pan Kit is an OEM replacement part for Whirlpool ranges. It is located below the oven cavity to catch any grease, food debris, or condensation. The drip pan keeps the lower interior clean and prevents messes from spreading. Includes 2 large pans and 2 small pans.

Over time, drip pans can become damaged or worn due to exposure to high temperatures, spilled food, and regular cleaning. Causes of a bad drip pan can include rust, discoloration, warping, or holes developing in the pan, which can compromise its ability to catch spills.

Symptoms of a bad drip pan include:

• Grease or residue building up around the oven's base
• An unpleasant cooking odor lingering below
• Drips or food particles escaping onto nearby surfaces
• Rust or holes forming in the metal pan over time

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: If your originals were a two-piece pan and ring, the ring will no longer be used. They are one piece now.

The Drip Pan, identified as an OEM part for Whirlpool ranges, is designed to fit beneath the burner elements to collect spills, drips, and crumbs during cooking. This accessory helps keep the stovetop clean and reduces the risk of burn-on residues that can be difficult to remove and may cause smoke or odors during future cooking sessions.

Symptoms of a bad drip pan include:

• Persistent stains and residues that are hard to clean
• Rust or corrosion affecting the integrity of the pan
• Misfit that allows spills to bypass the pan

Causes of drip pan degradation often include exposure to high temperatures, acidic spills that can corrode the material, and physical impacts from heavy cookware.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

The 8-inch large Surface Element is an OEM replacement part for Whirlpool induction ranges. It serves as an integral independent heating zone to boil, sauté or simmer large pots quickly.

Symptoms of a bad surface element include:

• Inability to power on or heat evenly across the surface
• Slow inconsistent heating or hot/cold zones developing
• Parts of the coil visibly cracked or disconnected
• Tripped circuit breakers upon heat-up that don't reset

Causes stem from normal thermal stress fatigue of coiled elements exceeding thousands of temperature cycles daily. Continuous high wattage energy may cause microscopic metal deterioration developing over a decade plus of use.

This genuine Whirlpool replacement part is compatible with Kenmore, Roper and Jenn-Air ranges.

For matching 6-inch element order WP660532.

This part has been discontinued and is no longer available.

This factory fastener is a rivet used to secure panels, brackets, and trim within your appliance. Replacing a worn or missing rivet restores a tight, rattle-free fit and keeps components aligned for reliable operation.

• Fastens two components where a durable, vibration-resistant connection is needed
• Replaces broken, loose, or missing rivets to restore proper attachment
• Helps eliminate rattles, vibration, and looseness
• Supports correct alignment of doors, panels, and brackets

• Disconnect power and shut off water/gas before servicing.
• Support the panel or part being fastened to prevent bending or cracking.
• Removing an old rivet typically involves drilling out the head with the correct bit; avoid enlarging the hole.
• Install the new rivet with the appropriate rivet tool per your service manual and holes are aligned.

This factory fastener is a rivet used to secure panels, brackets, and trim within your appliance. Replacing a worn or missing rivet restores a tight, rattle-free fit and keeps components aligned for reliable operation.

• Fastens two components where a durable, vibration-resistant connection is needed
• Replaces broken, loose, or missing rivets to restore proper attachment
• Helps eliminate rattles, vibration, and looseness
• Supports correct alignment of doors, panels, and brackets

• Disconnect power and shut off water/gas before servicing.
• Support the panel or part being fastened to prevent bending or cracking.
• Removing an old rivet typically involves drilling out the head with the correct bit; avoid enlarging the hole.
• Install the new rivet with the appropriate rivet tool per your service manual and holes are aligned.
