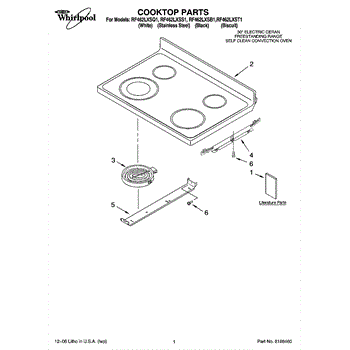

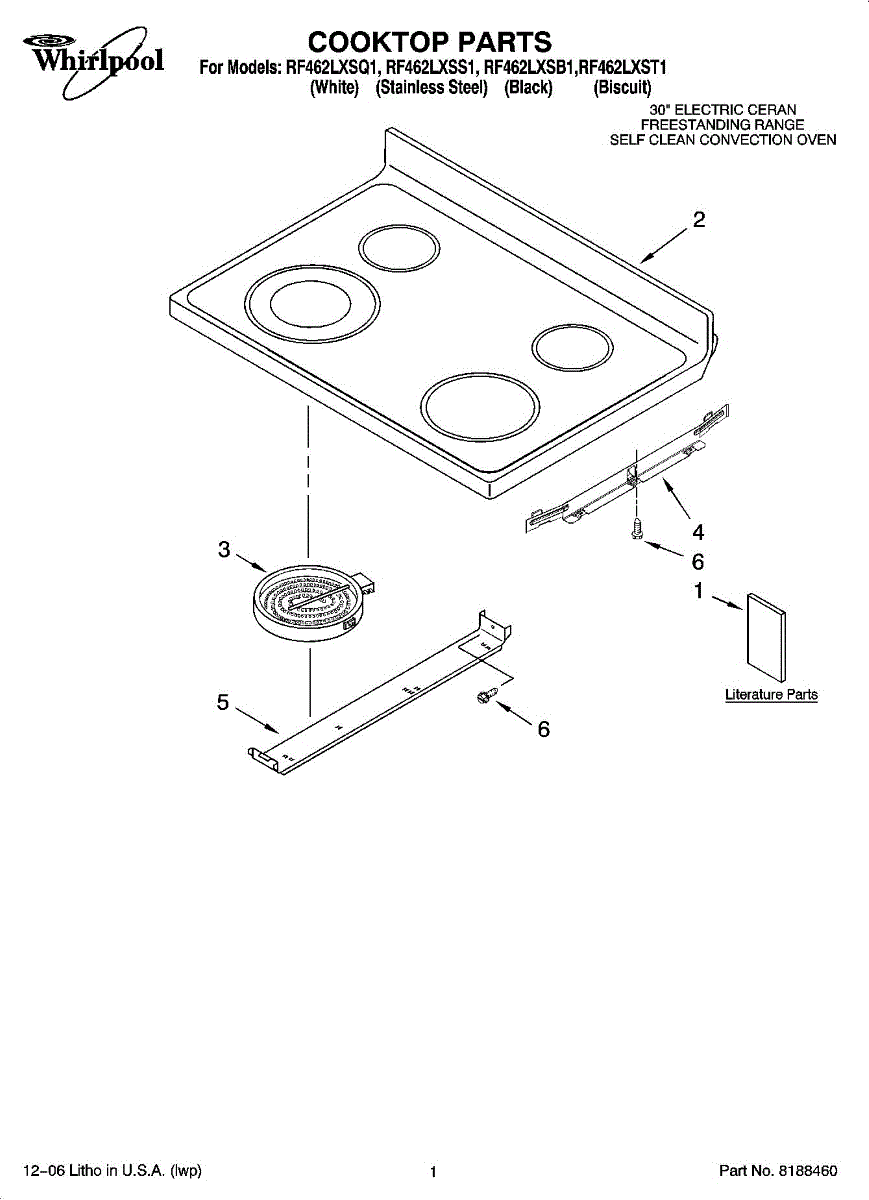

Parts for Whirlpool RF462LXSB1: 01 - Cooktop Parts

This radiant surface heating element restores proper burner performance on electric glass cooktops/ranges. It replaces a failed element so cookware heats evenly and reliably beneath the ceramic glass. What it does:

• Converts electrical energy into radiant heat under the glass-ceramic surface
• Replaces a burner that won't heat at all
• Helps resolve uneven heating or only part of the ring glowing
• Addresses visible damage such as hot spots, discoloration, or breaks in the element

• One surface element

• Disconnect power at the breaker before servicing; allow the cooktop to cool completely
• Lift and support the cooktop; handle the element carefully—it is fragile
• Note wire locations and move them one at a time to the new element; ensure terminals are fully seated
• Reinstall mounting clips/brackets so the element sits flat and clear of the glass before restoring power

This is a 1200-watt, 6-inch radiant heating element designed for a glass-top electric range. It sits beneath the cooktop glass and radiates heat upward to the cooking surface when activated. Replace this element if the burner does not heat, heats unevenly, or fails to reach the correct temperature despite the control being set properly.

Burner not heating? This radiant surface element restores heat to your glass cooktop. DIY-friendly repair, typically done in 15 minutes with our video.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
