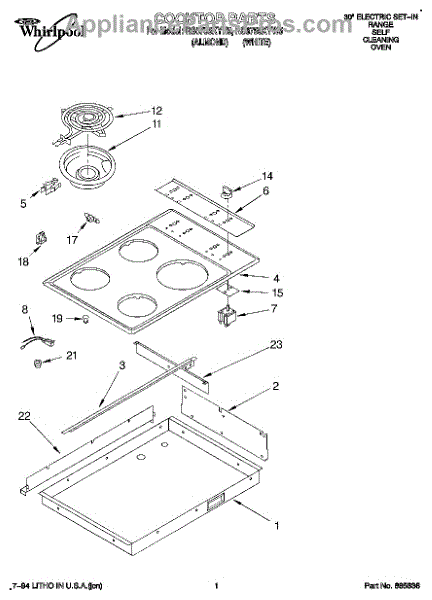

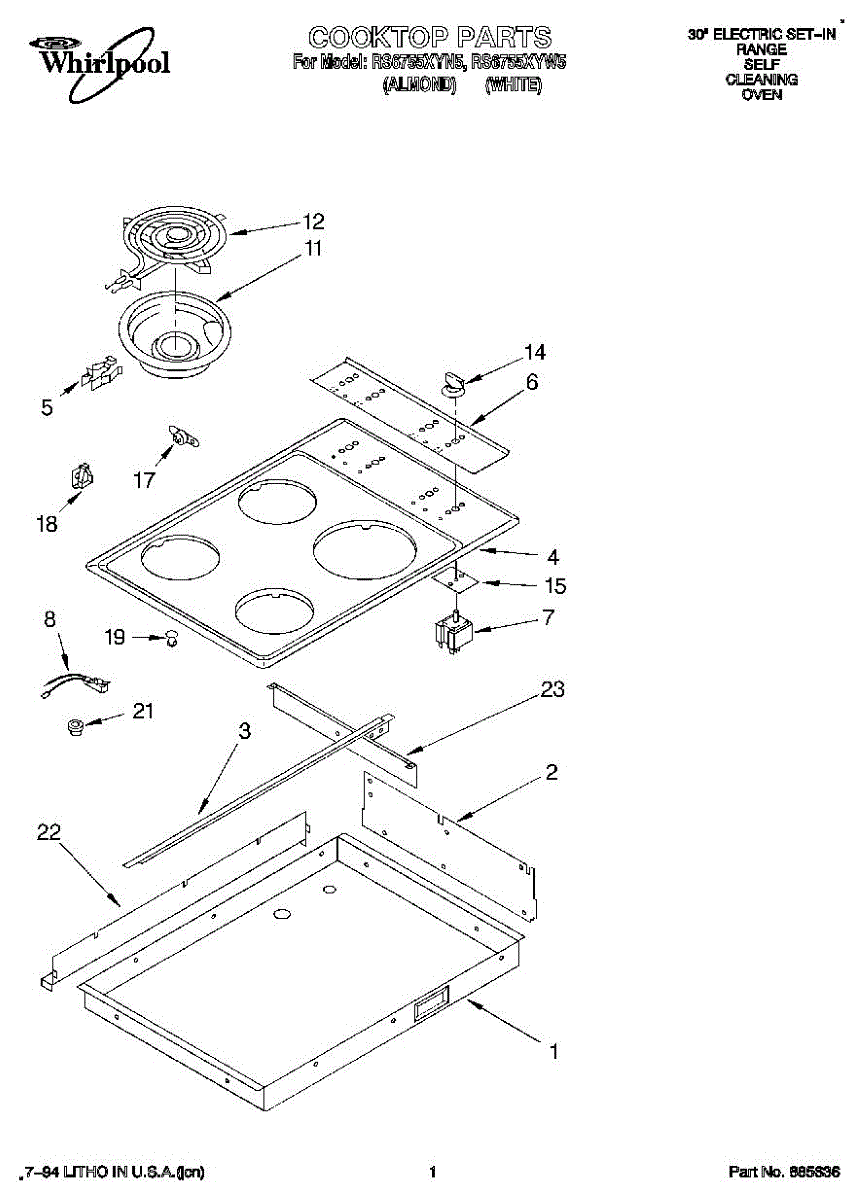

Parts for Whirlpool RS6755XYN5: 01 - Cooktop Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Metal mounting bracket that secures the receptacle kit to your range. Replace this structural bracket if it's bent, broken, or missing during installation.

Switch for 6 inch element.

Burner won't heat or cycles incorrectly? This infinite switch controls temperature for your 8-inch range element. Direct-fit part, moderate difficulty.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This is an 8-inch drip pan that sits beneath the large burner element on an electric range cooktop. It catches spills, crumbs, and grease to keep them from reaching the wiring and components below the cooking surface. Replace this drip pan if it is heavily stained, corroded, warped, or pitted - a damaged pan reduces heat reflection and can create a fire hazard.

Shallow metal pan that sits below burner elements to catch grease and food spills. Replace when cracked, rusted, discolored, or warped for easier cleanup.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

This fixed thermostat monitors and limits temperature to protect the appliance's system and components. It's a simple, non-adjustable sensor/limit switch used where a set cutoff temperature is required for safe operation. What it does:

• Opens or cuts power when the monitored temperature reaches its fixed limit to prevent overheating
• Helps stop continuous heating cycles caused by a failed control or sensor
• Commonly used as a safety cutoff in temperature-control circuits
• Can resolve symptoms like persistent overheating, failure to stop heating, or temperature-related shutdowns

• One fixed thermostat (single unit)

• Disconnect power before inspecting or replacing the thermostat to avoid shock or damage
• Handle gently; avoid bending terminals or stressing sensing elements

Size: 6-32 x 9/32 inch.

This metal clip secures and stabilizes surface burner components on gas cooktops. It prevents burner parts from shifting during cooking and ensures proper alignment for safe gas flow. Install this clip if burner grates move during cooking, flames appear uneven, or burner parts seem loose or misaligned.

This clear plastic cover protects the light bulb inside your dryer drum and diffuses the light evenly. Located on the dryer's interior wall, replace when cracked, yellowed, or missing, as this can expose the bulb to damage from clothing.

This part has been discontinued by the manufacturer and is no longer available.
