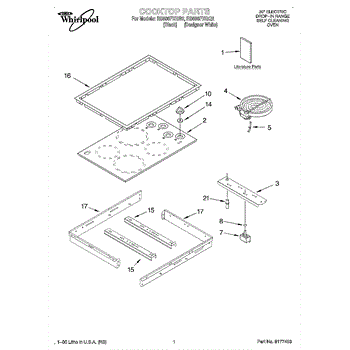

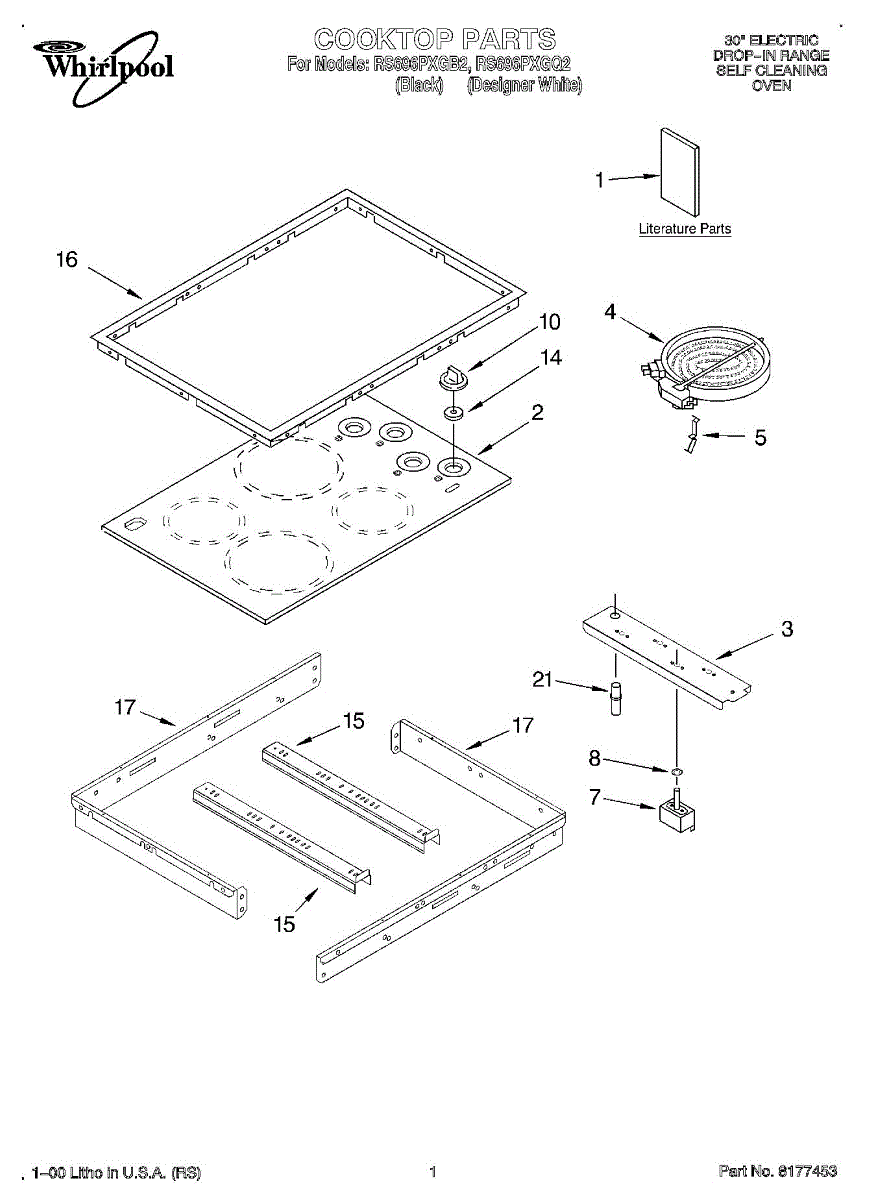

Parts for Whirlpool RS696PXGB2: 01 - Cooktop, Literature Parts

This OEM replacement part is an electric stove cooktop. The cooktop is the main glass piece that sits on top of the stove. It is the flat surface above the burners where pots and pans are placed for cooking.To replace the cooktop, start by getting under the stovetop through the oven. Locate the mounting brackets and loosen them to a vertical position. After brackets have been loosened, push the cooktop up to lift above the stove. The glass top will be attached to a metal chassis. Unthread the screws that secure the top to the chassis. Take the new cooktop and place it on top of the chassis. Tighten the screws to secure the new top. Drop back into the stove and re-secure the mounting bracket.This genuine replacement cooktop is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand electric stoves.

The Surface Element is an OEM replacement part for Whirlpool ranges. It is responsible for generating heat on the cooktop, allowing for efficient and even cooking. This component is designed to provide adjustable heat levels to accommodate various cooking needs, from simmering to boiling.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat up
• Visible damage or wear, such as burns or warping
• Electrical issues, like sparking or short-circuiting

Causes for a malfunctioning Surface Element can be attributed to electrical failures, prolonged use at high temperatures, or physical damage due to spills and overflows.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM replacement part for Whirlpool ranges and cooktops. Specifically designed for the 7" cooktop element, the entire body of the Surface Element measures approximately 8" in diameter. It generates and distributes heat evenly across the cooktop.

Causes of a bad Surface Element can include electrical issues, such as wiring problems or a malfunctioning switch, and physical damage or wear that impairs its heating capability.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat
• Visible damage to the element, such as burns or breaks
• The element not responding to the control switch
• Uneven cooking results due to fluctuating temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

Size: 6-32 x 3/8 inch.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

An infinite switch that controls the heat level for an electric range surface element, allowing smooth temperature adjustments and reliable burner control. Replaces a faulty control to restore consistent element heating and variable heat settings. What it does:

• Regulates power to a single electric surface element so the burner can vary between low and high heat.
• Used when a burner won't heat, stays at one temperature, or heats inconsistently.
• Replaces the control behind the range knob to return normal temperature responsiveness.
• Matches the original function and is intended for surface (coil/glass-top) element control.

• Disconnect the range from power at the breaker before starting any repairs.
• Keep terminals and wiring dry; avoid touching exposed contacts during installation.

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This is the variable heat control for an 8-inch surface element. When the switch fails, the burner may stop heating, stay on high, or lose precise temperature control—replacing it restores smooth, adjustable cooking performance. What it does:

• Regulates power to the 8-inch surface element for variable heat settings
• Common symptoms: burner only on high, no heat, won't shut off, or won't adjust temperature
• Restores proper cycling of the element for consistent heating
• Matches the 8-inch element position designated on the appliance

• 1 surface burner infinite switch

• Disconnect power at the breaker before servicing
• Remove the control knob and access the switch from the control panel/rear panel
• Transfer wires one at a time from the old switch to the same terminals on the new switch
• Secure the switch, reinstall panels/knob, and test the 8-inch burner operation

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

Range surface unit knob. Color: Black. Size: 2 inches in diameter. It measures about 2 inches in diameter. For white order WP3196232. For bisque order WP3196233.

The Control Knob is an OEM replacement part for Whirlpool ranges. This knob allows users to select cooktop burners and oven functions through rotation.

Symptoms of a bad control knob include:

• Burners or oven failing to activate as selected
• Inaccurate temperature or function delivery
• Loose, wobbly, or difficult to turn knob

Causes may be general wear to the assembly over years of repeated adjustments. Knobs can also crack or buttons stick from food/liquid intrusion.

Surface burner control knob with black indicator stripe. Color: White. Measures 2 inches in diameter. For black knob with white indicator stripe use AP3030723. For almond knob use AP3030736.

This OEM Whirlpool part is also compatible with some KitchenAid, Jenn-Air, and select Kenmore stoves and ranges as well.
