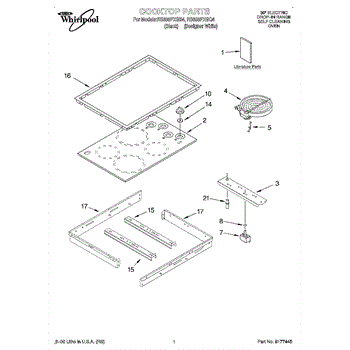

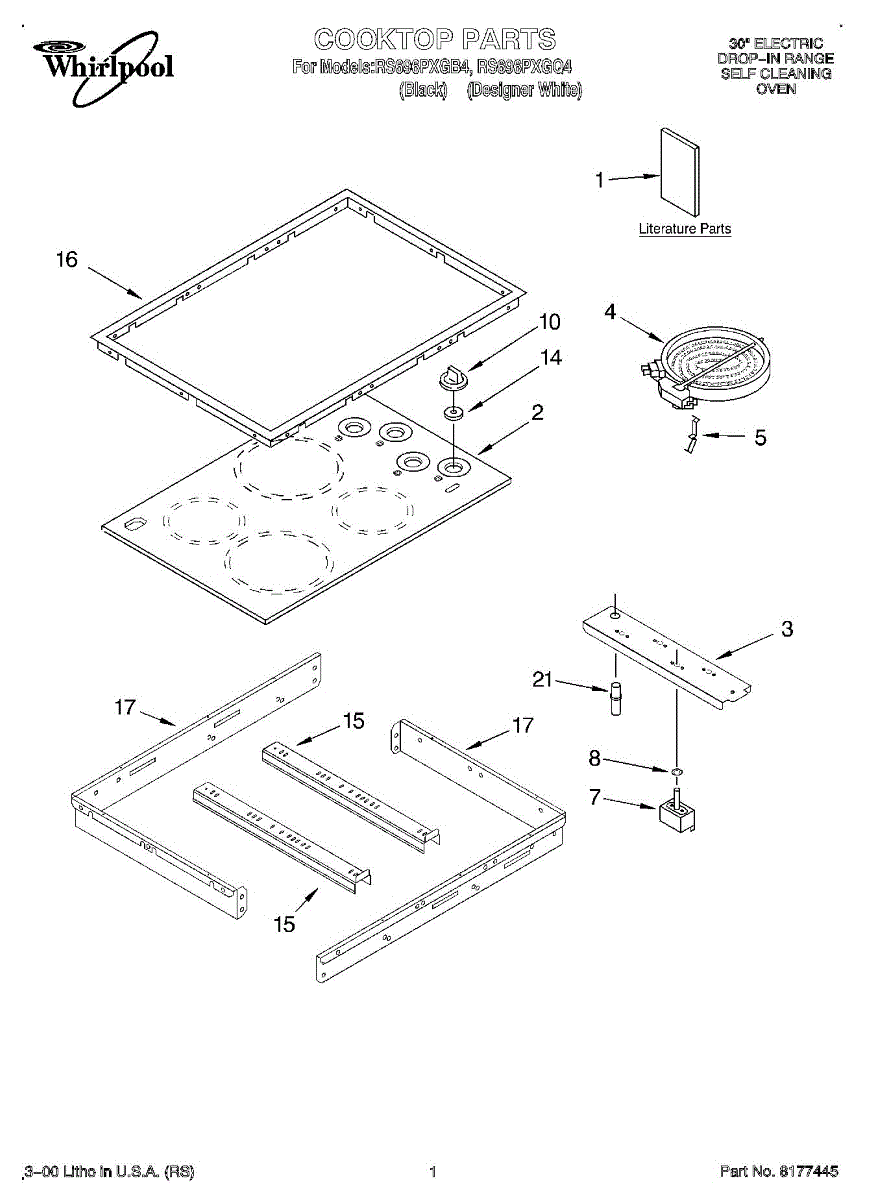

Parts for Whirlpool RS696PXGB4: 01 - Cooktop, Literature Parts

This OEM replacement part is an electric stove cooktop. The cooktop is the main glass piece that sits on top of the stove. It is the flat surface above the burners where pots and pans are placed for cooking.To replace the cooktop, start by getting under the stovetop through the oven. Locate the mounting brackets and loosen them to a vertical position. After brackets have been loosened, push the cooktop up to lift above the stove. The glass top will be attached to a metal chassis. Unthread the screws that secure the top to the chassis. Take the new cooktop and place it on top of the chassis. Tighten the screws to secure the new top. Drop back into the stove and re-secure the mounting bracket.This genuine replacement cooktop is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand electric stoves.

Large burner not heating or stuck on high? This surface heating element restores proper cooktop function. Easy DIY repair in 30-60 minutes with basic tools.

Burner won't heat or stays cold? This surface heating element restores consistent heat distribution. Most DIYers complete this repair in under 30 minutes.

Burner not heating or 'Hot Surface' light stays on? This electric cooktop surface element is likely the fix. DIY-friendly, most installs take 15 minutes.

Size: 6-32 x 3/8 inch.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Burner won't heat or won't turn off? This infinite switch controls surface element temperature. DIY repair restores variable heat settings.

Fix a burner that won't heat or has no temperature control by replacing this 6-inch element switch. Restores smooth low-to-high heat adjustment in 30 minutes.

If your 8-inch burner won't heat, stays on high, or lost temperature control, this infinite switch is the fix. 30-minute DIY repair restores precision.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

Range surface unit knob. Color: Black. Size: 2 inches in diameter. It measures about 2 inches in diameter. For white order WP3196232. For bisque order WP3196233.

Replace your range control knob if cracked, broken, or missing. This knob installs on the control panel to select burners and oven functions by rotation.
