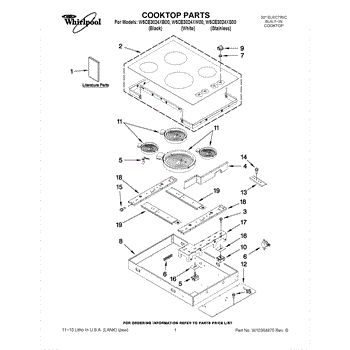

Parts for Whirlpool W5CE3024XW00: 01 - Cooktop Parts

Color: White

Color: Black

Color: Black Glass w/Stainless Trim

The Cooktop is an OEM part for Whirlpool electric ranges and drop-in cooktops. This heavy-duty glass-ceramic cooktop provides multiple induction cooking zones to accommodate various-sized cookware. Engineered for durability and easy cleaning, the cooktop's sleek surface creates an efficient workspace.

Symptoms of a bad cooktop include:

• Zones that do not heal properly or cut out intermittently
• Visible cracks or damage compromising its sealed surface
• Indicator lights or controls that malfunction

Causes can be thermal stress from periodic food boil-overs or impacts, typical wear over years of cooking heat exposure, or surface penetration. Replace it with this genuine Whirlpool OEM cooktop to restore full heat control and cooking functionality.

Color: Black with stainless trim

This replacement cooktop is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore-branded kitchen appliances. Maintaining quality factory components like the cooktop preserves optimum performance.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This heat shield protects nearby cabinet and internal components from excess heat by directing and containing heat away from sensitive parts. It helps prevent heat damage and keeps the appliance operating safely. What it does:

• Shields surrounding panels and components from direct contact with heat sources
• Reduces risk of scorched or discolored cabinet surfaces near the heater or burner
• Helps keep insulation and wiring from overheating
• Can stop heat-related noises from expanding metal near the heating area

• One heat shield

• Turn off and unplug the appliance (or shut off gas supply) and allow all components to fully cool before starting
• Use appropriate hand protection; shield edges may be sharp
• Reinstall fasteners snugly but avoid overtightening; follow OEM diagram for correct placement

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: black. Measures about 1-1/2 inches in diameter.

Color: White

Color: Black

The Knob is an OEM part for Whirlpool cooktops. This knob allows you to control the heat level of your cooktop burners, providing precise adjustment for cooking.

Causes of a bad cooktop knob can include wear and tear from regular use, damage due to excessive force, or exposure to high heat that can cause the knob to crack or become discolored.

Symptoms of a bad cooktop knob include:

• Difficulty turning the knob or adjusting the burner heat
• The knob feeling loose or not fitting securely on the control shaft
• Cracks, breaks, or discoloration on the knob surface
• Inconsistent or unresponsive burner operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Stainless

The Control Knob is an OEM part for Whirlpool ranges and ovens. It is used to adjust the settings for the oven or stove, allowing precise control over temperature and cooking functions.

Causes of a bad control knob can include normal wear and tear, cracking or breaking from frequent use, or damage from exposure to heat.

Symptoms of a bad control knob include:

• Difficulty in turning or adjusting the settings
• The knob not staying in place
• Visible cracks or broken pieces
• Inaccurate temperature or setting control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Infinite Switch is an OEM component specifically designed for Whirlpool ranges and cooktops. It is an electronic interface responsible for controlling cooktop burner operation, selecting power levels, or specialized infinite heating settings.  Precise switch functioning allows customizable and convenient cooking control.

Causes of failure are typically related to water intrusion corrupting internal circuits or normal wear of integrated circuits and contact pads with extensive use over time.

Symptoms of a bad infinite switch include:

• Non-responsive or intermittent burner/element operation
• Inability to select specialized infinite heat functions
• Fault codes or error messages shown relating to control issues

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface burner infinite switch regulates power to a range or cooktop's heating element, letting you adjust heat from simmer to boil. Replace a failed switch to restore smooth, consistent temperature control at the knob.

• Regulates the on/off cycling of a surface element based on the selected knob setting
• Can help resolve a burner not heating, stuck on high, or heat that won't adjust consistently
• Addresses intermittent heating or a burner that won't turn off
• Installs in the control panel behind the surface burner knob

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel; label or photograph wire positions on the old switch
• Move wires to the matching terminals on the new switch and secure the switch
• Reinstall the knob, restore power, and test burner operation

The Infinite Switch is an OEM replacement part for Whirlpool ranges. This component regulates the power supply to the heating elements, allowing users to adjust the temperature levels on the stovetop. By turning the knob connected to the infinite switch, users can set the cooking temperature to low, medium, high, or anywhere in between, ensuring precise heat control for various cooking needs.

Symptoms of a bad Infinite Switch include:

• Heating elements not heating up or overheating
• Inability to adjust the temperature of the burners
• The burners heating intermittently or not at all
• Electrical buzzing or sparking noises during operation

Causes for a malfunctioning Infinite Switch can include electrical issues such as wiring problems, wear and tear from regular use, or internal failures within the switch that affect its ability to regulate power.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

1800 watt

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Radiant Surface Element is an OEM part for Whirlpool ranges. It provides the heat necessary for cooking by radiating heat through the cooktop surface. This element is designed to fit under the glass surface of your range, delivering consistent and even heat for various cooking tasks.

Causes of a bad radiant surface element can include wear and tear from regular use, overheating, or damage due to impact. Electrical issues can also affect the performance of the element, leading to inconsistent heating.

Symptoms of a bad Radiant Surface Element include:

• Uneven heating or hot spots
• The element not heating up at all
• Visible damage or burn marks on the element
• Difficulty in controlling the temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 2500 watts R/F element

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
