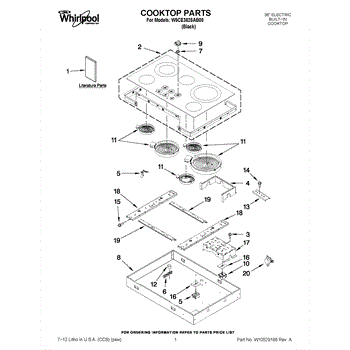

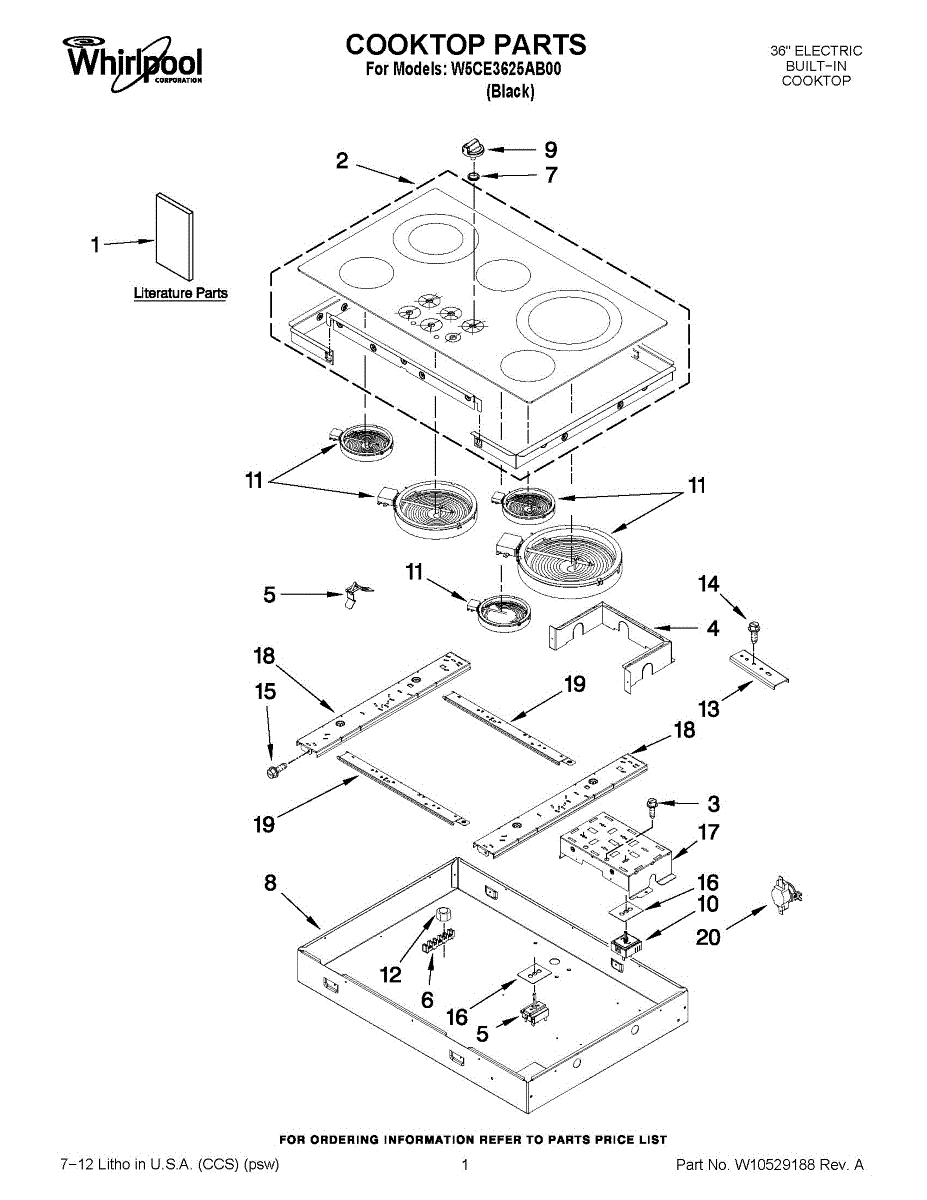

Parts for Whirlpool W5CE3625AB00: 01 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: black. Measures about 1-1/2 inches in diameter.

Color: Black

The Knob is an OEM part for Whirlpool cooktops. This knob allows you to control the heat level of your cooktop burners, providing precise adjustment for cooking.

Causes of a bad cooktop knob can include wear and tear from regular use, damage due to excessive force, or exposure to high heat that can cause the knob to crack or become discolored.

Symptoms of a bad cooktop knob include:

• Difficulty turning the knob or adjusting the burner heat
• The knob feeling loose or not fitting securely on the control shaft
• Cracks, breaks, or discoloration on the knob surface
• Inconsistent or unresponsive burner operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This infinite switch controls the heat level for an electric cooktop's surface burner, letting you select and hold precise heating settings for cooking. It replaces a worn or failed burner control to restore adjustable burner power. What it does:

• Regulates electrical power to a single surface/top burner for variable heat
• Enables selection of multiple heat settings rather than fixed on/off
• Commonly used when a burner won't heat, is stuck on a setting, or heats inconsistently
• Works with standard infinite-style rotary control knobs

• Disconnect power to the range at the circuit breaker before starting any work
• Access typically requires removing the cooktop or control panel—refer to your model's service instructions
• Handle glass or ceramic cooktops carefully to avoid damage during removal/installation

This infinite top burner control switch restores variable heat control to an electric range burner so the cooktop responds correctly to knob settings. It replaces a worn or faulty rotary control for simmer-to-high temperature adjustment. What it does:

• Regulates power to a single surface element so you can adjust burner heat across multiple settings
• Commonly used when a burner won't heat, heats inconsistently, or won't change temperatures with the knob
• Can address symptoms like a burner stuck on one setting, no heat from a specific burner, or erratic temperature control
• Works with the range's knob and wiring harness to provide stepped/resistive control rather than simple on/off operation

• Disconnect power to the appliance at the breaker before inspecting or replacing the switch
• Handle terminals and wiring carefully; avoid touching live contacts and verify correct connector orientation before reassembly
• The switch matches the original by comparing terminal layout and mounting points

This surface burner infinite switch regulates power to a range or cooktop's heating element, letting you adjust heat from simmer to boil. Replace a failed switch to restore smooth, consistent temperature control at the knob.

• Regulates the on/off cycling of a surface element based on the selected knob setting
• Can help resolve a burner not heating, stuck on high, or heat that won't adjust consistently
• Addresses intermittent heating or a burner that won't turn off
• Installs in the control panel behind the surface burner knob

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel; label or photograph wire positions on the old switch
• Move wires to the matching terminals on the new switch and secure the switch
• Reinstall the knob, restore power, and test burner operation

The Infinite Switch is an OEM replacement part for Whirlpool ranges. This component regulates the power supply to the heating elements, allowing users to adjust the temperature levels on the stovetop. By turning the knob connected to the infinite switch, users can set the cooking temperature to low, medium, high, or anywhere in between, ensuring precise heat control for various cooking needs.

Symptoms of a bad Infinite Switch include:

• Heating elements not heating up or overheating
• Inability to adjust the temperature of the burners
• The burners heating intermittently or not at all
• Electrical buzzing or sparking noises during operation

Causes for a malfunctioning Infinite Switch can include electrical issues such as wiring problems, wear and tear from regular use, or internal failures within the switch that affect its ability to regulate power.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface heating element replaces a failed top burner to restore stovetop heating for cooking. It installs into the cooktop and provides the heating surface that transfers heat to cookware. What it does:

• Heats cookware when the stove element control is on
• Restores a burner that does not heat or only heats intermittently
• Replaces elements that show visible damage, breaks, or do not glow when powered
• Helps correct uneven heating or inconsistent temperature at one burner

• Includes one surface heating element

• Disconnect power to the range at the breaker before beginning repair
• Allow the cooktop and element to cool completely before handling
• Handle terminals carefully and reconnect using the original wiring and hardware
• After installation, test the burner on low and high settings to ensure proper operation

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Radiant Surface Element is an OEM part for Whirlpool ranges. It provides the heat necessary for cooking by radiating heat through the cooktop surface. This element is designed to fit under the glass surface of your range, delivering consistent and even heat for various cooking tasks.

Causes of a bad radiant surface element can include wear and tear from regular use, overheating, or damage due to impact. Electrical issues can also affect the performance of the element, leading to inconsistent heating.

Symptoms of a bad Radiant Surface Element include:

• Uneven heating or hot spots
• The element not heating up at all
• Visible damage or burn marks on the element
• Difficulty in controlling the temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 2500 watts R/F element

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This replacement Thermostat Fix repair kit secures the thermostat assembly to help stabilize temperature sensing and restore consistent appliance performance. It's a small service part used when the thermostat mounting or retention hardware is worn or damaged. What it does

• Secures or replaces thermostat mounting/retention hardware to keep the sensor in proper contact
• Helps reduce intermittent temperature readings or cycling caused by a loose thermostat
• Restores stable thermostat positioning after vibration or wear
• Can stop noise or rattling related to a loose thermostat assembly

• One Thermostat Fix repair part

• Disconnect power to the appliance before servicing to prevent shock or injury
• Access the thermostat area per your appliance's service instructions; retain any screws or clips removed
• Replace the worn or damaged retention piece with this part and verify secure fit before reassembly
