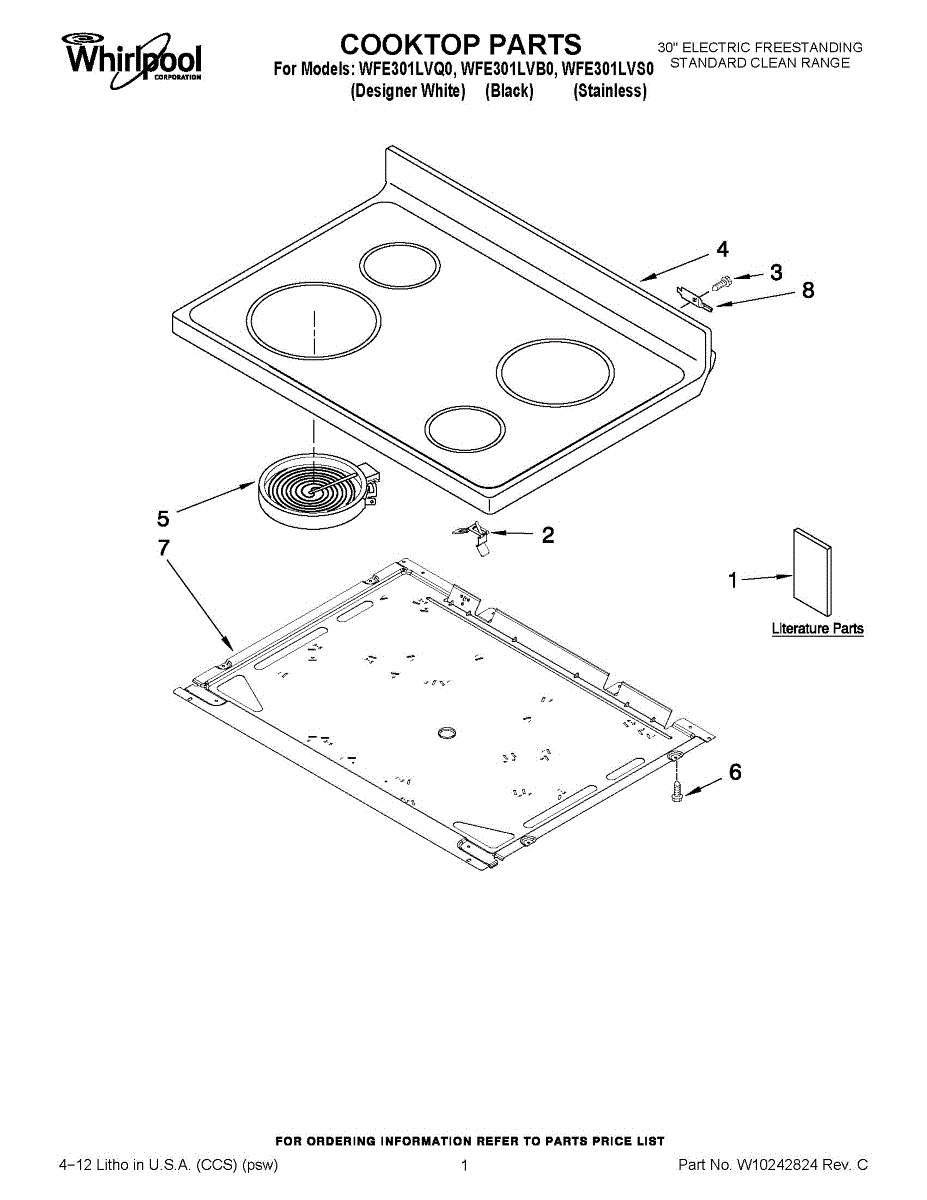

Parts for Whirlpool WFE301LVB0: 01 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This 1500W ribbon surface element is a direct-replacement electric cooktop burner that restores even, consistent heat for everyday cooking. Designed to match OEM specs and replace a damaged or non-heating surface element quickly. What it does:

• Produces heat for pans and cookware at the cooktop's mid-power burner location
• Replaces an element that won't heat, heats unevenly, or has visible damage
• Provides the ribbon-style heating element used on many electric ranges for consistent surface temperature
• Helps restore normal surface control knob function when the element is the faulty component

• Disconnect power at the breaker and ensure the cooktop is cool before starting
• Handle the element carefully to avoid bending terminals or damaging insulation
• Verify terminal connections are secure and match the original wiring layout

This 2000-watt surface heating element restores steady, responsive heat to a cooktop burner. Replace a weak or failed element to bring back quick heat-up and even, consistent cooking performance. What it does:

• Supplies up to 2000 watts of heat to the selected burner zone
• Works with the surface control to achieve and maintain set temperatures
• Common fix for: burner not heating, slow or uneven heating, or intermittent operation
• Replace if the element shows visible damage such as cracks, blistering, or burned spots

• 1 surface heating element (2000W)

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the cooktop to access the element; handle the glass carefully
• Move wires and any mounting clips from the old element to the new one, one connection at a time, matching positions
• Secure connections before reassembly; if issues persist, inspect the surface switch and wiring harness

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas
