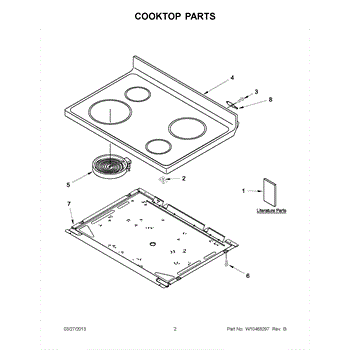

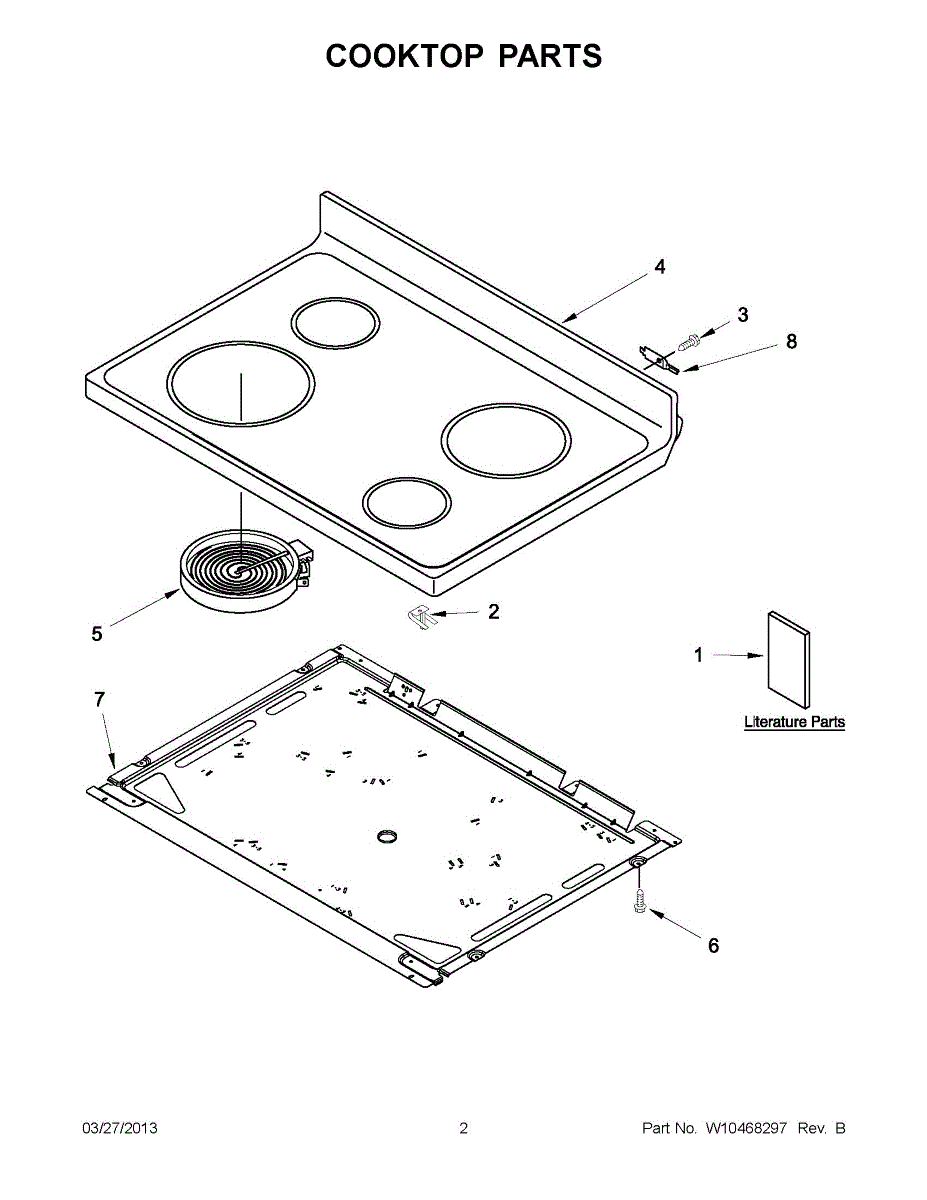

Parts for Whirlpool WFE330W0AS0: 01 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This surface heating element replaces a damaged or faulty top burner to restore consistent cooktop heating. It fits into the range surface and converts electrical power into the heat needed for pots and pans. What it does:

• Heats cookware for stovetop cooking when energized
• Replaces a burner that won't heat or produces little to no heat
• Helps restore even heating if a single element is cooler than the others
• Replaces visibly damaged, warped, or non-functioning surface elements

• Disconnect power to the appliance before servicing to avoid electric shock
• Use protective gloves; element edges and terminals can be sharp
• Verify correct terminal connections and secure fit before restoring power

1800 watt

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas
