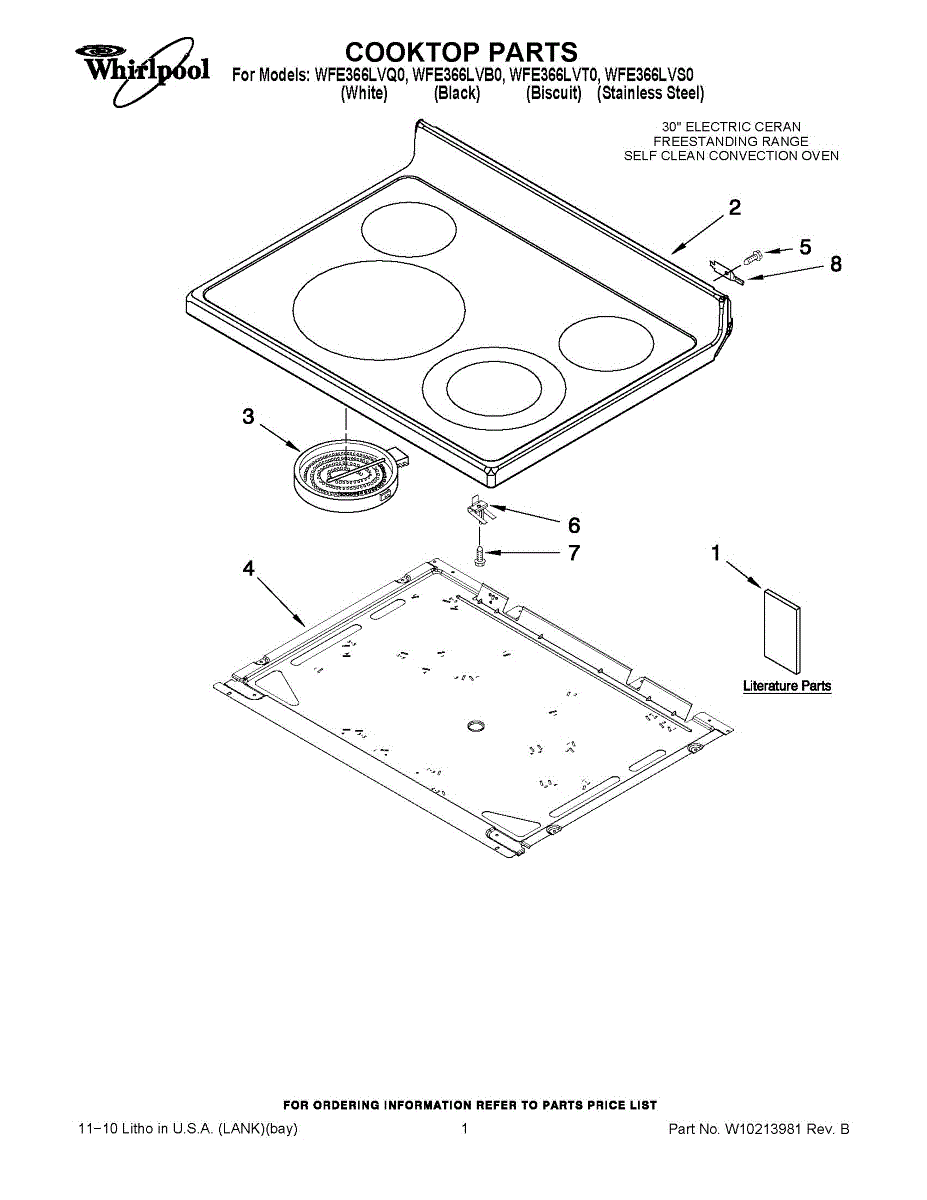

Parts for Whirlpool WFE366LVB0: 01 - Cooktop Parts

Replace your range's cracked or broken glass cooktop surface. This main top installs over the burner elements to provide a smooth cooking surface.

Color: Bisque

White glass cooktop for electric ranges. Replaces cracked, chipped, or broken cooktop surfaces. Direct fit installation on top of range cabinet.

Replace a failed range surface element when your cooktop burner won't heat or stops working. Restores even heating and temperature control. DIY repair.

Burner not heating or heating unevenly? This dual radiant surface element restores consistent heat to both rings. DIY-friendly, installs in 15 minutes.

This is a 1200-watt, 6-inch radiant heating element designed for a glass-top electric range. It sits beneath the cooktop glass and radiates heat upward to the cooking surface when activated. Replace this element if the burner does not heat, heats unevenly, or fails to reach the correct temperature despite the control being set properly.

Replace your range's bottom pan if it's rusted, warped, or damaged. This pan installs beneath the oven cavity to protect the base and collect debris.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Fix a loose or wobbly burner element with this push spring. Restores proper tension to keep your heating element securely seated and maintains stable contact.

Secure panels and components with this 6-32 machine screw. Replaces stripped, missing, or damaged fastening screws to restore proper fit and stability.

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas
