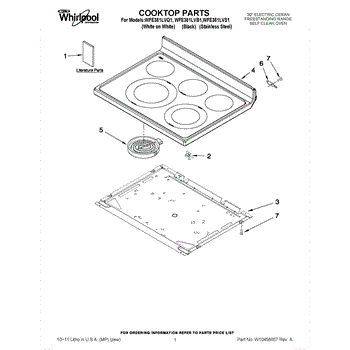

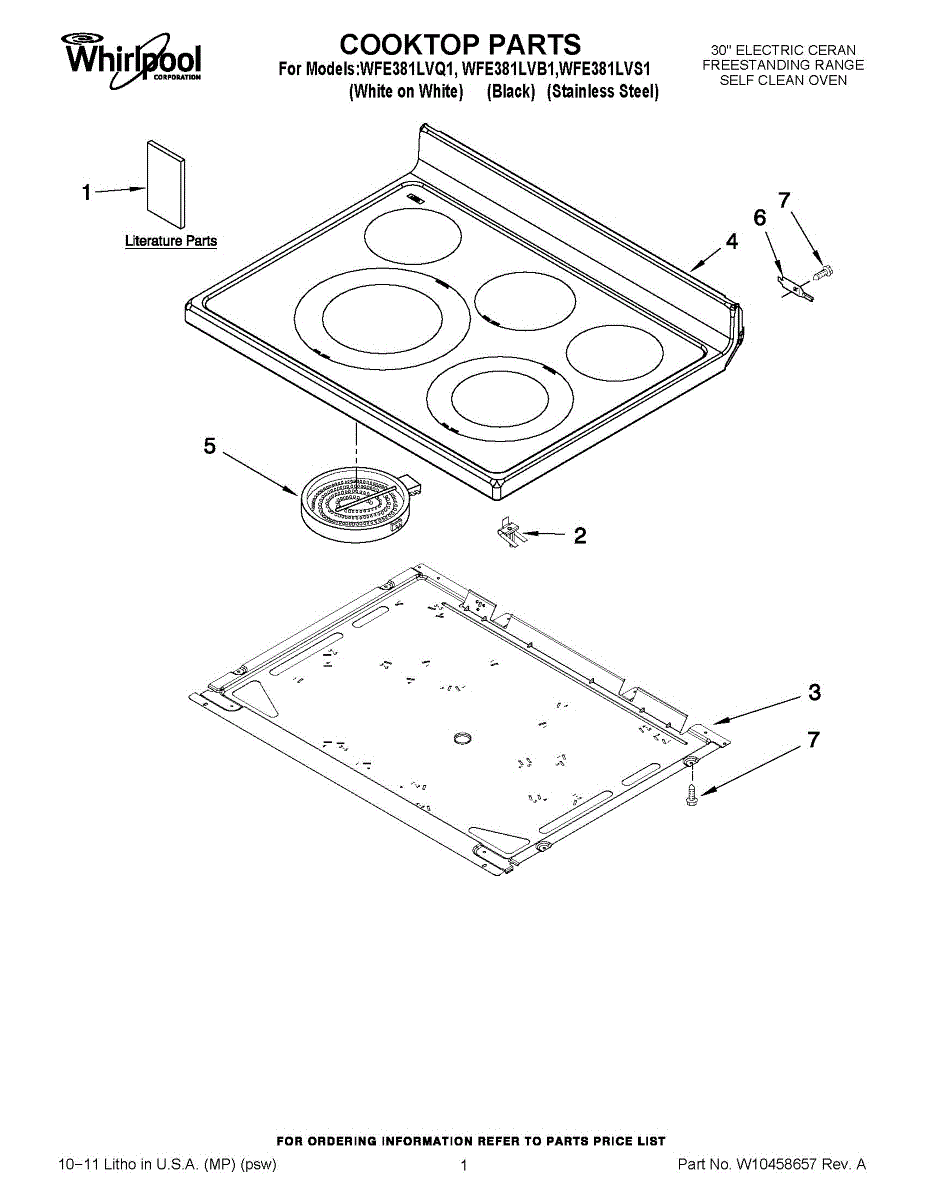

Parts for Whirlpool WFE381LVB1: 01 - Cooktop Parts

Fix a loose or wobbly burner element with this push spring. Restores proper tension to keep your heating element securely seated and maintains stable contact.

Replace your range's bottom pan if it's rusted, warped, or damaged. This pan installs beneath the oven cavity to protect the base and collect debris.

White glass main top for electric ranges. Replaces cracked, chipped, or broken cooktop surfaces. Restores the appearance and structural integrity.

The Cooktop is an OEM component specifically designed for Whirlpool ranges.

Causes of a bad cooktop can include cracks or breaks in the glass surface, non-functional or faulty heating elements that will not reach proper cooking temperatures or damage to electronic controls.

Symptoms of a bad cooktop include:

• Uneven or slow heating of elements
• Elements that will not turn on or only function at certain power levels
• Fractures, chips or breaks in the glass cooking surface
• Improper sensing of cookware leading to inaccurate heating

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore models.

Fix a non-working warm zone on your electric range with this surface heating element. Restores low-temperature heating for keeping food warm. DIY repair.

Replace a burner that won't heat, only works partially, or stuck on high. This dual-zone radiant surface element fits glass cooktops and restores control.

Burner not heating or 'Hot Surface' light stays on? This electric cooktop surface element is likely the fix. DIY-friendly, most installs take 15 minutes.

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
