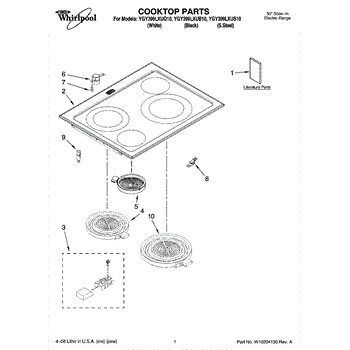

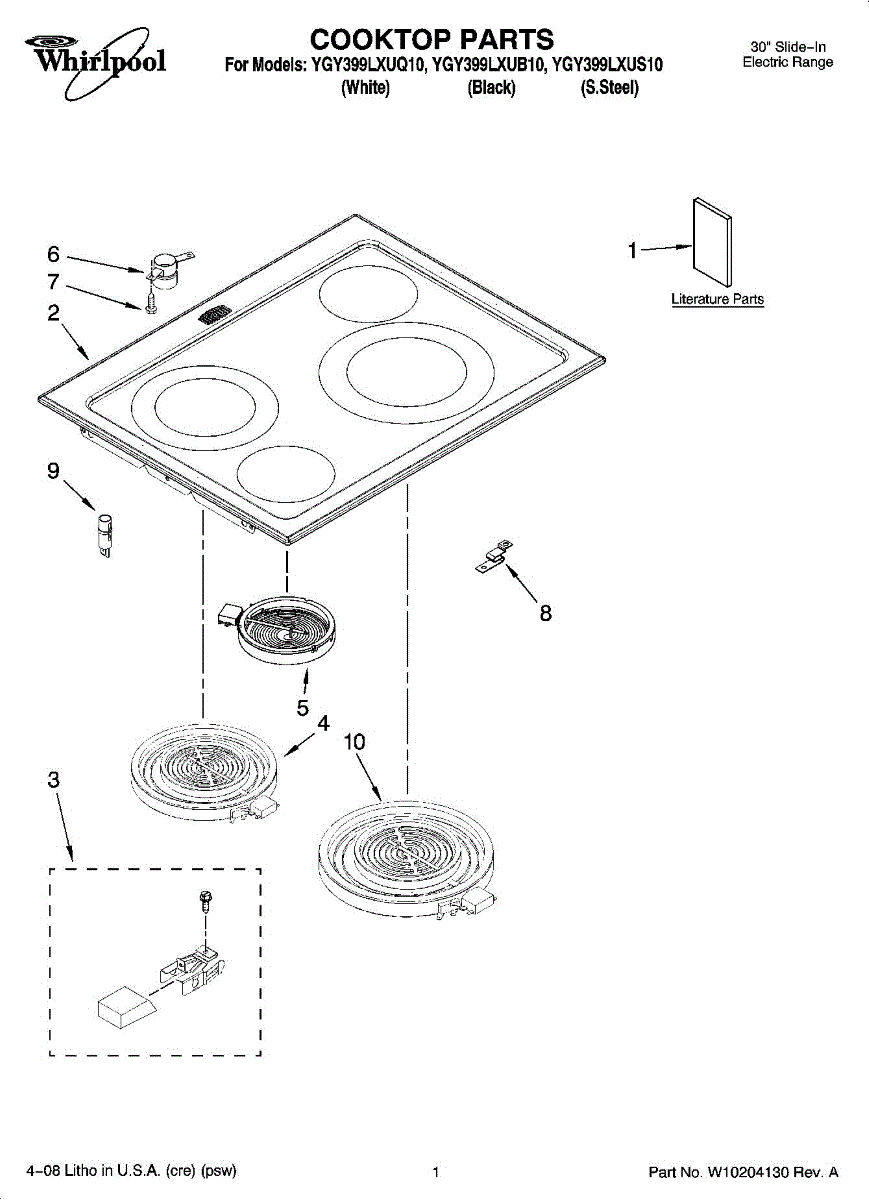

Parts for Whirlpool YGY399LXUS10: 01 - Cooktop Parts

Color: White

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

This surface heating element restores dependable heat on your electric range or cooktop. Replace a failed top burner to regain consistent boiling and simmering performance when one position stops heating, heats unevenly, or cycles unpredictably.

• Converts electrical power into heat for cookware on the cooktop
• Replaces a burned-out/open surface burner to restore normal operation
• Helps fix: no heat, intermittent heat, or uneven heating at a burner position
• Matches the original footprint and connections for proper fit and function

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; wear appropriate hand and eye protection
• Access the element per your service manual; note wire locations and transfer any mounting clips/brackets from the old part if present
• Seat terminals fully and secure the element before reassembly; test on low and high settings
