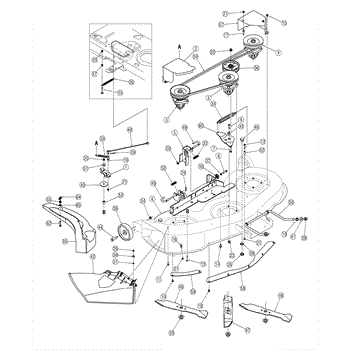

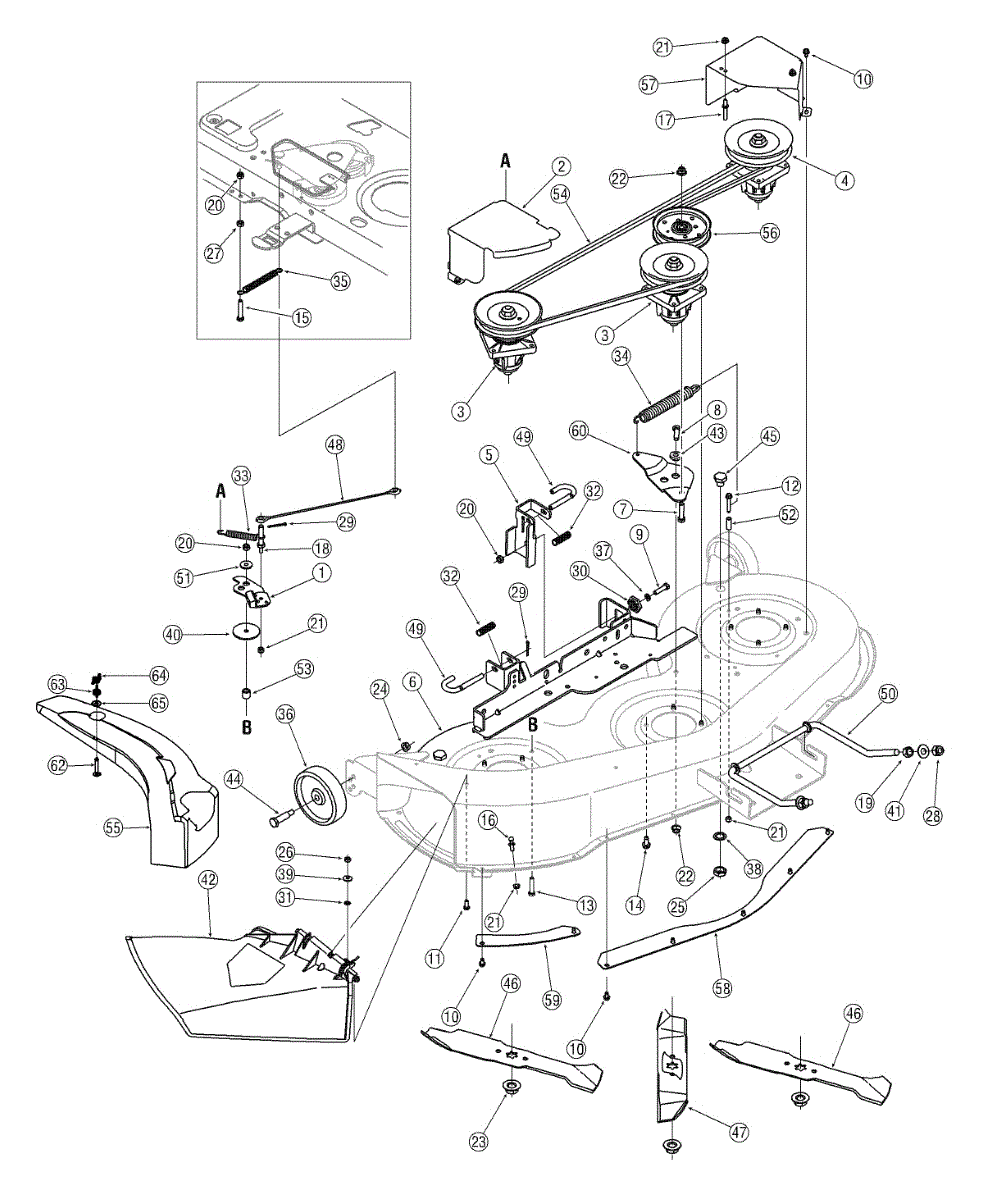

Parts for Yard-Man 13BT604H755 / 2005: Deck Assembly H Parts

This hex screw is a genuine MTD part, sold individually. This hex screw can be used as a replacement part lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers. The hex screw for one of these small engine outdoor appliances is used as a fastening component.The hex screw in a small engine outdoor appliance might have to be replaced if it is lost, misplaced, or damaged from general wear and tear with long-term use. If this occurs, the hex screw should be removed and replaced by this genuine OEM replacement part in order to guarantee safe use of the appliance.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This specific type of screw is most commonly found in different types of machinery and appliances. Screws are able to keep parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal wear and tear. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required in addition to a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

This genuine replacement pin is designed for use in select lawn mowers and tractors. The pin is part of the deck assembly and is used to hold the various components in place while allowing the appropriate movement so that the machine can operate properly. This pin is a durable metal part. However, it can wear out or break with regular use or due to an incident. If the pin becomes damaged or no longer works, or is lost, a replacement will be necessary.This genuine OEM pin is manufactured for use in machines from Cub Cadet, MTD, and others. It is sold individually and does not include additional parts or hardware. Owners will need a nut driver and screwdriver to replace this pin. The part is sold individually and additional hardware will require a separate purchase. This is an internal part that will require the unit to be completely cool before replacing. It will also be important to disconnect the power and wear gloves for safety when working in, near, or on the mower deck and its various components.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This hex nut is a genuine OEM replacement part sourced directly from the manufacturer. The hex nut is used in many different lawn and garden machines and in many different applications. Hex nuts are made to work with threaded parallel screws or bolts. Hex nuts are six-sided and require the use of a hex wrench to remove and replace them during repairs. Hex nuts, like other nuts and screws, may become loose or rusty over time due to normal wear and tear. If this happens, the parts being secured by the hex nut will not be secure and the hex nut should be replaced. During routine maintenance, all hex nuts should be checked to ensure they are tight and in good shape. If not, they should be replaced. When preparing to replace the hex nuts, count all the nuts needed and make sure to order enough. It is a good idea to keep extra hex nuts on hand for emergency repairs. This hex nut is a heavy-duty metal nut that is sold individually. It is designed to be used in many different lawn and garden machines manufactured by Craftsman, Yard Machine, and many other outdoor equipment manufacturers.

This replacement part is a plastic lawnmower wheel, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. These wheels are typically found in different types of lawnmowers. The wheels are attached to the deck of the lawnmower to prevent it from coming into contact with the ground. This allows easy maneuvering by the user of heavy machinery. A new lawnmower wheel might be needed if the current ones are damaged or broken in any way. Wheels are one of the most used parts of the lawnmower and easily become worn down over time. This is due to normal wear and tear. This wheel fits on the axle of the mower and is usually held in place by a bolt and locknut. Because of this, these wheels are easy to replace when using the correct tools. This part is compatible with different types of equipment made by MTD and is a genuine OEM replacement part.

This internal lock washer is a genuine MTD part, sold individually. This internal lock washer can be used as a replacement part for lawn mowers, snowblowers, tillers, and lawn tractors. The purpose of the internal lock washer is to stop the nut or bolt head from gradually coming loose over time.The internal lock washer is a small component that is easily lost or misplaced within the lifespan of a small engine outdoor appliance. If the internal lock washer becomes stripped over time or is subject to another form of damage that loosens or warps it, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This internal lock washer is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Yard Man, Yard Machines, Bolens, Toro, Ryobi, Troy-Bilt, Murray, Huskee, Montgomery Wards, and MasterCut.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This is an authentic OEM replacement flat washer that has been sourced directly from the manufacturer. It is used with bolts and screws for fastening components on various lawn and garden equipment parts. Flat washers spread the load of the bolt or screw or are used if the hole for the fastener is larger than necessary. The washer fills in the gap, making it more secure. Washers may also be used to prevent the bolt or screw from coming in contact with the component and creating heat or friction that could damage the part. Flat washers are found underneath the head of the bolt or screw, between the fastener and the connected component. Washers may rust or break over time. These changes are visible, and a replacement washer should be installed when necessary.The tools required to remove the bolt or screw depend on what type it is. Wear work gloves when removing and replacing parts. Broken or frayed metal edges can cut. Use the appropriate tool to loosen and remove the fastener. Slide the washer off and place the new one on. Reinstall the bolt or screw and tighten. The flat washer is made of durable metal and sold as an individual component. The flat washer is compatible with chippers, shredders, lawnmowers, tractors, blowers, and other lawn and garden tools manufactured by Craftsman, Bolens, Yard Machines, Troy-Bilt, MTD, Yard-Man, and more.

This deck wash plug is a genuine MTD part, sold individually. This deck wash plug can be used as a replacement part in a lawn mower. Functionally, the deck wash plug is a screw.The deck wash plug might need to be replaced if the small component is lost, misplaced, or stripped to the point that it cannot affix components to one another. If the deck wash plug is stripped from general wear and tear over long-term use, due to exposure to the elements, or after an accidental collision with a hard object, it should be removed and replaced by this genuine OEM replacement part. This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This deck wash plug is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Toro, Yard Machines, Yard Man, Huskee, Bolens, and MasterCut.

This replacement part is a bracket cable and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Bracket cables are an essential part of many lawn mowers and are responsible for helping the user start and stop the appliance. A new bracket cable might be needed if the current one is damaged or broken in any way. This part is heavily used during operation so it is common for it to be replaced. Be sure to reference the specific owner's manual for more detailed instructions on how to replace this part. This repair is fairly simple and will only require common household tools like a screwdriver to complete. Be sure to wear work gloves when completing this repair. This bracket cable is sold individually and is sourced directly from the manufacturer. This is an OEM replacement part and is suitable for many different types of appliances.

This part is a replacement rod deck. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken rod deck in lawn tractors.The rod deck is essential to proper equipment functionality but is also subject to wear and tear. If this part becomes rusted, corroded, bent, dented, or ineffective in any way, it should be replaced with a genuine OEM part. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this rod deck, the appropriate owner's manual and equipment diagrams should be referred to. This rod deck is a genuine OEM part made of durable metal and is sold individually. It is suitable for use with lawn tractor models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in a lawnmower. The purpose of a spacer in a lawnmower is to attach to the deck shell and create a space between one or more components such that friction can be reduced during use.The spacer in a lawnmower is a small fastening component that can be easily lost or misplaced; additionally, the spacer can be damaged during the standard lifespan of the lawnmower that can render it beyond functionality. If the spacer is lost or misplaced, or if the spacer is punctured, dented, warped, eroded, or otherwise damaged, the spacer should be removed and replaced by this genuine OEM replacement part as soon as possible. A replacement will ensure that the appliance continues to function as usual.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, Ryobi, Bolens, Yard-Man, Cub Cadet, and Husky.

This mulch plug is a genuine MTD part, sold individually. This mulch plug can be used as a replacement part in a lawn mower. The purpose of the mulch plug for the lawn mower is to mulch the grass clippings assembled into the grass catching bag during the operation of the lawn mower so that the mulch can be spread across the lawn or garden surface with the intent of keeping the greenery healthy.The mulch plug in a lawn mower might have to be replaced if it suffers damage to the point that the grass clippings cannot be finely chopped into mulch. This could occur if the mulch plug is punctured, scraped, dented, cracked, warped, or eroded. If this occurs, the mulch plug should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This mulch plug is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Montgomery Wards, and Yard Man.

This replacement part is a deck skirt. This is a genuine replacement part made by MTD. This part is commonly found in lawn mowers and is responsible for keeping the middle part of the deck area clear of flying debris. A new deck skirt might be needed if the current one is missing or damaged in any way. This can include being dented, cracked, bent, or chipped. This part can experience this type of damage over time due to normal wear and tear. This repair should be simple and fairly quick. A screwdriver and possible pliers will be required and work gloves are recommended before beginning. This part is sold individually and is sourced directly from the manufacturer. This deck skirt is a genuine OEM replacement part to ensure proper fit and long-lasting use.
