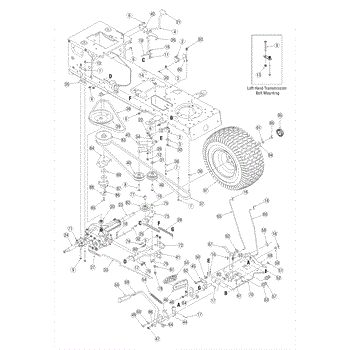

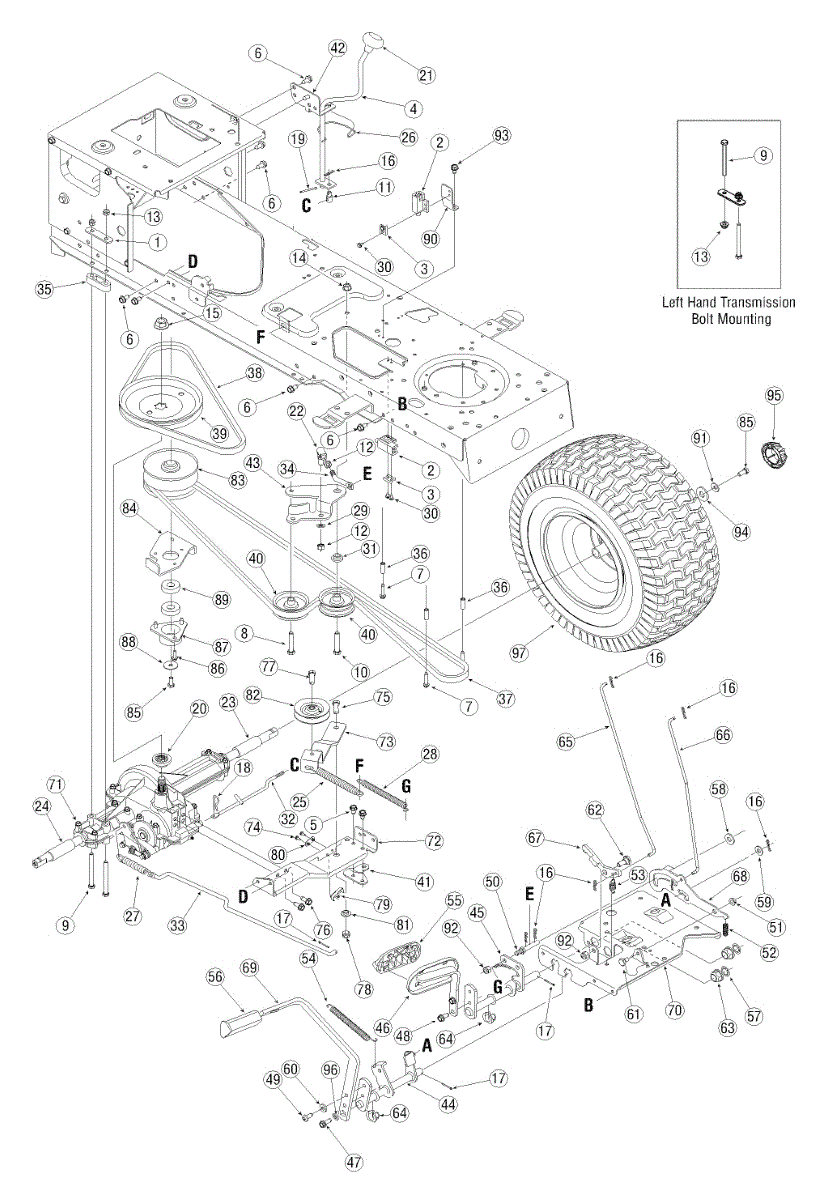

Parts for Yard-Man 13BT604H755 / 2005: Drive Parts

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This tap hex screw is a genuine MTD part, sold individually. A tap hex screw can be used as a replacement part for outdoor appliances including lawn mowers, tillers, and edgers. This is a small fastener.The tap hex screw for one of these outdoor appliances might be subject to damage or to a loss or misplacement that can necessitate the full replacement of the screw. Refer to the manual for detailed instructions.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This tap hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This shift knob is a genuine MTD part, sold individually. A shift knob can be used as a replacement part in a lawn mower or a tiller. This genuine OEM part is made out of high quality, durable metal material that is built to last for the typical lifespan of the appliance.The shift knob in a lawn mower or a tiller might need to be replaced if it ceases to perform its central function for the appliance. This could occur if the shift knob has suffered damage from general wear and tear over long-term usage or as the result of a direct impact collision with a hard object, such as a rock or a curb.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This shift knob is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This spring clip is a genuine MTD replacement part for lawn tractors and lawnmowers. The function of a spring clip is to fasten individual components together by maintaining spring tension. This spring clip is a metal part that most commonly clips the frame of the lawnmower or tractor to the deck.A lawnmower or lawn tractor spring clip might have to be replaced if there is damage to the part that loosens the spring tension and releases the components that it is meant to clamp together. If the spring clip is damaged, it must be removed and replaced immediately, as all components of the lawnmower or lawn tractor must be held together to ensure safe appliance use. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This spring clip is compatible with the following brands: MTD, Yard Man, Troy-Bilt, and Yard Machines. This part sold individually.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in a lawnmower. The purpose of a spacer in a lawnmower is to attach to the deck shell and create a space between one or more components such that friction can be reduced during use.The spacer in a lawnmower is a small fastening component that can be easily lost or misplaced; additionally, the spacer can be damaged during the standard lifespan of the lawnmower that can render it beyond functionality. If the spacer is lost or misplaced, or if the spacer is punctured, dented, warped, eroded, or otherwise damaged, the spacer should be removed and replaced by this genuine OEM replacement part as soon as possible. A replacement will ensure that the appliance continues to function as usual.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, Ryobi, Bolens, Yard-Man, Cub Cadet, and Husky.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This screw is a genuine MTD part, sold individually. This screw can be used as a replacement part in lawn mowers, lawn tractors, chipper shredders, and wood chippers. The purpose of the screw in one of these small engine outdoor appliances is to serve as a fastening component for one or more parts.The screw is a small component that can be easily lost or misplaced during use or maintenance. If the screw is lost at some point, it should be replaced by this genuine OEM replacement part. As a result of general wear and tear over long-term use, the screw can also be stripped or damaged to the point that it cannot serve its function of fastening one or more internal components of the appliance. If this occurs, the screw should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Ryobi, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, and Yard Man.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This replacement part is an extension spring, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. An extension spring, which can also sometimes be referred to as a tension spring, creates tension inside of the device and aids it in running smoothly and efficiently. A new extension spring might be needed if the user notices that the mower's engine is no longer working properly. If there are unusual noises coming from inside of the device, it's possible that the extension spring is malfunctioning. The spring can be stripped and snap over time. Always shut the engine down before attempting to replace any part of a lawn mower. This spring is a genuine OEM replacement part and is sourced directly from the manufacturer. This spring is sold individually so be sure to purchase the proper amount.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

The hex screw is a specialty screw that has various uses on lawn and garden equipment engines and housings. Over time, screws are known to become worn, corroded, lost, or otherwise damaged. This is an identical replacement that will have many locations and applications, but when it becomes damaged or gets lost it should be replaced as soon as possible. This is a specialty screw that is not designed for general use. Refer to parts diagrams for the appropriate location and installation of this screw for a guaranteed fit. This OEM hex screw is manufactured to exact standards and can be used in more than 150 different brands of machines. It is compatible with snow throwers, lawn mowers, and blowers from RYOBI, Yard Machines, Yard Man, Poulan, Troy-Bilt, MTD, Bolens, Cub Cadet, and Husky. This high-quality hex screw is made of metal and sold as an individual unit. Those who need more than one screw will have to purchase multiple quantities. A wrench is required to replace this screw. Always allow engines to cool completely before performing any repairs and wear gloves for hand protection.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

This part is a replacement bearing cup. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken bearing cup in lawn tractors.The bearing cup is what houses the variable speed pulley bearings themselves and thus is essential to proper equipment functionality. This part will need to be replaced immediately if ineffective in any way. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this bearing cup, the appropriate owner's manual and equipment diagrams should be referred to. This bearing cup is a genuine OEM part made of durable materials and is sold individually. It is suitable for use with tiller models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

A flat washer is used with many types of lawn and garden equipment, such as lawnmowers and log splitters. In many cases, the washer is used to hold a bolt in place on a blade. It will often be found between the blade surface and the bolt. The washer is flat with a center hole and ensures the main components of the equipment stay stable and held together when the machine is being used.Over time, the washers on lawn equipment can start to become damaged or break which can result in subpar performance. If a visual inspection shows that the flat washer has warped or is broken, it will need to be replaced. The process is fairly easy and will require nothing more than a screwdriver or socket wrench. The screw or bolt near the washer will need to be removed so the washer can be replaced.This washer is a genuine OEM replacement part that comes as an individual component sourced directly from the manufacturer. It fits lawnmowers, wood chippers, snowblowers, and log splitters by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Bolens, Ryobi, Montgomery Wards, Troy-Bilt, Huskee, Murray, MTD, and Yard Machines.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.
