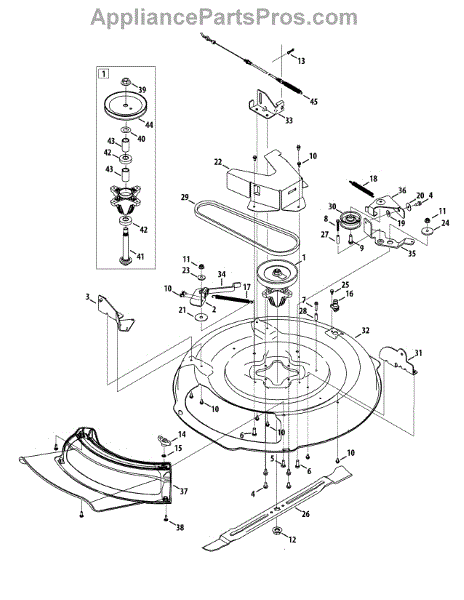

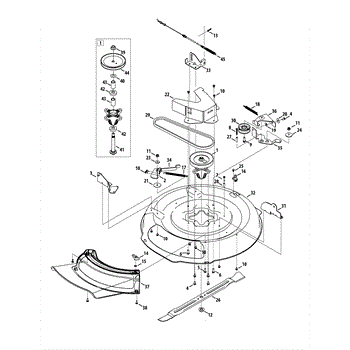

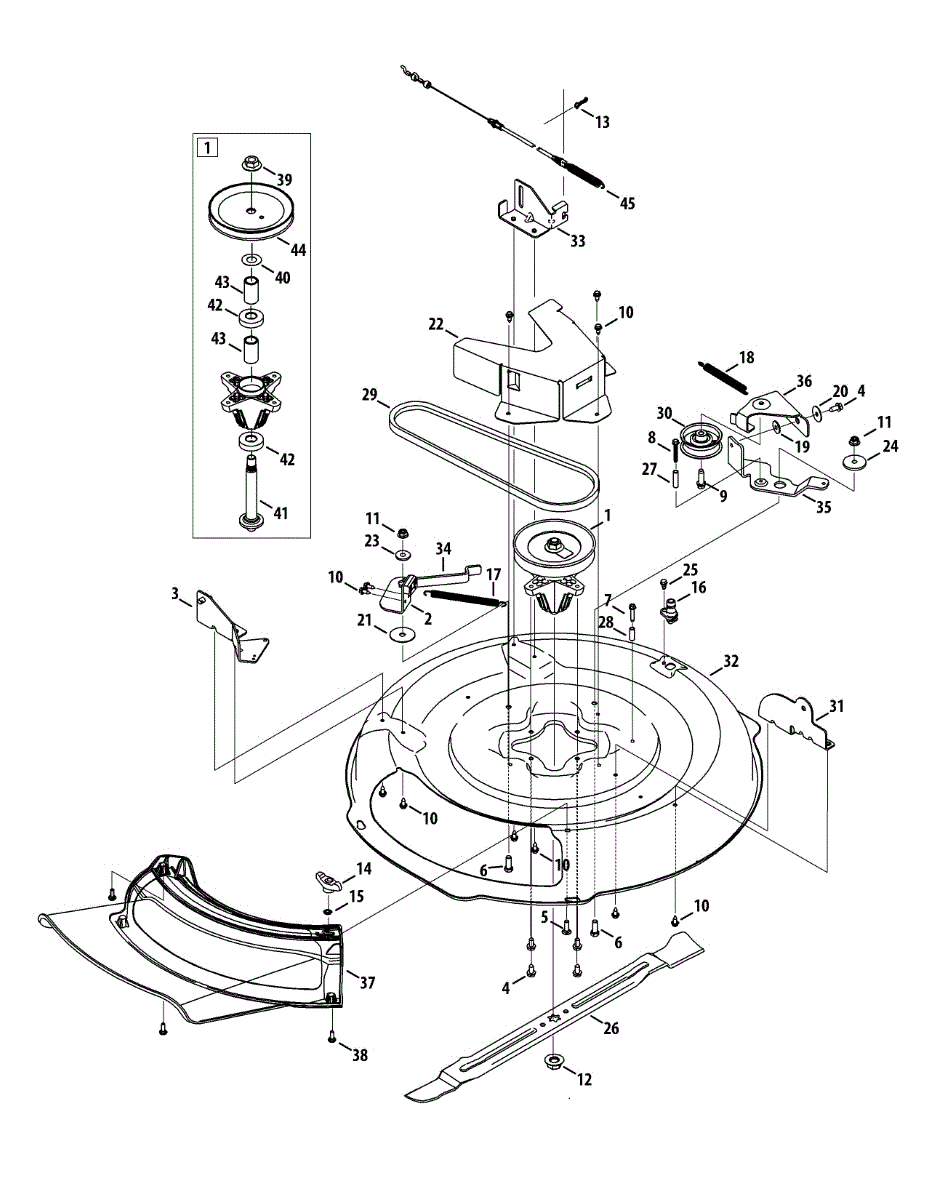

The Lawn Mower Spindle Assembly is an OEM part for MTD lawn mowers Located in the mower's lower deck, the spindle assembly connects the blade to the drive belt. This enables the mower to cut grass effectively. This assembly is comprised of an adapter and a spindle. It gets activated as a pulley spins the drive belt. While designed to withstand minor impacts, larger or harder objects may cause damage. Damage can lead to blade misalignment or detachment.
You should replace the spindle assembly if it becomes damaged due to impacts with rocks, roots, or other hard objects, or if it wears out over time from regular use. A faulty spindle assembly can lead to uneven cuts, excessive vibration, and potential damage to other mower components.
Symptoms of a bad spindle assembly include:
This OEM part is compatible with various brands under MTD, including Cub Cadet, Troy-Bilt, Yard Machines, Bolens, and some Craftsman models.
The Hex Head Self-Tapping Screw is an OEM part for MTD outdoor power equipment. This screw is designed to securely fasten components of your equipment, providing reliable and durable connections. The thread size is 5/16 inches for major diameter, with 18 threads. The screw is 3/4 inches long and has a hexagonal or six-sided head.
Over time, the Hex Head Self-Tapping Screw can become damaged due to corrosion, stripping of the threads, or wear from frequent tightening and loosening. This can compromise the integrity of the connections and potentially lead to equipment malfunction.
Symptoms of a bad Hex Head Self-Tapping Screw include:
This OEM replacement part is designed for use with various models of MTD outdoor power equipment.
This is a genuine replacement part designed for select lawn mowers and snowblowers. The carriage screw is responsible for securing various components on lawn tractors and snowblowers and has multiple locations and applications on different models. There is a square piece under the head that will fit into a square hole to secure the screw so that the nut can be tightened. This screw can become damaged over time or the threads can wear down with regular use. In some cases, these small screws are lost in the process of performing other repairs. A replacement with this genuine OEM carriage screw can get equipment back in working order. This OEM replacement screw is manufactured to exact standards by MTD. It can be used on hundreds of lawn mowers and snowblowers, including those from MTD, Craftsman, Yard Man, Troy-Bilt, Bolens, Yard Machines, Husky, and Cub Cadet. Since this part has multiple applications, users should refer to parts diagrams for exact location and replacement procedure. This durable screw is made of high-quality metal and sold as an individual unit. Those who need more than one will have to purchase multiple quantities.
This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.
This replacement part is a hex screw. This is a genuine replacement part made by MTD. This specific type of screw is most commonly found in different types of machinery and appliances. Screws are able to keep parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal wear and tear. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required in addition to a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.
This is a fully-threaded hex tap screw that can be used in a wide range of machines from many of the top brands making lawn and garden equipment. The screw is used to help fasten pieces of the machine together and to provide a tight connection. If the screw is damaged in some way or is missing, it can cause a range of problems in the machine. Problems with the screw might cause the machine to not hold together properly. It could cause added vibration in the machine.The hex tap screw is made from metal and it should last for a long time without needing to be replaced. However, problems can happen. The head could become damaged and difficult to turn, which will require a replacement before the problem worsens. The threads could be stripped, or the screw could have become corroded. It might also be lost and will need to be replaced.The hex tap screw can work with machines from Craftsman, Ryobi, Bolens, Troy-Bilt, MTD, Husky, Yard Machines, and Yard-Man. It is sold individually and is a genuine OEM replacement part.
This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.
This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.
This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.
The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.
A cotter pin, also known as a hitch pin, is used to secure pins and shafts in place. Meant for snowblowers, riding lawnmowers, and lawn tractors, this bow-tie shaped cotter pin has a double-end design making it easy to pull or push through either side of a pre-drilled hole. This pin snaps into a locked position without tension, keeping it secure during operation. Designed for lawn and garden maintenance equipment, this part ensures secure fastening. If the power equipment is used frequently, cotter pins may have to be replaced regularly so it would be practical to keep extra bow tie cotter pins on hand. It is highly recommended that work gloves be worn during the installation of this part. This part is compatible with Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut brands of lawn mower, snowblower, and log splitters. This is a genuine OEM replacement part that is sold individually.
A wing knob is an essential but often overlooked piece of equipment used on many gasoline-powered lawn tools. On snowblowers, this versatile connector is used to adjust the exit chute. The knob handle is easily gripped and made of durable plastic, so when wearing mittens or thick gloves, one can still grasp and turn the wing knob. On many lawn mowers, the wing knob is used to secure and adjust the handle to the mower or, with mowers that have folding handles, to lower and store the handle for ease of transporting the mower. While it does not seem that one would ever need to replace a wing knob, these fasteners may be lost when mowers are moved from one lawn to another or when the mowers are being stored until the next growing season. On rare occasions, the threads in a wing knob can be stripped if they are not turned tightly enough when first fastened after unbending mower handles. These devices are inexpensive and virtually universal, so it is wise to keep an extra wing knob on hand in case one becomes lost. The wing knobs fit Yard-Man, Troy-Bilt, Craftsman, Bolens, and Yard Machine mowers and snowblowers. Made of durable plastic, these OEM knobs are genuine manufactured replacement parts that perfectly match the originals.
Usually ships within 4 - 14 days
This is a replacement extension spring designed to work with the brake rod on select models of lawn tractors. The brake rod extension spring is used to apply tension between the deck brake bracket and the brake rod. It also secures the bracket in place when the brake is off. The part is subject to repetitive motion, which can cause it to wear out over time. The spring can become worn or break entirely, causing a need for a replacement.Using a genuine OEM replacement part like this extension spring will be necessary to ensure proper operation. This part is made to exact standards by Craftsman and is compatible with lawn tractors manufactured by Craftsman, Troy-Bilt, and MTD. It is important to use caution when working with the extension spring as parts are under high pressure and can cause injury. Wear gloves to protect the hands and ensure that the engine is cool before performing any repairs. This spring is sold as an individual part and does not include any additional hardware or components.
This replacement part is an extension spring intended for use in lawn equipment. This is a genuine replacement part made by MTD. Extension springs are responsible for applying tension to the guard which then retracts the spring. This is just one part in lawn mowers that allow the entire machine to operate properly and efficiently.A new extension spring might be needed if the current one is damaged or broken in any way such as being dented or snapped. The user might be able to tell when the extension spring is malfunctioning if there are noises coming from the machine that are not typical. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. It is recommended that the user refer to the appliance manual for more detailed instructions on how to install this part. This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn equipment made by MTD.
This replacement part is a bushing washer. This is a genuine replacement part made by MTD. Washers work with other small parts like nuts and screws to hold certain pieces in place. This allows for the engine to run smoothly and efficiently. A new bushing washer might be needed if the current one is missing or damaged in any way. This can include being dented, bent, or cracked. Washers can become worn down due to normal wear and tear over time. This is caused by friction inside of the engine. Refer to the user manual for more specific instructions on how to replace this part. This bushing washer is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer for long-lasting use.
A flat washer is used with many types of lawn and garden equipment, such as lawnmowers and log splitters. In many cases, the washer is used to hold a bolt in place on a blade. It will often be found between the blade surface and the bolt. The washer is flat with a center hole and ensures the main components of the equipment stay stable and held together when the machine is being used.Over time, the washers on lawn equipment can start to become damaged or break which can result in subpar performance. If a visual inspection shows that the flat washer has warped or is broken, it will need to be replaced. The process is fairly easy and will require nothing more than a screwdriver or socket wrench. The screw or bolt near the washer will need to be removed so the washer can be replaced.This washer is a genuine OEM replacement part that comes as an individual component sourced directly from the manufacturer. It fits lawnmowers, wood chippers, snowblowers, and log splitters by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Bolens, Ryobi, Montgomery Wards, Troy-Bilt, Huskee, Murray, MTD, and Yard Machines.
This part is a blade belt drive cover that is used on lawnmowers. The purpose of this component is to cover the drive belt area. Never perform care and maintenance on outdoor power equipment that is powered on.A new blade belt drive cover may be needed if the original is cracked, broken, or damaged in any way. This component may become broken if it comes into direct impact with a hard object. Over time, this component could be damaged so that it requires a replacement due to normal wear and tear. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This blade belt drive cover is a genuine MTD part. It is sold individually. This particular blade belt drive cover is compatible with lawnmowers that are manufactured by MTD, Craftsman, and Troy-Bilt.
This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in a lawnmower. The purpose of a spacer in a lawnmower is to attach to the deck shell and create a space between one or more components such that friction can be reduced during use.The spacer in a lawnmower is a small fastening component that can be easily lost or misplaced; additionally, the spacer can be damaged during the standard lifespan of the lawnmower that can render it beyond functionality. If the spacer is lost or misplaced, or if the spacer is punctured, dented, warped, eroded, or otherwise damaged, the spacer should be removed and replaced by this genuine OEM replacement part as soon as possible. A replacement will ensure that the appliance continues to function as usual.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, Ryobi, Bolens, Yard-Man, Cub Cadet, and Husky.
This part is a ground drive belt that is used on lawn tractors. A ground drive belt connects the engine crankshaft pulley to the transmission pulley. A new ground drive belt may be needed if the lawn tractor wheels will not turn. If the ground belt drive becomes ripped, torn, or damaged in any way, it will need to be replaced to ensure optimal operation of the lawn tractor. A 5/8-inch socket and pipe wrench will be needed to replace the ground drive belt. Allow the lawn tractor to fully cool prior to attempting any repairs or replacements. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This ground drive belt is a genuine MTD part. It is sold individually. This specific ground drive belt is compatible with lawn tractors that are manufactured by MTD, Craftsman, Yard Machines, and Troy-Bilt.
This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.
This idler bracket is a genuine MTD part, sold individually. An idler bracket can be used as a replacement part in a lawn mower. This genuine OEM part is made out of high quality, durable metal material; it is meant to secure the idler arm and its associated components within the idler mechanisms of the lawn mower.If the idler bracket has been detached from the appliance or if it has been otherwise punctured, dented, cracked, warped, or corroded over time, it should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This idler bracket is compatible with the following outdoor appliance brands: MTD and Craftsman.
This is an upper floating idler bracket that is used in several models of lawn tractors. This part is located on the deck and holds the idler pulley in the correct position. The upper floating idler bracket is also responsible for providing the right amount of tension to the blade belt so the lawn tractor operates correctly. In some cases, the idler bracket may break or become lost and it will need to be replaced.A socket wrench and screwdriver will be needed to replace the upper floating idler bracket from the lawn tractor. A pair of work gloves will also be useful. Make sure the tractor is on a level surface and turned off. Disconnect the spark plug wire before removing any covers or shrouds that are on top of the idler bracket. The original damaged idler bracket should be removed before installing the new part. Reassemble the rest of the tool before use.This upper floating idler bracket is sold on an individual basis. It is an authentic OEM replacement part that is sourced directly from the manufacturer. The part is designed to be compatible with lawn tractors by MTD and Troy-Bilt.
This is a flat washer that can be used with bolts and screws on many kinds of lawn and garden equipment. Before a bolt can be fastened to a surface, a fastener needs to be inserted through the end. A washer can be used with these items to help distribute the load. Washers are also responsible for decreasing heat and friction while a fastener is tightened to a surface. Washers can also be used to offer electrical insulation or operate as spacers.Even though washers are made of durable materials, they can be damaged over time. If the shape of the washer is bent or cut in half, this indicates that it needs to be replaced. A socket wrench or screwdriver can be used to make the replacement. Remove the screw or bolt, remove the fastener, and add the washer to the fastener before it screws back in.This flat washer is a genuine OEM replacement part sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, and edgers by Craftsman, MasterCut, Cub Cadet, Turf King, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD. It comes as an individual part.
