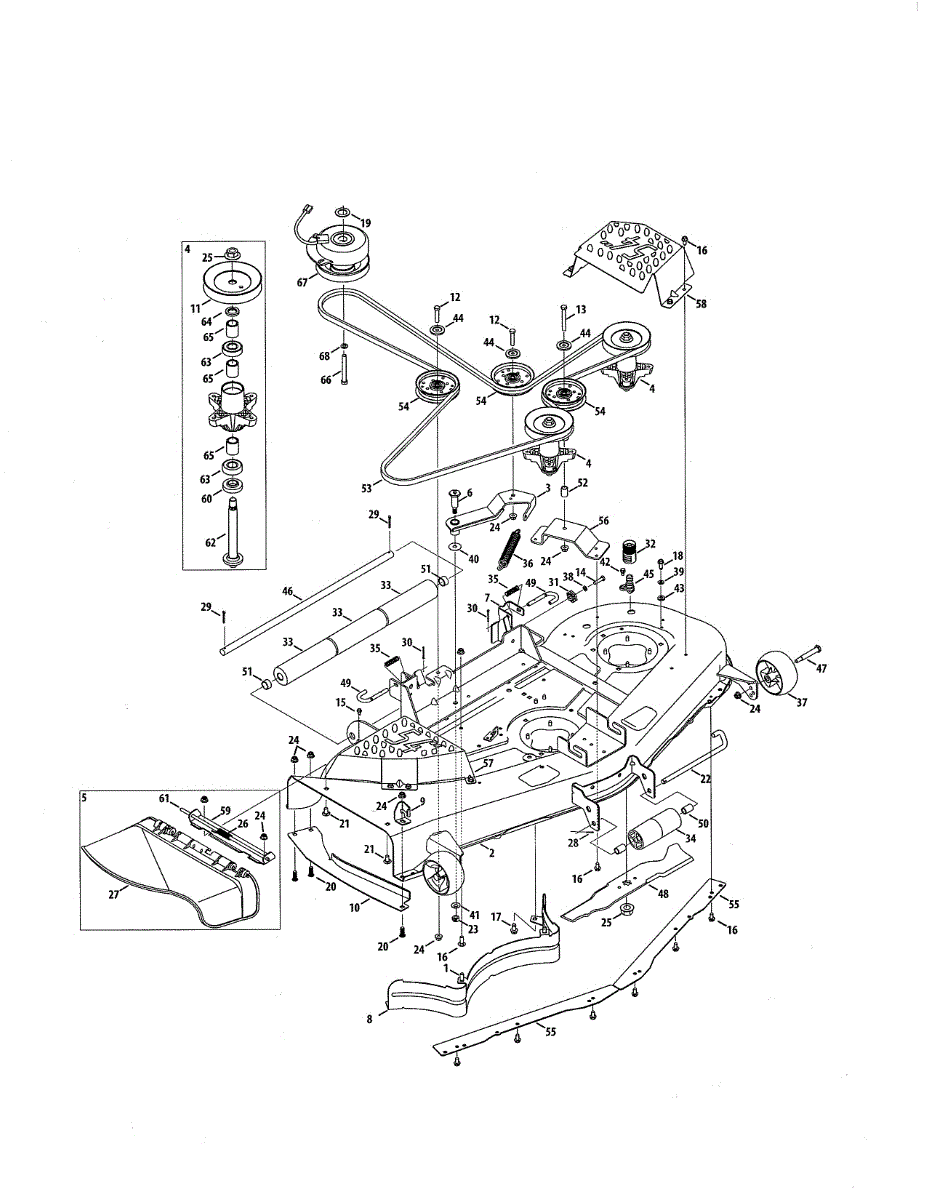

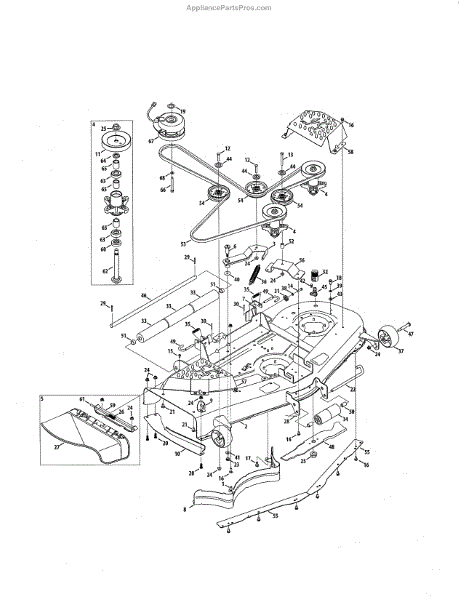

Parts for Mtd 17AF2ACK099: Deck / Spindle Pulley Parts

This replacement part is a bolt and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This bolt has many different uses and is a versatile part in lawn mowers and power tools. Bolts help other parts of the machine or appliance stay together and in place so that the entire machine is able to run smoothly. A new bolt might be needed if the current one is missing or damaged in any way. It is common for bolts to become stripped overtime due to normal wear and tear and need to be replaced. It's common for users to have some on hand so consider purchasing more than one. This repair should be simple and require no more than a screwdriver and possible pliers if the previous part is stuck. This bolt is sold individually and is a genuine OEM replacement part.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

The Hex Head Self-Tapping Screw is an OEM part for MTD outdoor power equipment. This screw is designed to securely fasten components of your equipment, providing reliable and durable connections. The thread size is 5/16 inches for major diameter, with 18 threads. The screw is 3/4 inches long and has a hexagonal or six-sided head.

Over time, the Hex Head Self-Tapping Screw can become damaged due to corrosion, stripping of the threads, or wear from frequent tightening and loosening. This can compromise the integrity of the connections and potentially lead to equipment malfunction.

Symptoms of a bad Hex Head Self-Tapping Screw include:

• Loose or wobbly components
• Difficulty tightening or loosening the screw
• Visible damage or corrosion on the screw

This OEM replacement part is designed for use with various models of MTD outdoor power equipment.

This replacement part is a hex screw. This part is small but important in many different kinds of machinery. Screws secure components within the equipment.Over time, screws can become stripped or corroded, causing them to break or get stuck in place. Excessive vibration during the use could also eventually lead to a screw coming loose and being lost.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This replacement part is a flat washer, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. A flat washer is found in many types of appliances and machinery in general. Typically washers are used to increase the size of any screw's bearing surface area. This in turn reduces the surface pressure applied on the object and allows the entire machine to run smoothly and efficiently. A new washer might be needed if the user notices that the current ones are damaged or missing. Because pressure is often put on the washers it is common that they become stripped overtime. Be sure to purchase the correct amount as many different machines require more than one washers. Be sure to reference the owner's manual for more specific information on how to replace the parts. This is a genuine OEM replacement part sourced directly from the manufacturer and is sold individually.

This carriage bolt is a genuine MTD part, sold individually. This carriage bolt can be used as a replacement part in a variety of small engine outdoor appliances including lawn mowers, snowblowers, and chainsaws. The purpose of the carriage bolt for one of these outdoor appliances is to work in conjunction with a nut as a fastening component to affix metal to metal or metal to wood so that the parts remain attached to one another while the appliance is in operation.The carriage bolt in an outdoor appliance is a small component that can be easily lost or misplaced or can be damaged through general wear and tear over long-term use or as the result of an accidental collision with a hard object. If the carriage bolt is lost, misplaced, or sufficiently damaged as to not maintain the stable attachment of two or more components, the carriage bolt should be replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This carriage bolt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Yard Man, and MasterCut.

This genuine part is a MTD .5 inch pin roller for tractors and riding lawn mowers. This is also known as a pin roller or a deck roller rod. This pin roller is used as an axle for the roller on the front edge of the mower deck, and holds the deck roller between the brackets. The roller pin is inserted through the roller rod, which is then secured by two brackets. This part is a replacement for a MTD .5 inch pin roller that is damaged, faulty, or missing. This high quality OEM replacement part is sourced directly from the manufacturer, and is sold individually. This part fits a variety of models of MTD, Craftsman, Cub Cadet, Troy-Bilt, White Outdoor, Yard Man, Yard Machines Tractors and riding lawn mowers. For safety, please refer to the original instruction manual and wear gloves when installing this part, as there is risk to the hands when performing this installation. Do not attempt to drill out a broken roller pin, as it may cause damage to the equipment.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This replacement part is a torsion spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This spring is found in different types of lawn mowers and is able to assist other parts working together to allow the engine to run properly and smoothly. Though this spring is small it is an important part of many machines.A new torsion spring might be needed if the current one is damaged or missing. Because of the nature of the spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual noises may come from inside the machine if the torsion spring is not working properly. This torsion spring is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

A cotter pin is a standard piece of hardware typically used on lawn and garden equipment as a method of securing something to an axle or round shaft. These pins are thin and, although they are durable, they can rust or become damaged over time. In some instances, they can break off or become lost in the process of other repairs. A replacement with the right size and style of cotter pin will ensure that equipment is in working order at all times. This genuine OEM cotter pin replacement can be used with select lawn and garden equipment from MTD, Huskee, Yard Man, Yard Machines, Troy-Bilt, Bolens, Cub Cadet, and Murray. It can be used on lawn tractors, log splitters, chipper/shredder units, and snowblowers. There are more than 150 compatible units, so owners should consult their parts diagram for application(s) of this pin. Note that this pin may have multiple applications on a single machine. This cotter pin is sold individually and may require needle nose pliers to replace.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

This part is a deck roller that is used on lawnmowers and lawn tractors. A deck roller is located on the deck of the lawnmower or lawn tractor and keeps the lawnmower from gouging the ground or from scalping the grass on uneven or sloped terrains.A new deck roller may be needed if the original is cracked, broken, missing, or damaged in any way. If the operator notices that the grass is being cut unevenly or if the lawn mower is scalping the grass, this is likely because the deck roller is not working properly or is missing. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This deck roller is a genuine MTD part. It is sold individually. This particular deck roller is compatible with lawnmowers and lawn tractors that are manufactured by MTD, Troy-Bilt, and Cub Cadet.

This is a replacement lawn mower deck roller supplied directly from the manufacturer. Deck rollers are used to move the mower deck up and down while mowing. These will keep the deck in the correct position when mowing over uneven terrain. The deck rollers need to be kept at the right height as not to damage the grass.The best way to replace the rollers is to remove the deck itself. This will allow better access to the rollers and make them easier to remove. Depending on the model, they will only be held on with a couple of bolts. Remove the old roller and install the new one. Check the brackets and make sure they aren't worn and need to be replaced as well. The lawnmower deck roller is a genuine OEM replacement part. It is designed to be used with Craftsman, Troy-Bilt, Cub Cadet, MTD, Yard Man, and any mower needing roller # 731-05679B.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or lost flat washer in outdoor power equipment.Flat washers are a standard piece of hardware that can be used on many types of equipment. They enable screws or bolts to tightly fix components together by providing a larger bearing surface. Lost or defective washers should be replaced. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular flat washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This flat washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This cap pulley is a genuine MTD part that is manufactured for compatibility with lawn tractors. On a lawn tractor, the cap pulley, or pulley cap, along with the idler arm and idler arm spring, create tension on the deck drive belt which allows it to operate.It is normal for this cap to become worn over time. It is a relatively easy repair, but the deck of the mower must be removed. One of the biggest signs of a problem with the pulley is a squealing sound, although there may be no signs that it is wearing out until it breaks completely.This cap pulley is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is manufactured for compatibility with lawn tractors made by Bolens, Craftsman, Columbia, Huskee, Husky, Mastercut, MTD Gold, Murray, Yard Machines, and Yard-Man.

This is a genuine replacement shoulder screw that is compatible with select models of lawn tractors. The shoulder screw has multiple applications in lawn tractors, where it is typically used as some kind of axle for wheels or other components. Over time, this type of screw can become worn from repetitive motion or the threads can start to strip. If the screw fails or is unable to work effectively, it can affect whatever it is responsible for securing or holding, as well. This could result in the entire machine not working until a replacement is made. This is a genuine manufacturer's replacement manufactured by MTD. It is compatible with their lawn tractors as well as those from Yard Machines, Troy-Bilt, Yard Man, Husky, and Cub Cadet. The screw is made of durable metal and is sold as a single unit. This is considered specialty hardware and is also sometimes referred to as a shoulder bolt.

The spacer is a standard piece of hardware that is used on various lawn mowers. This spacer has multiple applications based on the model and design. It is typically installed on shafts and in places where an additional gap is needed between connections or hardware. These parts are durable, but can become damaged or worn over time and require a replacement. Without functioning spacers, parts may rub together and create friction or simply fail to work properly. Replacing parts with genuine OEM hardware like these standard spacers will get the equipment back in working order. This genuine OEM spacer is designed for use with a number of mowers from MTD, Yard Machines, Troy-Bilt, Husky, Cub Cadet, and Yard Man. This spacer is made of durable metal and sold as a single unit. Those who need more than one will have to order multiple quantities. Always wear gloves when performing lawn mower repairs.

The belt spindle, also called a v-belt, is compatible with a range of riding lawnmower models. This rubber composite belt fits over the spindle assembly and idler pulleys in the machine. Its purpose is to transmit force to the blades on the mower deck. If the belt is broken or otherwise not working properly, the blades will not spin, and the mower will not cut the grass.The belts are made from durable rubber, but they will still wear out over time and will need to be replaced. Owners will want to check the belt to see if it is worn down, so they can replace it before it breaks. Replacement of the spindle belt is not difficult but will require a wrench and a screwdriver. This belt spindle is for use with certain lawn tractors from MTD and Craftsman. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Because the belts will wear out over time and with repeated use, owners may want to buy several to have on hand for replacements.

This genuine OEM replacement 54-inch deck skirt is used on a riding lawnmower and tractor with a deck span of 54-inches. By installing a deck skirt, or baffle onto the mower, it will increase the airflow under the deck. The benefit of having better airflow is that it makes it easier for the grass and clippings to either be sucked into the bagger or to be better distributed as mulched across your lawn. Another benefit that adding a skirt to the mower's deck is that it will prevent grass from clumping and getting stuck to the bottom of the deck and clogging it up. On occasion, rocks and other debris shooting out of the mower's deck can cause the skirt to become damaged, and in some cases, it will need to be replaced. Installing the 54-inch replacement desk skirt is a fairly easy job and should be able to be accomplished by a beginner. The installation will require a socket wrench in order to bolt the skirting to the outside of the mower's deck. This 54-inch skirt deck is compatible with MTD, Troy-Bilt, Yard-Man. Craftsman, and Cub Cadet models. This replacement deck skirt is sourced directly from the manufacturer and is sold individually.

This replacement part is an idler pulley bracket. This is a genuine replacement part made by MTD. This part is found inside of machine connected to different types of pulleys. This ensures that the pulley is secure and connected to the correct parts so that the engine may run smoothly during use. A new idler pulley bracket might be needed if the current one is no longer staying attached in the correct way. It is common for this part to need replacing after normal use, as brackets can become worn down and begin to detach from the main area. This should be a simple repair and only require common household tools.This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This spindle shaft is a genuine MTD part, sold individually. This spindle shaft can be used as a replacement part in a lawn mower.The spindle shaft in a lawn mower might have to be replaced if it detaches from the appliance. If this occurs, the spindle shaft should be removed and replaced by this genuine OEM replacement part such that the operator can continue using the lawn mower as intended.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This spindle shaft is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, and Yard Man.

A ball bearing is a common type of rolling-element bearing. It will use balls to keep space between the bearing races and eliminate friction and contact between moving parts. Ball bearings used in lawn and garden equipment ensure that axial loads and radial loads are evenly supported and that there is only a limited amount of rotational friction on the component. It distributes weight evenly, but will undergo constant wear and tear from vibration, heat, and friction and will need replacement regularly. This ball bearing is a genuine OEM part suited to use in Craftsman, Cub Cadet, Ryobi, Troy-Bilt, MTD, Huskee, Yard Machines, Bolens, Mastercut, and Yard-Man equipment. It may be needed for repair work done on a lawnmower, snowblower, tiller, edger, or a log splitter.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.
