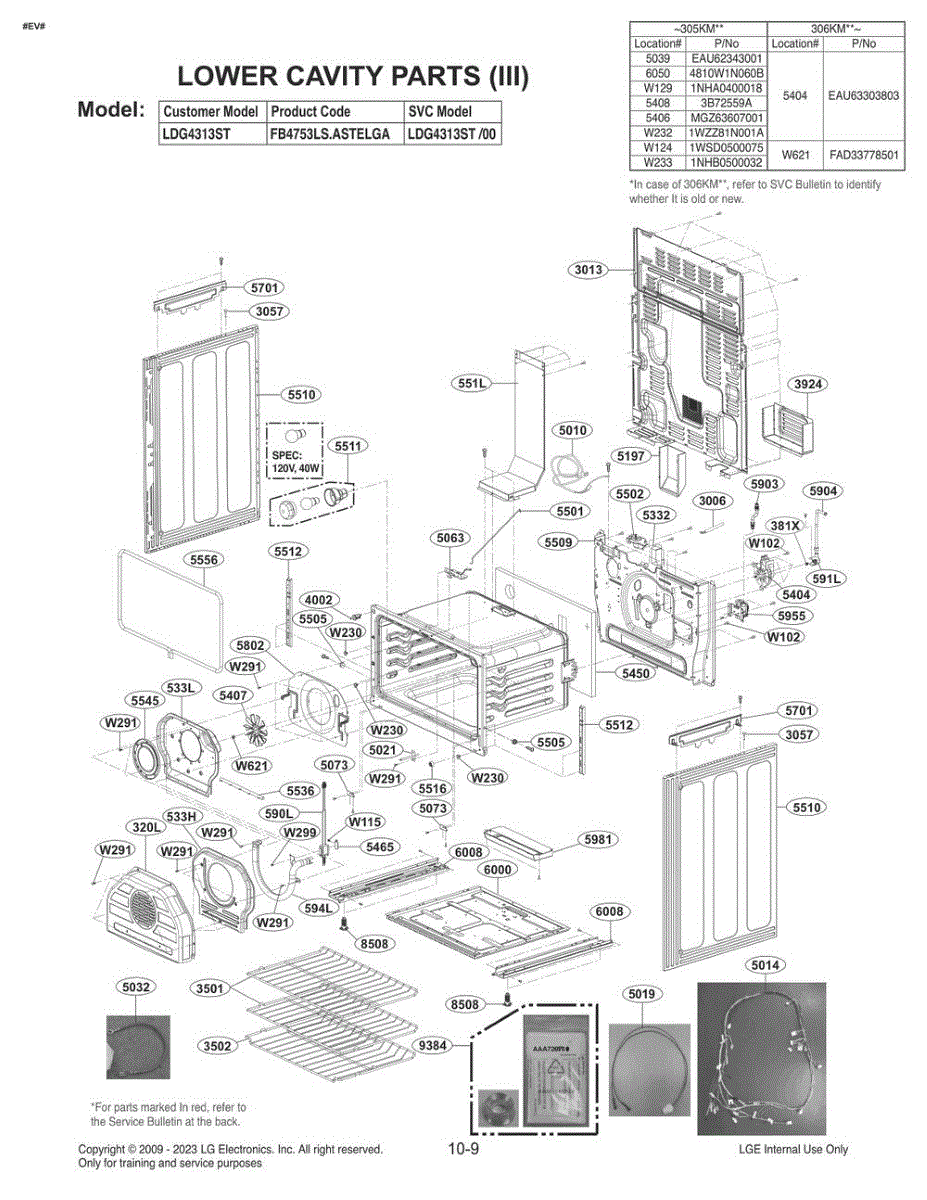

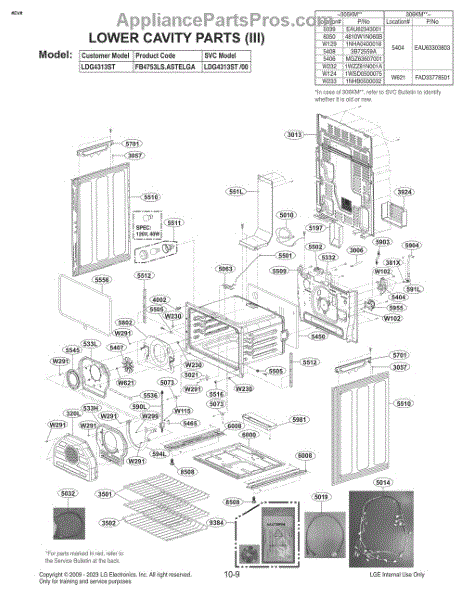

Parts for Lg FB4753LS: Diagram 7 Parts

Replace your damaged or broken range handle bar. This bar installs on the oven door, providing a secure grip for opening and closing. Order now.

This hinge bracket secures the oven door hinge mechanism on your range. Replace if the bracket is cracked, broken, bent, or missing to restore door support.

This replacement outer housing case provides a durable protective cover for internal components, restoring the appliance's exterior fit and protection. It helps maintain proper component alignment and prevents dirt and moisture from entering sensitive areas. What it does:

• Protects internal components and wiring from damage, dust, and moisture.
• Restores proper alignment and secure mounting for controls or assemblies attached to the case.
• Reduces rattles, vibration noise, or loose-feeling panels caused by cracked or warped housing.
• Helps prevent minor water intrusion into internal compartments when the original case is damaged.

• One replacement outer housing case

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Installation typically requires basic tools (screwdriver set); keep fasteners and trim in a safe place during removal.
• Handle the replacement carefully to avoid scratching or cracking the new case; ensure all clips and screw locations line up before final fastening.
• If seals, gaskets, or attached trim were removed, inspect and replace as needed for proper reassembly.

This is a replacement burner assembly for gas cooktop/range surface burners that restores proper flame and heating for normal cooking. It replaces a worn or damaged burner to help maintain even heat distribution. What it does:

• Houses the burner head and ports to direct gas for ignition and steady flame
• Replaces cracked, warped, or clogged burner components that can cause uneven heating
• Helps stop gas flow issues and unstable flames when used with a compatible ignition/spark system
• Restores proper fit and alignment on the cooktop for safe operation

• Turn off gas supply and unplug the appliance before starting any repair
• Remove burner grate and cap, then lift out the old assembly per your model's service instructions
• Use basic hand tools; ensure burner ports are clean and the assembly seats properly before testing
• If you smell gas or the burner doesn't light correctly after installation, stop.

This is the exterior side panel that attaches to the body of the range. It provides structural support and a finished appearance to the side of the appliance. Replace this panel if it is dented, scratched, rusted, or damaged during installation or use.

Replace your range oven light bulb when it burns out or dims. Restores interior visibility for safe cooking. Verify compatibility with your model number.

Wire harness for ranges. Connects electrical components inside your appliance. Replace if wires are damaged, frayed, or connectors are broken or melted.

This pipe is the factory-design tubing used to route fluids inside the appliance, restoring proper flow and containment. Installing the correct pipe helps stop leaks and re-establish reliable fluid transfer where the original line has cracked or failed. What it does:

• Channels water or drain flow between internal components to maintain normal operation
• Prevents leaks by replacing cracked, split, or brittle tubing
• Helps restore proper filling, draining, or circulation when the original pipe is damaged
• Reduces risk of water-related faults and intermittent appliance behavior caused by compromised tubing

• One pipe as shown

• Turn off and unplug the appliance and shut off the water supply before starting work
• Remove any clips or fasteners carefully; save or replace clamps as needed
• Use the exact part number to ensure fit; route the pipe the same way as the original to avoid kinks

Gas pipe that connects burner components in your range. Replace if cracked, corroded, or damaged to restore proper gas flow and safe operation.

Base plate for electric and gas ranges. Provides structural support at the bottom of the appliance. Replace if cracked, broken, or missing. Easy install.

Replace a damaged or missing motor cover on your gas range. This protective cover shields internal motor components from debris and damage.

This adjustable leg supports your range and allows you to level the appliance on uneven floors. It screws into the bottom corner of the range and can be adjusted up or down as needed. Replace this part if your range is wobbly, tilting, or sitting unevenly.

Idle packing bushing for electric and gas ranges. Replaces worn, cracked, or missing bushings. Ensures proper fit and cushioning for range components.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

Replace a broken or damaged motor bracket causing loose or misaligned oven fan motor. Straightforward repair that restores proper motor mounting and support.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Replace your range's wire harness if the existing wiring is damaged, frayed, or showing signs of wear. Connects electrical components inside your range.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Fix misaligned or wobbling burner flames with this nozzle holder. Secures the nozzle in place to restore proper gas flow and even heating on your range.

Secures the control panel to your range cabinet. Replace if the bracket is cracked, bent, stripped, or hardware no longer holds the console firmly in place.

A full-perimeter refrigerator door gasket that restores an airtight seal to help maintain proper cooling and reduce energy loss. Designed to replace a worn, cracked or torn door seal for reliable temperature control. What it does

• Seals the door to keep cold air in and warm air out, helping the appliance maintain set temperatures
• Common symptom: visible gaps, cracks, or tears in the gasket allowing cold air to escape
• Common symptom: excessive frost or condensation inside the compartment near the door
• Common symptom: refrigerator runs more often or works harder to maintain temperature
• Helps prevent food spoilage caused by inconsistent cooling when the original gasket fails

• One full-perimeter refrigerator door gasket

• High-level task: remove the old gasket and press the new gasket into the channel or attach per the manufacturer's method
• Gasket may require slight warming or alignment to seat evenly; follow OEM instructions for final fit
• Inspect mounting channel and clean surface before installation to ensure a proper seal
• Safety first: unplug the appliance before working on the door and take care not to damage trim or wiring

Fixes uneven rotation or component failure in your range. This synchronous motor assembly restores precise speed control. Moderate DIY repair.

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where a stripped, missing, or damaged screw causes loose parts or rattling. What it does:

• Fastens panels, trim, or internal components to maintain structural fit
• Helps stop vibration-related noise from loose assemblies
• Replaces missing or corroded screws that prevent proper closures
• Restores secure mounting after repairs or disassembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not over-torque to prevent thread damage
• Keep small parts away from children and pets
• Disconnect power or water before accessing internal parts

This heater cover protects the dryer heater assembly and helps direct airflow for proper heating performance. It replaces a cracked or damaged cover to restore safe operation and part alignment. What it does:

• Shields the heating element and internal components from debris and accidental contact
• Helps channel airflow through the heater for efficient drying
• Can prevent rattling or vibration caused by a loose or broken cover
• Common symptom: damaged cover may be noticed when replacing the heater or after impact/overheating

• Disconnect power before accessing the heater assembly; allow components to cool fully
• Follow the appliance service manual for disassembly/reassembly and use correct fasteners
• Inspect adjacent components (heater element, terminals, mounting clips) and replace if damaged

This genuine replacement power cord assembly restores electrical power to the appliance by replacing a damaged or worn main power cable. It provides a direct, factory-fit connection for safe, reliable operation. What it does

• Delivers mains power from the wall outlet to the appliance's internal wiring and control systems.
• Replaces frayed, cut, melted or otherwise damaged cords that can cause loss of power or intermittent operation.
• Helps eliminate burning smells, visible damage, or exposed wires that indicate a compromised power connection.
• Restores a secure plug and strain-relief connection to reduce stress on terminal connections.

• One power cord assembly.

• Always disconnect power at the breaker or unplug the appliance before starting any work.
• Verify correct cord routing and secure the strain relief/retainer to prevent pinching or chafing.
• Tighten terminal screws to the manufacturer's specification and ensure proper grounding.

Small fastening nut that secures components inside microwaves and ranges. Replace if worn, missing, or stripped to restore proper assembly fit.

This is an AC fan motor assembly used in the convection system of a range or oven. It drives the convection fan to circulate hot air evenly throughout the oven cavity for consistent cooking results. Replace this motor if your oven is not heating evenly, the convection fan has stopped spinning, or you hear unusual noises coming from the back of the oven during convection cooking.

Fixes weak or uneven flames on gas range burners. This nozzle meters fuel flow to each burner for balanced heating. Direct replacement part.

Fix uneven heating or a burner that won't ignite with this gas range surface burner assembly. Mounts under the cooktop for reliable flame control.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This bracket secures the turntable motor to the microwave oven cavity base, keeping the motor properly aligned so the glass tray can rotate smoothly for even heating.

• Supports and positions the turntable motor beneath the oven floor
• Helps resolve issues like a non-turning glass tray or jerky rotation
• May correct intermittent grinding or scraping noises from the tray area

• Unplug microwave before servicing; high-voltage components can retain a charge
• Remove the unit from its install location if required for bottom access
• Access turntable motor from the underside; support the cavity to prevent damage
• Reuse existing screws and motor unless otherwise specified

This factory accessory assembly replaces missing or damaged ancillary components on applicable appliances. Installing the correct assembly restores proper fit, securement, and appearance where your model specifically calls for this part.

• Provides the exact accessory components specified for your model
• Restores proper fit and secure mounting where originals are missing or worn
• Helps address looseness, rattling, misalignment, or cosmetic gaps in the affected area
• Direct, model-specific replacement for reliable installation

• Disconnect power; shut off water or gas supplies before servicing
• Follow your model's service or installation instructions for placement and fastener torque
• Handle plastic trims/tabs carefully and avoid overtightening
• Verify secure fit and test operation before returning the appliance to service

Replacement screw secures panels and components in your microwave. Install when original hardware is stripped, rusted, or missing to stop rattles.

Replace your burned-out or dim oven light bulb to restore interior visibility while cooking. Direct-fit incandescent lamp for safe food monitoring. Verify fit with your model number.

Replacement screw for electric and gas ranges. Secures panels, brackets, and internal assemblies. Restores tight fit when original is missing or stripped.

Pressure regulator assembly for gas ranges. Mounts to the gas supply line to control fuel pressure. Replace if cracked, leaking, or damaged.

Fixes uneven baking and longer cooking times in your range. This convection fan blade restores proper air circulation for consistent oven temperatures.

Fix unresponsive control panel buttons with this tactile switch replacement. Restores reliable button response. Simple DIY repair, typically under 5 minutes.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.
