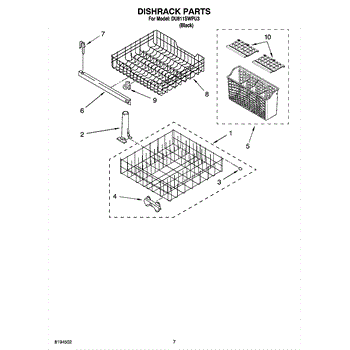

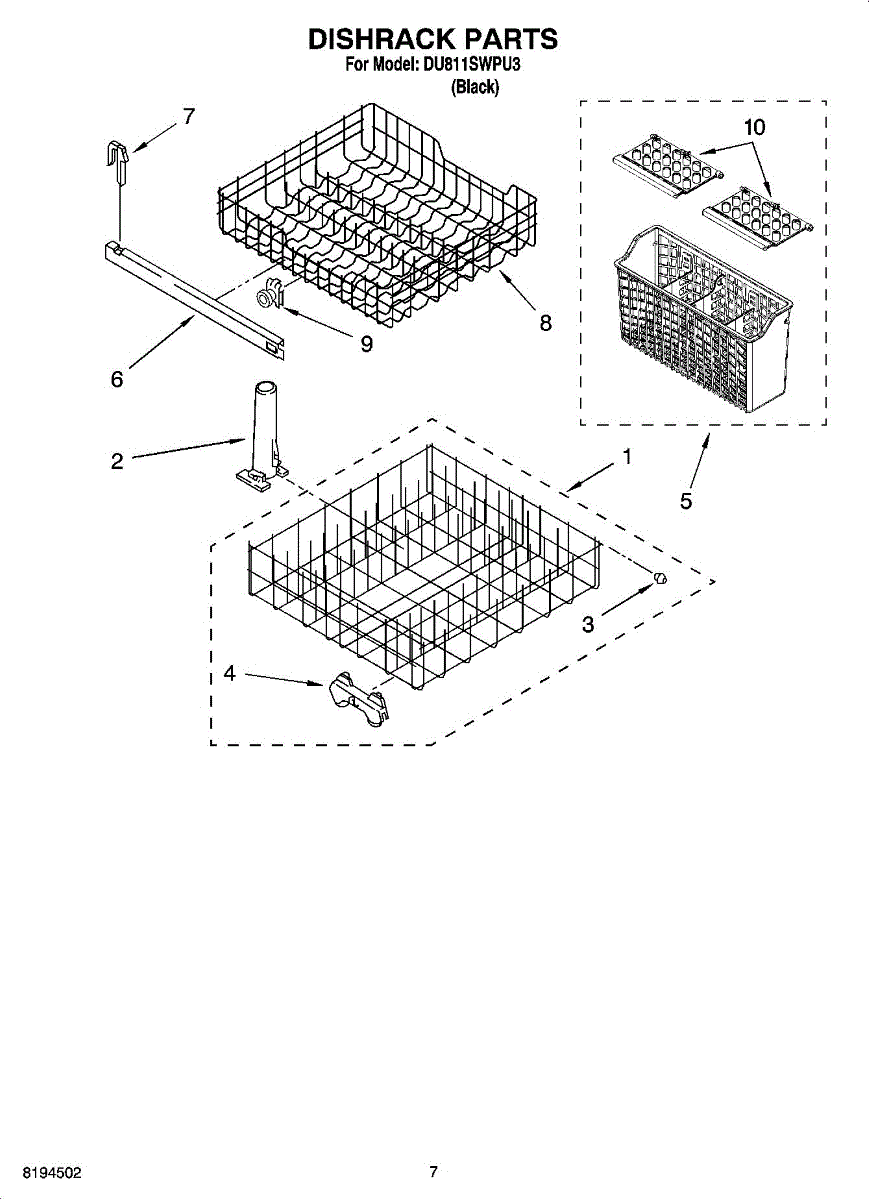

Parts for Whirlpool DU811SWPU3: 06 - Dishrack Parts, Optional Parts (Not Included) Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Dishrack is an OEM replacement part for Whirlpool dishwashers. It measures 21" wide x 21" deep. It provides a stable framework for organizing and holding dishes, glasses, utensils, and other items during the washing cycle. Designed to fit securely in the dishwasher, it ensures proper water flow and cleaning efficiency for all loaded items.

Causes of a bad Dishrack can include prolonged exposure to high temperatures and moisture, leading to rust or corrosion, damage to the coating from sharp utensils, or bending or breaking due to heavy or improperly loaded items. Over time, these issues can compromise its functionality.

Symptoms of a bad Dishrack include:

• Rust or peeling coating on the rack
• Broken or bent tines that can’t hold dishes properly
• Difficulty sliding the rack in and out of the dishwasher

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Plastic cover that shields the dishwasher spray tower. Replace if cracked, broken, or missing to prevent dishes from blocking the tower's spray outlets.

Protective rubber bumper for dishwasher dishrack. Installs on the outer front edge of the lower rack. Replace if cracked, broken, or missing.

Replacement wheel assembly for dishwasher lower rack. Snaps onto rack to allow smooth gliding along tracks. Replace if cracked, broken, or missing.

Color: white. Measures about 2-1/2 inches wide by 6 inches high by 10 inches deep.

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replaces cracked, broken, or missing dishwasher rack stop clips. Secures upper or lower dishrack to track rail, preventing rack from sliding out too far.

This dishrack replaces a damaged, rusted, or warped rack to restore smooth loading and secure support for dishes. A solid rack keeps items upright for better spray coverage, cleaner results, and helps prevent rust transfer and chipping.

• Holds and organizes plates, bowls, and cookware for proper spacing and spray access
• Provides stable support to reduce tipping and breakage during wash cycles
• Replaces racks with rust, broken wires, or bent/missing tines
• Can help resolve issues like rust marks on dishes and loading difficulties

• Disconnect power at the breaker before servicing
• Open the door; slide the old rack out—on some models, release rack stops to remove
• Transfer any reusable accessories from the old rack to the new rack if applicable
• Wear cut-resistant gloves; set the new rack on the rails and verify smooth movement and proper door closure

Replace cracked or broken dishwasher rack roller axle assemblies. Installs on upper or lower dish racks to restore smooth gliding. Includes clips.

This top-load washer lid replaces the machine's top access cover to restore a secure, finished appearance and proper closing action. It helps keep laundry inside the tub and prevents moisture, lint, and debris from entering when the washer is in use. What it does:

• Replaces a cracked, dented, or warped top lid to restore proper sealing and user access
• Provides the flat, finished surface that the latch and hinges engage for safe operation
• Helps stop drafts and keeps lint, dust, and small items out of the wash tub
• Reduces noise and vibration caused by damaged or loose tops

• Installation requires removing the old lid and fastening this lid to the existing hinge assembly; verify hinge compatibility before installing
• Disconnect power to the washer and unplug it before performing the repair to avoid electrical shock
• Use proper hand tools and support the lid during removal/installation to prevent dropping or damage
• If the lid latch, hinge, or trim is damaged, inspect and replace those parts separately as needed

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White.

Color: Almond.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Color: White. Size: 13 oz. Spray paint primer. can.

Touch-up paint for repairing chipped, scratched, or rusted dishwasher racks. Brush-on formula restores appearance where coating is worn or missing.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Grey vinyl touch-up paint for repairing chipped, rusted, or damaged dishwasher rack coating. 4oz bottle with brush. Restores protective coating.

Gray protective caps cover damaged or rusting dishwasher rack tine tips. 125-pack slides over worn tine ends to restore your dishrack and protect dishes.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
