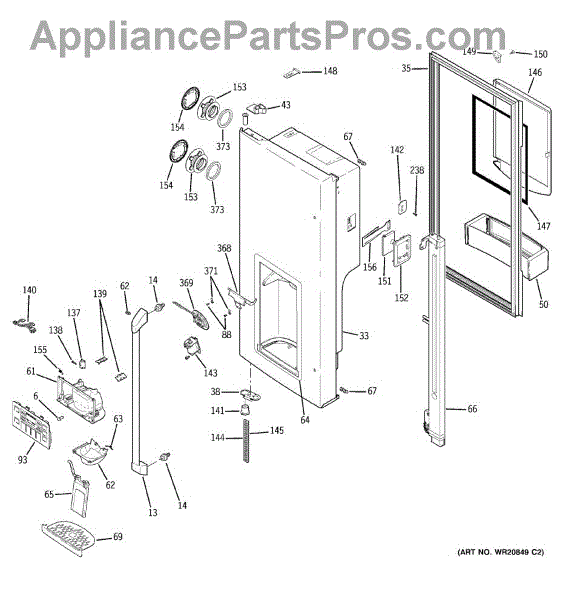

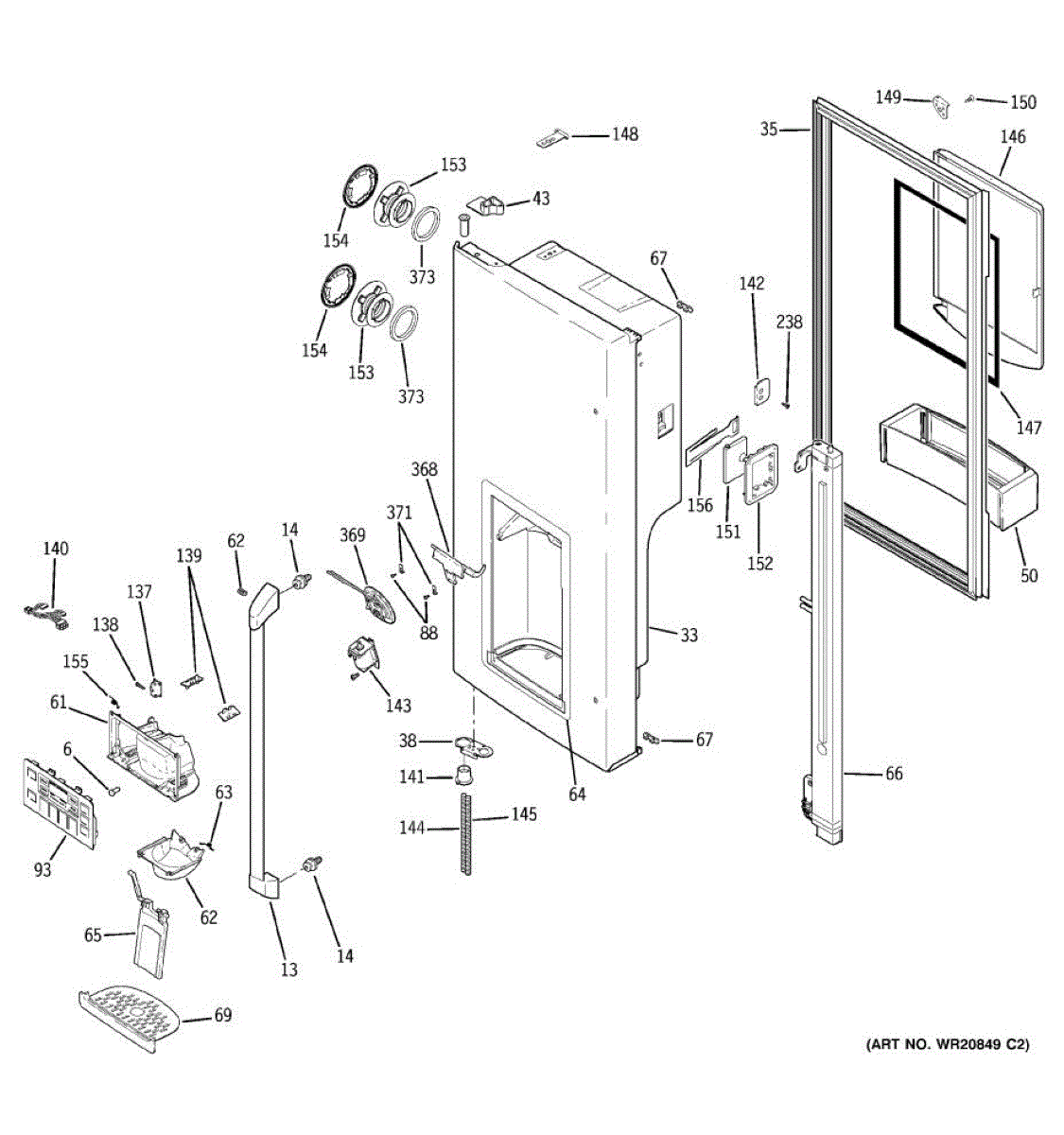

Parts for Ge CFSP5RKBCSS: 01 - Dispenser Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


A commercial-style door handle assembly that restores a secure, easy-to-grip pull for refrigerators and freezers. Replaces damaged or missing handles to improve operation and appearance. What it does:

• Provides a rigid, ergonomically shaped handle for opening and closing the appliance door
• Replaces cracked, broken, loose, or bent handles that affect door access
• Restores proper mounting points so the door can be opened without catching or slipping
• Improves cabinet appearance when the original handle is chipped or worn

• Disconnect power to the appliance or unplug before starting any repair
• Remove any trim or covers that conceal handle fasteners; retain original hardware if reusing
• Typical installation requires a screwdriver or nut driver; follow factory fastener torque without overtightening

A stainless-steel handle fastener that secures the refrigerator door handle to the door assembly for a solid, wobble-free grip. Use to restore a loose, stripped, or missing handle attachment point. What it does:

• Secures the door handle to the door/handle mounting point so the handle stays tight and aligned.
• Stops handle movement, wobbling, or rattling caused by a worn or missing fastener.
• Replaces a corroded or damaged fastener to restore a secure connection.
• Stainless finish resists corrosion at the handle mounting point.

• Disconnect power to the appliance before starting work whenever access to internal parts is required.
• Use the correct screwdriver or bit; turn carefully and avoid sideways force on the handle.
• Do not overtighten—over-torquing can strip threads or crack surrounding trim.
• Keep removed hardware and any trim pieces for reassembly; inspect handle and threaded inserts for damage.

The French Door Gasket is an OEM part for GE refrigerators. This gasket seals the gap between the French doors of the refrigerator, maintaining an airtight seal to prevent warm air from entering and cool air from escaping. It ensures the refrigerator operates efficiently by keeping the internal temperature consistent.

You should replace this French door gasket if it becomes worn out or damaged. Causes of a bad gasket include regular wear and tear, damage from cleaning, or the gasket becoming brittle over time. A compromised gasket can lead to increased energy consumption and food spoilage.

Symptoms of a bad French door gasket include:

• Warm air entering the refrigerator
• Frost buildup around the doors
• Higher than usual energy bills
• The refrigerator door not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser housing shield replaces the plastic housing that protects and supports the refrigerator dispenser assembly, restoring a clean, secure dispenser opening and helping prevent leaks or damage. Ideal for cracked, warped, or broken dispenser trim. What it does

• Covers and protects the dispenser opening and internal dispenser components
• Provides a stable mount for dispenser controls and actuators
• Helps prevent water from leaking into the cabinet around the dispenser
• Restores appearance and function when the dispenser trim is cracked, split, or warped

• Disconnect power and water supply before starting any work
• Remove the dispenser bezel or door trim to access the housing; keep fasteners for reassembly
• Handle plastic parts gently to avoid cracking; use appropriate trim tools if needed

This ice dispenser funnel guides cubed or crushed ice from the chute into your glass. Replacing a cracked or missing funnel helps prevent stray ice, reduce jams, and restore clean, controlled dispensing at the refrigerator door.

• Directs ice through the dispenser opening for accurate, mess-reducing filling
• Helps minimize ice scatter, clogs, and bounce-back into the door cavity
• Common signs of failure: cracks, broken tabs, misalignment, or ice missing the glass
• Restores proper fit and alignment within the dispenser housing

• Unplug the refrigerator before servicing the dispenser area
• Access the funnel by removing the dispenser trim/panel per your service information
• Transfer any mounting hardware, springs, or clips from the original part
• Ensure secure seating and alignment; restore power and test ice dispensing

Small replacement bumper that mounts on a French-door to cushion contact, reduce rattling and protect the door and cabinet from wear. Restores smoother closing and helps maintain proper door alignment. What it does:

• Cushions the door to prevent metal-to-metal contact and reduce noise.
• Protects the door edge and cabinet finish from wear and impact damage.
• Helps the door align and seat properly for an even, quiet close.
• Commonly used when doors rub, squeak, or close unevenly.

• Disconnect power to the appliance before starting any work.
• Typically installs by pressing or seating into the designated bumper hole or post; may require removing the door or loosening a hinge for full access.
• Inspect surrounding mounting hole and adjacent bumpers; replace any additional worn bumpers for consistent fit.

Color: Black - It measures about 7-1/2 inches wide by 4 inches deep. For Chrome, order WR17X12320.

This plug-in SCR is a solid-state replacement that controls electrical power to appliance circuits, restoring reliable on/off control and helping eliminate intermittent operation. It's a direct-fit replacement when the original SCR fails. What it does

• Regulates current flow in the control circuit to switch power to motors or heating loads.
• Stops erratic cycling or loss of power caused by a failed control semiconductor.
• Helps restore consistent operation when an appliance has intermittent start, no heat, or no motor run.
• Provides a rugged, compact replacement with a 5/16" connection style.

• One plug-in SCR

• Disconnect power to the appliance before accessing or replacing the SCR.
• Remove the appliance's control or access panel to reach the control board; note wire locations before unplugging.
• Plug the new SCR into the original connector or replace per the service manual.
• Verify correct operation after installation and reassemble all panels before restoring power.

This dispenser interface is the electronic control board that manages a refrigerator's ice and water dispenser functions, restoring proper dispense responses and panel input control when the dispenser becomes unresponsive. What it does:

• Receives and processes user inputs from the dispenser control panel
• Signals dispenser actuators and solenoids to dispense water or ice
• Helps correct intermittent or no-response dispenser behavior
• Resolves erratic display messages or unresponsive dispenser buttons

• High-level replacement; disconnect power to the appliance before beginning work
• Handle the board by edges and avoid static discharge—use anti-static precautions if available
• Verify panel connectors are fully seated and free of corrosion during reassembly

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures panels, brackets, and other components inside your refrigerator. Replacing a missing or stripped fastener restores a tight fit, reduces vibration, and helps keep parts aligned so covers and assemblies stay in place.

• Fastens sheet-metal, plastic, and bracket assemblies to the cabinet or liner
• Replaces lost, corroded, or stripped hardware
• Can help address loose or rattling parts and minor misalignment
• Fits original threaded mounting points for a proper, secure hold

• Disconnect power; shut off water supply if working near water lines
• Match to the original location; start threads by hand to avoid cross-threading
• Tighten snugly only—overtightening can strip threads or crack plastic

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door ice box assembly replaces a damaged or worn ice storage door to help keep ice contained and maintain proper freezer airflow. It restores the door barrier that helps prevent ice spill and reduces frost buildup around the ice compartment. What it does:

• Replaces a cracked, broken or missing ice box door to contain ice and prevent spillage inside the freezer
• Restores a proper barrier for cold air to reduce frost buildup and preserve freezer temperature stability
• Helps maintain neat ice storage and supports any attached shelves or dispensing features
• Can stop airflow leaks that cause uneven cooling or excessive frost in the ice compartment

• One door ice box assembly

• Unplug the appliance or disconnect power before starting any repair
• Support the freezer door and remove any shelves or components that block access before replacing the assembly
• Handle plastic components carefully to avoid cracking; tighten fasteners securely but do not overtighten

This port gasket seals the dispenser opening to prevent water leaks and reduce moisture intrusion at the dispenser/ice port. It restores a tight seal so the dispenser area operates cleanly and helps prevent dripping or pooling. What it does:

• Seals the dispenser/port opening to stop water leaks and slow moisture buildup
• Helps prevent water from pooling or dripping around the dispenser area
• Reduces opportunity for frost or ice buildup near the port
• Restores a proper seal when the old gasket is cracked, warped, or worn

• One port gasket

• Disconnect power and shut off the water supply before replacing the gasket
• Remove old gasket carefully; clean the mating surfaces of debris and mineral buildup
• Seat the new gasket fully into the channel and ensure an even, gap-free fit
• Test the dispenser at low flow and check for leaks before restoring normal use

This screw is a genuine General Electric part, sold individually. This screw can be used as a replacement part for a refrigerator. A screw can suffer damage in the lifespan of a refrigerator. It can also be easily lost or misplaced. Screws are small parts and are usually installed in multiples to ensure components are reliably attached, so one screw loosening or going missing might not necessarily affect the operability of the refrigerator. However, if the components loosen or the screw suffers damage that strips the part, such as punctures or erosion to the metal material from general wear and tear or from a direct impact, the screw should be removed and replaced with this genuine OEM replacement part. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This screw is compatible with the following appliance brands: General Electric, Hotpoint, RCA, and Americana.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Thin adhesive-backed foam tape that seals and cushions refrigerator components to reduce air leaks, vibration and moisture intrusion. Helps maintain consistent cooling and prevents drafts or frost buildup around panels and trim. What it does

• Creates a tight seal between cabinet parts, reducing cold-air loss and helping prevent frost or ice buildup.
• Cushions panels and trim to reduce rattles and vibration noise.
• Fills small gaps and evens contact surfaces for better insulation performance.
• Adheres to clean, dry surfaces for a long-lasting seal.

• Clean and dry the mounting surface thoroughly before applying; remove old adhesive residue.
• Measure and trim the tape to fit; press firmly along the length to ensure full contact.
• Replace only with the exact part if original fit or thickness is required.
• Handle adhesive with care; avoid contact with skin and keep away from high-heat areas.
