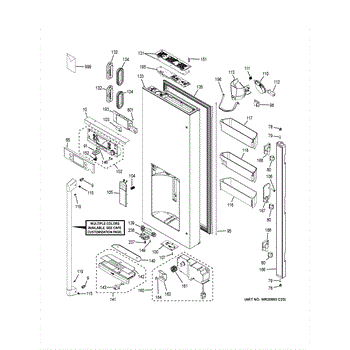

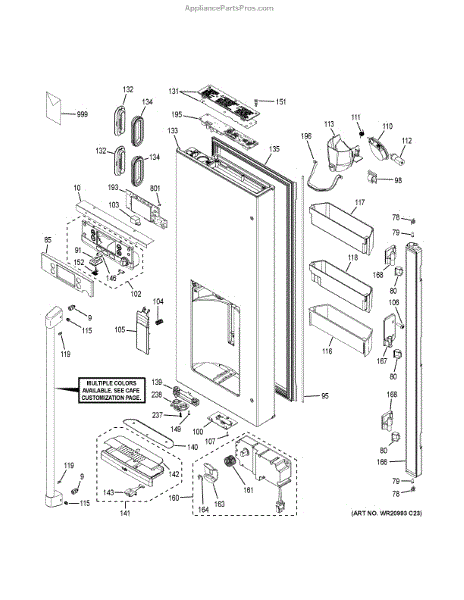

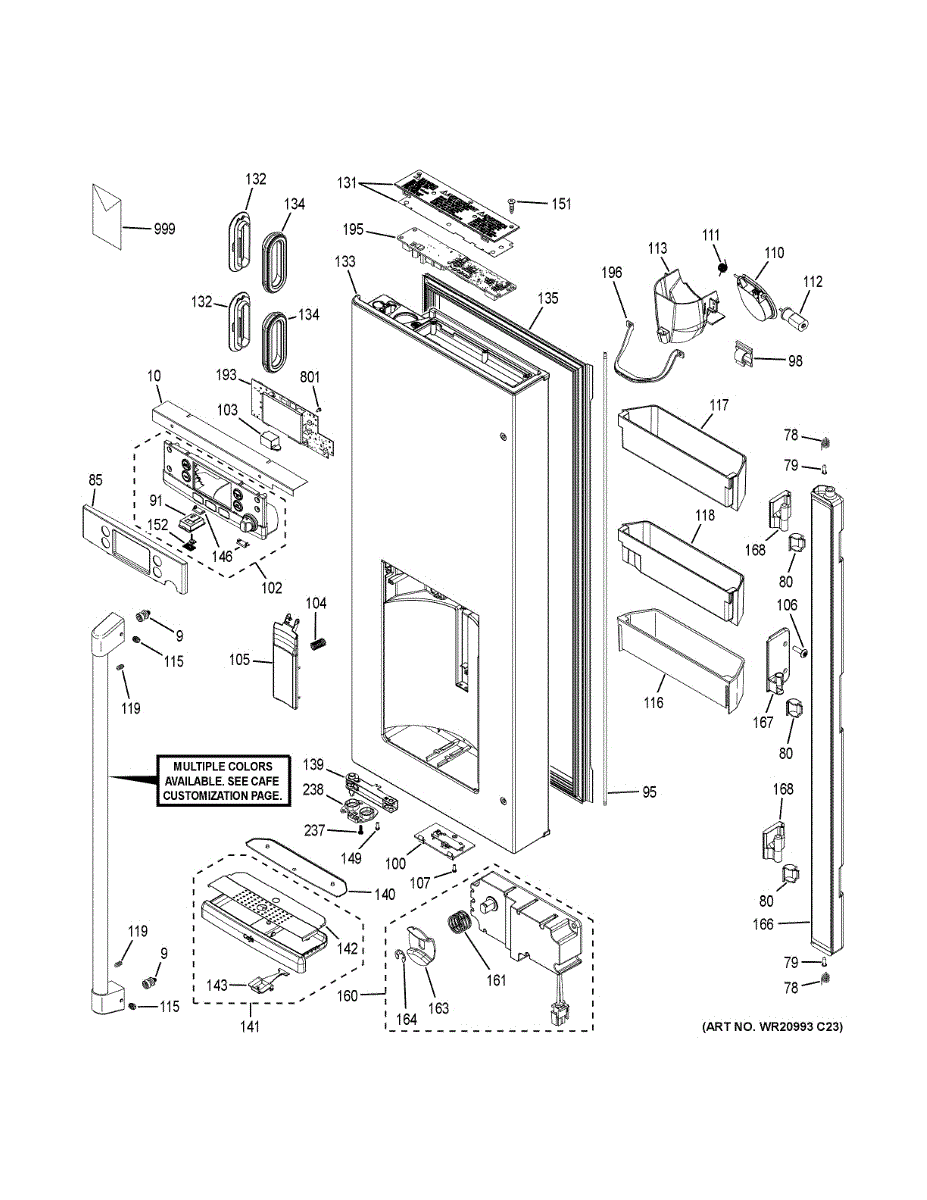

Parts for Ge CFE28TP3MBD1: Dispenser Door Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

The Flapper Door Spring is an OEM part for GE refrigerators. It ensures the proper operation of the ice dispenser's flapper door by providing the necessary tension for the door to open and close correctly. This helps in maintaining the internal temperature and preventing warm air from entering the freezer.

You should replace the flapper door spring if it becomes worn out or damaged. Over time, the spring can lose its tension due to constant use, become bent or broken from mishandling, or suffer from rust and corrosion.

Symptoms of a bad flapper door spring include:

• The ice dispenser flapper door not closing properly
• Warm air entering the freezer compartment
• Increased frost buildup around the ice chute
• Unusual noises when the ice dispenser is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Mullion Spring Sleeve is the small bushing that fits over the door mullion (center flipper) spring. It guides the pivot and reduces wear so the flap folds smoothly and helps maintain a tight seal between refrigerator doors.

• Provides a smooth bearing surface around the mullion spring/hinge pin for reliable pivoting
• Helps the mullion fold out on opening and spring back to close the center gap
• Wear or loss may present as a loose or binding flipper, clicking/grinding, or a gap that prevents a full seal
• Replacing the sleeve can help restore proper flipper action without replacing the entire mullion assembly

• Disconnect power and clear items from the door; remove the mullion from its top and bottom pivots, noting the spring orientation
• Slide off the worn sleeve from the spring/pin and install the new sleeve in the same position
• Reinstall the spring and mullion; verify the flipper opens/closes freely and the center seal makes full contact
• Wear cut-resistant gloves; edges around the door and hinge can be sharp

This hinge cap is the small trim piece that covers your refrigerator door hinge. Replacing a cracked or missing cap protects the hinge from dust and restores a clean, finished look to the door area.

• Covers and protects the door hinge hardware from dust and debris
• Restores a clean, factory-finished appearance
• Helps keep the hinge area clear for smooth door movement
• Replace when the original cap is cracked, loose, discolored, or missing

• Disconnect power before servicing the appliance
• Support the door to prevent movement while working near the hinge
• Remove the old cap; align and press the new cap onto the hinge until fully seated; reuse the original fastener if your model uses one
• Verify the cap is secure and does not rub as the door opens/closes

This replacement display cover is the clear plastic lens that protects the brewer's control panel and keeps the display and buttons visible and readable. It restores the appearance of a cracked, scratched, or cloudy front panel. What it does:

• Protects the control/display area from spills, dirt, and everyday wear
• Restores visibility when the original lens is scratched, cracked, or cloudy
• Helps keep buttons and the underlying display readable for normal use
• Matches the original fit and mounting points for direct replacement

• Disconnect power before starting any work to avoid shock or damage
• Remove any outer bezels or screws carefully to access the old cover; retain fasteners
• Handle the new lens by the edges to avoid fingerprints or scratches during installation

This Pex water line is the flexible inlet tubing that carries water to the refrigerator's dispenser and ice maker. It replaces worn or damaged tubing to restore reliable water flow and prevent leaks. What it does:

• Transfers water from the household supply to the refrigerator water valve, dispenser and ice maker
• Replaces cracked, pinholed or hardened tubing that can cause leaks
• Helps restore normal water flow when the dispenser or ice maker isn't filling
• Provides a flexible, corrosion-resistant connection for routine service or repair

• Turn off the refrigerator and shut off the home water supply before starting
• Drain any residual water from the line and relieve system pressure before disconnecting fittings
• Inspect and, if needed, replace any clamps, ferrules or valves shown in your service instructions; tighten fittings to OEM torque recommendations

The LED and Cover Assembly is an OEM part for GE refrigerators. This component illuminates the interior compartments and includes light-emitting diodes (LEDs) with a protective transparent cover. It provides enhanced visibility of stored items through energy-efficient white lighting.

Causes of failure can be related to the electronic operation of the LEDs themselves wearing out over the lifespan of many on/off cycles. The cover plastic may develop cracks or scratches from regular cleaning.

Symptoms include:

• Dimming or flickering lights that no longer shine brightly
• Discoloration of the cover material obstructing light transmission
• Loose or detached cover that won’t stay securely fastened

This GE OEM replacement restores clear illumination for stored items. With long-lasting LED technology behind a shatter-resistant shield, it ensures dependable visibility during nighttime fridge access. Compatible with later produced Hotpoint, RCA, and Kenmore refrigeration models as well.

This small return spring provides the tension needed for a lever, latch, or flap mechanism in select refrigerators, helping the component move smoothly and snap back to its correct resting position after use.

• Restores proper tension so the linked mechanism operates smoothly and returns to neutral
• Helps doors, latches, or levers close or engage consistently
• Typical failure signs: weak or missing spring force, parts that don't spring back, poor closure, or rattling
• Replacing a fatigued spring can improve feel and reliability of the mechanism

• Disconnect power; turn off the water supply if working near dispenser or ice components
• Note spring orientation and take reference photos before removal
• Use needle-nose pliers and control stored tension to avoid injury
• Inspect related clips, pins, or brackets and replace if worn

This dispenser paddle and switch assembly operates the refrigerator dispenser so you can activate water or ice with a simple push. Durable black-slate finish replaces a broken or unresponsive paddle and restores normal dispenser control. What it does:

• Provides the push paddle and internal switch used to activate the dispenser mechanism
• Replaces a cracked, loose, or non-responsive paddle that prevents water or ice from dispensing
• Restores reliable user control of the dispenser lever and switch actuation
• Matches black/slate trim for a consistent appearance

• Disconnect power to the appliance before starting any repair
• Remove the inner dispenser bezel or access panel to reach the paddle; handle trim pieces gently to avoid cracking
• Verify switch operation before reassembly

This is a replacement #8-18 by 1/2-inch appliance screw used to secure panels, trim, and internal components. It restores proper fastening where the original screw is missing, stripped, or corroded. What it does:

• Fastens panels, brackets, trim pieces, and small components
• Restores secure mounting when a screw is missing or worn
• Stops rattling and vibration caused by loose or stripped fasteners
• Compatible with applications that call for a #8-18 x 1/2" screw

• One screw (8-18 x 1/2 in)

• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when the component is snug to prevent damage
• If screw threads are damaged, replace with the correct thread size rather than forcing
• Disconnect power before working on electrical components or panels that expose wiring

Size: 8 - 18 ab.

This duct door assembly is the refrigerator's air damper door. It opens and closes to control cold-air flow from the freezer into the fresh-food compartment, helping maintain stable temperatures and reduce warm spots or localized frosting.

• Regulates airflow between freezer and refrigerator compartments
• Helps the unit reach and maintain set temperatures
• Seals the duct when closed to limit moisture and frost migration
• Also called an air diffuser/damper door; failure may show as poor airflow, fridge too warm, items freezing near the vent, or clicking from the damper area

• Disconnect power to the refrigerator before servicing
• Access the air duct/diffuser in the fresh-food section and remove its cover as needed
• Note the door's orientation; transfer any reusable seals or clips from the original if applicable
• After installation, the door moves freely and the vent path is unobstructed

This Duct Door Spring returns the dispenser ice chute door to the closed position and helps maintain a tight seal at the dispenser opening, reducing warm-air leaks, frost buildup, and melting or clumping ice.

• Provides the return tension for the dispenser duct/ice chute door after dispensing
• Helps keep cold air in and warm air out to limit frost and condensation at the dispenser
• Can reduce frost in the ice chute or ice clumping caused by air leaks

• Disconnect power to the refrigerator before servicing the dispenser
• Access the dispenser assembly; remove front panel/trim as required by your model
• Note spring orientation and engage it correctly on the duct door and pivot
• After installation, verify the door moves freely and seals fully before reassembly

The Motor Duct Door is an OEM part for GE refrigerators. It is the cover that houses the evaporator fan motor and ductwork in the refrigerator. The motor and ductwork circulate cold air throughout the unit to maintain even temperatures for food storage.

Causes of a bad motor duct door can include failed seals that compromise cooling performance or damage to the door and hinges that prevent proper opening and closing.

Symptoms of a bad motor duct door include:

• Warm or lukewarm air inside the refrigerator sections
• Improper airflow causes warmer or colder spots
• Difficulty opening or closing the duct door

Replacing with this genuine GE OEM part allows for optimal air circulation throughout the refrigerator. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads

This replacement Door Ice bottom bin restores secure, usable storage in the lower position of the Door Ice section. Replace a cracked, warped, or missing bin to keep items in place and maximize door capacity. What it does:

• Serves as the bottom shelf/bin in the Door Ice area to hold items securely
• Mounts to the door's molded rails/hooks for a stable fit
• Replace if the bin is cracked, hooks are broken, or it won't stay in place
• Helps prevent items from tipping or falling when the door opens and closes

• 1 bottom Door Ice bin

• Remove items from the bin and area; disconnect power if working near electrical components
• Lift the old bin up and off the door tabs to remove
• Align the new bin with the door slots/tabs and press down until fully seated
• It sits level and secure before reloading items

This is the top-left refrigerator door bin used on models with in-door ice. It restores secure storage and organization on the door so smaller items stay put when you open and close the refrigerator. What it does:

• Mounts on the top-left door position to hold and organize items near the in-door ice area
• Replaces a cracked, warped, or missing bin
• Helps prevent items from tipping or falling during door movement
• Addresses issues where the original bin won't stay seated or interferes with door closing

• 1 door bin

• Compare to your original to confirm the top-left position and mounting style before installing
• Remove contents; align the bin's tabs/hooks with the door slots and press firmly until fully seated
• Do not force; if working near the dispenser/ice system, power off the refrigerator and shut off water as needed

The Ice Door Bin is an OEM replacement part for GE side-by-side refrigerators. It consists of a detachable ice storage bin along with the hinged door that provides access. This component plays an important role in containing and supplying ice from the icemaker.

Causes of a bad ice door bin can include damage to the plastic material over time from repeated openings/closings. The internal ice scoop mechanism may become stuck or obstructed. Hinge or mounting components may become loose.

Symptoms of a bad ice door bin include:

• Difficulty opening or closing the ice door
• Ice cubes scattering out of the bin when accessed
• Inability to contain or guide ice for easy removal
• Leaks that allow water to pool underneath

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This port collar is a small trim/support piece used on select refrigerators. It reinforces the port opening and helps secure the mating tube or component for proper alignment, a snug fit, and a clean, finished appearance.

• Supports and spaces the port/opening where a tube or component passes through the cabinet or liner
• Helps maintain alignment and a secure fit to minimize gaps or vibration
• Replace if the collar is cracked, warped, or missing
• Symptoms can include a loose connection at the opening, rattling, or a visible gap or misalignment

• Unplug the refrigerator; shut off the water supply if working near water lines
• Use your model's parts diagram to access the port; remove any trim, clips, or screws
• Note orientation; press or snap the new collar into place and transfer any seals if present
• Reassemble and restore power; verify proper fit and operation

Port Gasket forms a watertight seal around the refrigerator dispenser port to prevent leaks and moisture intrusion. Installing a fresh gasket restores proper sealing and helps stop dispenser drips and water pooling. What it does:

• Seals the dispenser/port opening to prevent water from leaking at the door area.
• Helps stop visible dripping or pooling near the dispenser and reduces moisture buildup.
• Replaces worn, cracked, flattened, or missing gaskets that allow leaks or drafts.
• Restores a proper seal so the dispenser operates without water escaping around the port.

• Disconnect power (and shut off the water supply if working near the dispenser) before beginning work.
• Remove the old gasket and thoroughly clean mating surfaces to ensure a full seal.
• Press the new gasket evenly into the port opening, making sure it seats all the way around.
• After installation, restore power/water and run a small dispense test to confirm no leaks.

The Fresh Food Door Gasket is an OEM part for GE refrigerators, specifically designed to ensure an airtight seal around the door of the refrigerator's fresh food compartment. This gasket plays a crucial role in maintaining the refrigerator's internal temperature, preventing warm air from entering and cold air from escaping. By doing so, it helps to keep food fresh for longer periods, reduces energy consumption, and ensures the appliance operates efficiently.

The cause of issues with the door gasket can be normal wear and tear over time. Frequent opening and closing of the refrigerator door, along with accidental spills or debris, can also degrade the gasket's material, reducing its effectiveness.

Symptoms of a failing Fresh Food Door Gasket include:

• Noticeable gaps or tears in the gasket
• Condensation or frost buildup inside the refrigerator
• The refrigerator door not closing as tightly as it should
• An increase in the energy required to maintain the refrigerator's temperature

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

A left-hand closure door assembly that replaces a worn or broken door closure to restore proper sealing and smooth drawer/door operation. Helps stop drafts and keeps compartments closing correctly for reliable performance. What it does

• Guides and supports the left-side door/drawer as it closes to ensure proper alignment.
• Helps form a tight seal to reduce air leakage and maintain interior temperature.
• Prevents rattling or catching that can occur when the closure is damaged or worn.
• Commonly replaced when the door doesn't stay closed, binds, or leaves a visible gap.

• Disconnect power to the appliance before starting any repair.
• Basic hand tools are typically required; access may involve removing a drawer or trim panel.
• Handle parts carefully to avoid damaging surrounding panels or gaskets.

This tray guard assembly secures the ice/water tray and helps keep trays aligned to prevent spills and rattling. Replaces a cracked or broken guard to restore a stable tray fit and smooth drawer operation. What it does:

• Holds the ice/water tray in place so it doesn't shift or tip
• Prevents spills and uneven freezing caused by a loose or broken guard
• Reduces drawer/tray rattling and noise from vibration
• Restores proper tray alignment for reliable access and filling

• Disconnect power to the appliance before beginning work
• Typically installs with a few screws or clips; remove the drawer/tray for access
• Handle plastic parts carefully to avoid cracking during removal/installation

This grill recess is a molded trim piece that restores the recessed area at the front lower grille of the refrigerator, helping the grille sit flush and improving appearance. It replaces damaged or missing trim for a clean, finished look. What it does:

• Provides the recessed mounting/trim area that the lower grille fits into
• Secures and stabilizes the grille so it sits flush with the cabinet face
• Covers rough or damaged cabinet edges for a finished appearance
• Reduces rattling or movement caused by a loose or broken trim piece

• Disconnect power to the appliance before starting any repair
• Typically installs by aligning and snapping or fastening into existing mounting points
• Use basic hand tools as needed; avoid forcing the plastic to prevent breakage
• Replace damaged clips or fasteners to ensure a secure fit

This LED light shield protects and diffuses the refrigerator's LED lighting, restoring even illumination and preventing direct exposure to the lamp. Replace a cracked, yellowed, or missing shield to improve light distribution and appearance. What it does:

• Covers and protects the LED light assembly from damage and debris.
• Diffuses LED output for softer, more even interior lighting.
• Replace if the shield is cracked, broken, warped, or discolored.
• Helps prevent direct glare from exposed LEDs for safer visibility.

• One LED light shield / cover.

• Disconnect power to the appliance before starting any work.
• Handle the shield carefully—plastic can crack; avoid overtightening fasteners.
• Install by aligning with existing mounting points or clips; do not force into place.
• Inspect the LED module and wiring.

8-18 hi/lo 5/8

This is a replacement 8-18 x 1/2" flat-head slotted screw commonly used to secure appliance panels and components. It restores proper fastening and helps eliminate rattles, loose trim, or misaligned parts. What it does:

• Secures panels, brackets, and trim to restore proper fit
• Stops vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to prevent parts from shifting
• Works where a flat-head, slotted-drive #8 screw with 1/2" length is required

• One 8-18 x 1/2" flat-head slotted screw

• Use the correct size slotted screwdriver to avoid cam-out or head damage
• Tighten until snug; avoid over-torquing which can strip threads or deform panels
• Replace any stripped mating hardware for secure fastening
• Disconnect power before doing repairs on appliances where required for safety

This USB port cover replaces a broken or missing cover on the appliance control panel to protect the USB connector from dirt and moisture. It restores a finished appearance and helps keep the port functional. What it does:

• Covers and protects the appliance USB port from dust, moisture, and accidental contact
• Prevents debris from entering the connector, reducing risk of connectivity issues
• Restores the control-panel appearance when the original cover is cracked or lost

• Disconnect power to the appliance before servicing to avoid shock or damage
• Accessible from the control panel; typically snaps into place or secures with small fasteners
• Inspect surrounding trim for damage and replace any broken clips to ensure a secure fit

Ice bucket and motor kit replaces a worn or cracked ice bin and its drive motor so your refrigerator can collect and advance ice properly. Restores ice storage and rotation for reliable dispensing. What it does:

• Holds and stores produced ice in the freezer's ice compartment.
• Drive motor rotates the bucket to advance ice toward the dispenser or ice chute.
• Replaces a cracked or damaged bin that leaks or chips ice.
• Helps stop symptoms such as a non-turning bucket, ice not dispensing, or unusual motor noise.

• Disconnect power to the appliance before starting any repair.
• Handle the bin and motor carefully to avoid damaging mounting tabs and electrical connections.
• Use basic hand tools; follow the OEM service manual or exploded parts diagram for correct removal and reassembly.
• After installation, reconnect power and cycle the ice maker to verify proper rotation and ice delivery.

This clutch spring restores proper tension in the dispenser drive so the auger can engage and disengage as designed. Replacing a fatigued or broken spring helps bring back smooth, reliable ice dispensing performance. What it does:

• Maintains the correct preload on the dispenser clutch for positive auger engagement
• Allows controlled slip to protect the auger motor during jams
• Can address loud clicking/grinding from the ice dispenser when activated

• 1 clutch spring

• Disconnect power before servicing; remove the ice bin to access the auger/clutch area
• Note the spring's orientation during disassembly for correct reinstallation
• Control small retainers/clips that may be released when removing the clutch components
• After installation, rotate the auger by hand to ensure smooth clutch action before restoring power

This clutch coupling connects the washer motor/clutch to the agitator so the tub agitates properly during the wash cycle. Replaces a worn or broken coupling to restore normal agitation and reduce slipping or grinding. What it does:

• Transfers motor/clutch rotation to the agitator so clothes move during wash cycles.
• Commonly used when the washer spins but does not agitate or when agitation is weak.
• Helps eliminate slipping, grinding, or unusual noise from a failing coupling.
• Works as the mechanical link between the drive system and agitator assembly.

• One clutch coupling as pictured and specified by the OEM.

• Disconnect power and water supply before starting any repair.
• Basic mechanical skills and common hand tools required; follow OEM disassembly steps for safe access.
• Inspect related parts (agitator, drive shaft, clutch) for wear and replace as needed.

This E-clip is a small metal retaining ring that secures shafts, pins, and other round components in appliance assemblies, helping keep moving parts properly seated and preventing unwanted disassembly. What it does:

• Clips onto a shaft or pin to hold components in place and maintain alignment
• Prevents parts from sliding off during operation, reducing noise and wear
• Common symptom: loose or rattling components where a retaining clip is missing or damaged
• Common symptom: assembly falling apart or not engaging correctly due to a failed clip

• One E-clip

• Small part — use needle-nose pliers or snap-ring pliers to install and keep fingers clear
• Disconnect power and/or water to the appliance before servicing to avoid injury
• Wear safety glasses to protect against the clip snapping during installation

This articulating mullion assembly is the folding center strip for the fresh food section. It mounts to one refrigerator door and swings over the center gap to complete the door seal, helping maintain temperature and reduce condensation.

• Folds over the gap between doors to create a reliable air seal
• Helps keep cold air in and warm air out for consistent cooling
• Replaces a broken, cracked, or misaligned flipper that won't fold or latch properly
• Common symptoms: moisture or frost between doors, doors not closing/sealing, or temperature fluctuations near the door opening

• Disconnect power before servicing.
• Open the doors, remove any covers/screws securing the mullion, and note orientation for reassembly.
• Transfer any reusable trims/caps from the old mullion to the new assembly if required.
• Verify smooth folding action and full gasket contact before restoring power.

This is the hinge for the refrigerator door mullion—the folding center rail (flipper) between the doors. It lets the mullion pivot smoothly and seal the door gap, helping prevent air leaks, condensation, and poor door closure.

• Allows the mullion to fold open and closed with door movement
• Helps maintain an even, airtight center seal between doors and gaskets
• Common fix for a broken/loose flipper or a mullion that won't pivot or return
• Resolve doors not closing fully, air leaks, or condensation along the center rail

• Unplug the refrigerator before servicing
• Support the door and mullion to avoid stressing hinges and gaskets
• Note hinge orientation and screw locations during removal; reuse existing hardware
• After installation, verify smooth mullion action and a proper center seal

This LCD graphic display board assembly runs the refrigerator's front-panel screen and user interface. Replacing a failed board restores clear readouts and responsive button inputs for temperature, dispenser, and settings so you can control your fridge reliably. What it does:

• Drives the front display that shows temperatures, status icons, and prompts
• Interfaces with panel buttons to send commands to the appliance's control system
• Failure symptoms can include a blank or dim screen, garbled characters/graphics, frozen or unresponsive buttons, or intermittent resets
• A faulty board may prevent dispenser selections or temperature changes from registering

• 1 LCD graphic display board assembly

• Unplug the refrigerator before servicing; do not rely on the controls alone
• Use anti-static precautions and handle the board by its edges
• Transfer any brackets, light guides, or trim from the original board if needed
• Fully seat ribbon/plug connectors and verify orientation before restoring power

The Door Board is an OEM component designed for GE bottom-mount refrigerators. Located inside refrigerator doors, it operates essential LED functions for interior lighting and temperature displays. Properly illuminated shelves and accurate temperature readings depend on a functioning door board.

Causes of failure can include loose wiring connections from repeated door openings, fluid damage allowing corrosion over time, or failure of electronic components on the printed circuit board.

Symptoms of a defective door board are:

• Dim or unlit interior lighting
• Inoperative temperature display
• Strange odor or sparks coming from the door area

Replacing with this genuine GE part restores bright illumination and easy temperature monitoring. Compatible with Hotpoint, RCA, and Kenmore side-by-side models as well.

This is a replacement round-head screw sized 10-24 x 5/8 in. It secures trim, panels, and internal components so parts stay aligned and appliances run quietly and safely. What it does

• Fastens panels, brackets, and trim pieces in place
• Prevents loose parts that can rattle or cause misalignment
• Replaces missing or stripped screws to restore secure mounting
• Works where a 10-24 x 5/8 round-head screw is required

• Disconnect power before servicing the appliance
• Use the proper screwdriver or nut driver to avoid stripping the head
• Align parts before tightening and thread gently to avoid cross-threading
• Do not over-tighten; stop when snug to prevent panel distortion

This hinge-mounted refrigerator door stop limits how far the door swings open, protecting the cabinet and nearby walls from impact. Replace a cracked or missing stop to restore a controlled, factory door swing and prevent overextension.

• Mounts on the door hinge to control the door's opening range
• Helps prevent the door or handle from striking adjacent walls or cabinets
• Common symptoms: door opens past its normal range, broken/missing stop, visible wear at the hinge stop
• Often needed after an impact or when the original stop cracks from fatigue

• Disconnect power; turn off water to the door if applicable
• Support the door before loosening hinge fasteners; door removal may be required on some models
• Install the stop on the correct hinge location (right or left as required) and tighten hardware securely
• Verify door swing and clearance before fully loading shelves

This silicon controlled rectifier (SCR) switches and regulates power to heating or motor circuits, helping the appliance control temperature and run cycles reliably. It's a direct-fit electronic switching component used in a variety of control systems. What it does:

• Acts as an electronic switch to regulate AC power to heating elements or motors
• Helps control temperature output and maintain consistent cycle performance
• Can prevent unwanted continuous current flow when functioning properly
• Commonly replaced when ovens, ranges, or dryers fail to heat or cycle correctly

• One silicon controlled rectifier (SCR) as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the SCR by its body; avoid touching terminals and static-sensitive areas
• Verify proper orientation and secure mounting; follow OEM wiring and torque practices
