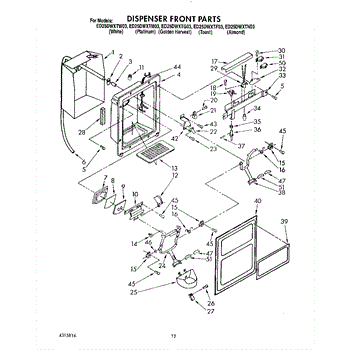

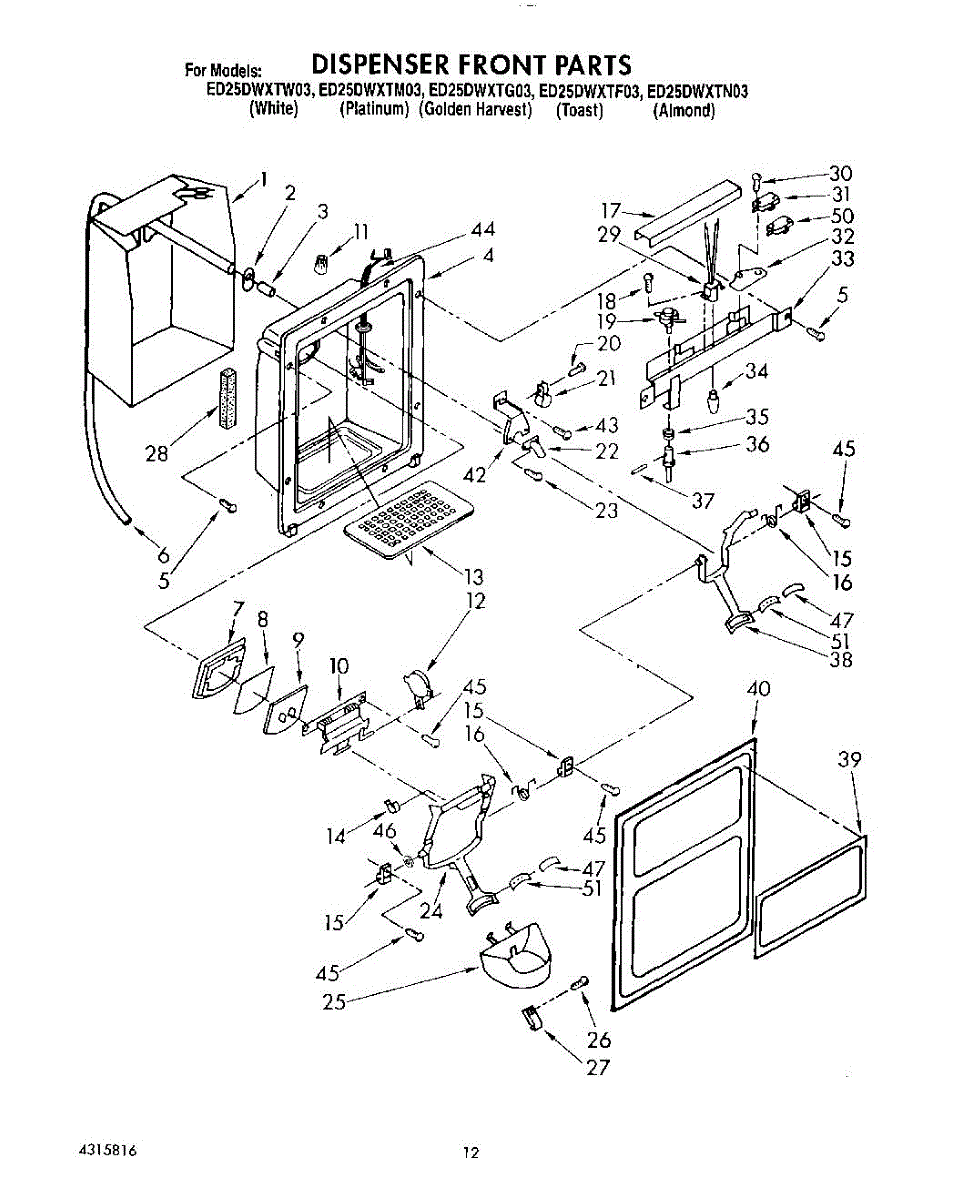

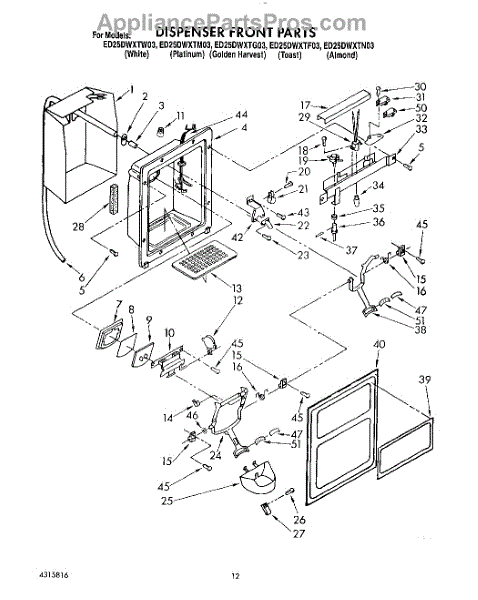

Parts for Whirlpool ED25DWXTM03: 09 - Dispenser Front Parts

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

All other colors have been discontinued by Whirlpool.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

An ice maker delay mechanism is the small timing device that staggers the steps of the ice-making cycle so each action happens in the right order. Replacing a worn unit helps restore steady, predictable ice production.

• Provides a brief, controlled delay in the ice maker cycle so components engage in the correct order
• Helps prevent short cycling or erratic operation
• Failure may result in no ice, intermittent ice, or stalls mid-cycle
• May be accompanied by repeated clicking or ticking from the ice maker head

• Disconnect power to the refrigerator and shut off the water supply before servicing
• Remove the ice maker assembly to access the delay mechanism
• Transfer any brackets or clips from the original part if required
• Align components carefully during reassembly to avoid bending any lever arms

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.

Screw: 8-16 x 3/8 inch.

Size; 8-18 x 1/2 inch.

Secures water supply hoses to fittings, preventing leaks in ice makers and refrigerators. Replace when rusted, bent, or losing grip. Verify fit.

Water tube assembly supplies water from inlet valve to ice maker and dispenser in your refrigerator door. Replace if cracked, leaking, or broken.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Illuminates the dryer drum for better visibility when loading and unloading. Replace when bulb burns out or fails to light. Confirm fit with your model.

Size: 8-28 x 3/4 inch.

Secures panels, brackets, and internal components in your refrigerator. Replace missing, stripped, or corroded screws to restore tight assembly fit.
