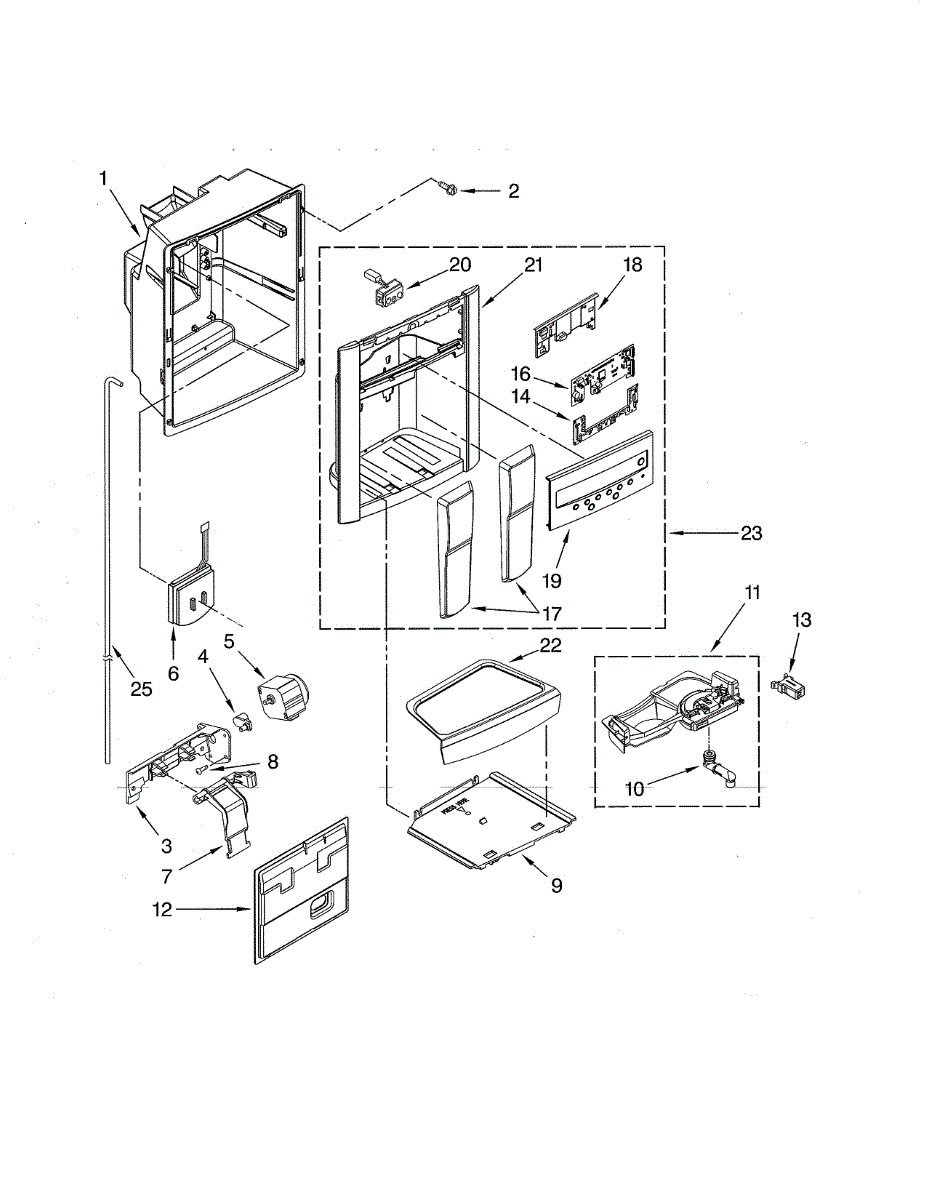

Parts for Whirlpool GS6NHAXVA04: Dispenser Front Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Replacement screw for securing panels, brackets, and internal components. Replaces missing, stripped, or damaged fasteners to restore proper fit.

This mounting bracket secures the ice maker motor assembly to the freezer housing so the motor stays aligned for reliable ice production. Replacing a damaged bracket restores proper motor positioning and reduces unwanted movement. What it does:

• Secures the ice maker motor to the freezer housing to maintain correct alignment.
• Prevents motor wobble or misalignment that can cause noisy operation or incomplete ice ejection.
• Helps ensure the motor drives the ice maker gears properly for consistent ice production.
• Commonly replaced when the bracket is cracked, bent, or missing mounting points.

• Always disconnect power to the appliance before servicing.
• Access the ice maker per the service manual; remove the ice maker or access panel as needed to reach the bracket.
• Reuse original mounting hardware unless new hardware is explicitly included; align bracket so the motor turns freely without binding.

This door bracket connector links the door bracket to its mating linkage in select refrigerator door assemblies. Replacing a worn or broken connector restores a solid connection so the door operates smoothly and stays properly aligned. What it does:

• Couples the door bracket to the hinge/actuator linkage to maintain alignment
• Helps ensure smooth door opening and closing
• Supports proper door sealing to reduce gaps or misalignment
• Replace if cracked, broken, or missing; common symptoms include a loose, clicking, or misaligned door

• Disconnect power before servicing; support the door as needed to prevent strain on hinges
• Remove the relevant bracket/cover to access the connector; note the connector's orientation
• Transfer and reuse existing screws/fasteners
• After installation, check door alignment and gasket contact all around

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

Ice falling out of dispenser or chute door won't close? This door chute directs ice flow and seals properly. Typical 30-minute DIY fix for dispensers.

Fix ice melting in the bin or ice chute door not closing properly. This dispenser door support bracket mounts the flapper for a proper seal. 20-30 min repair.

Screw for control panel.

The Drip Tray Slide is an OEM part for Whirlpool refrigerators. This tray provides a smooth sliding surface for the drip tray to rest on, preventing damage or leaks.

Causes typically relate to cracks, snags, or warps in the slide material that impact proper tray movement over many years.

Symptoms of a faulty slide include:

• The drip tray becoming stuck and difficult to remove
• Excessive rattling or shaking from the tray area
• Puddles or leaks under the refrigerator
• Accidental spills due to the tray not sliding freely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Flip-down door won't stay closed or open smoothly? This push latch secures compartment doors with a spring-action catch. Simple DIY fix in minutes.
