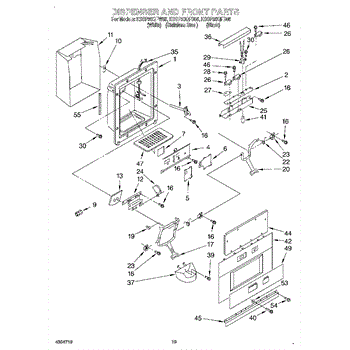

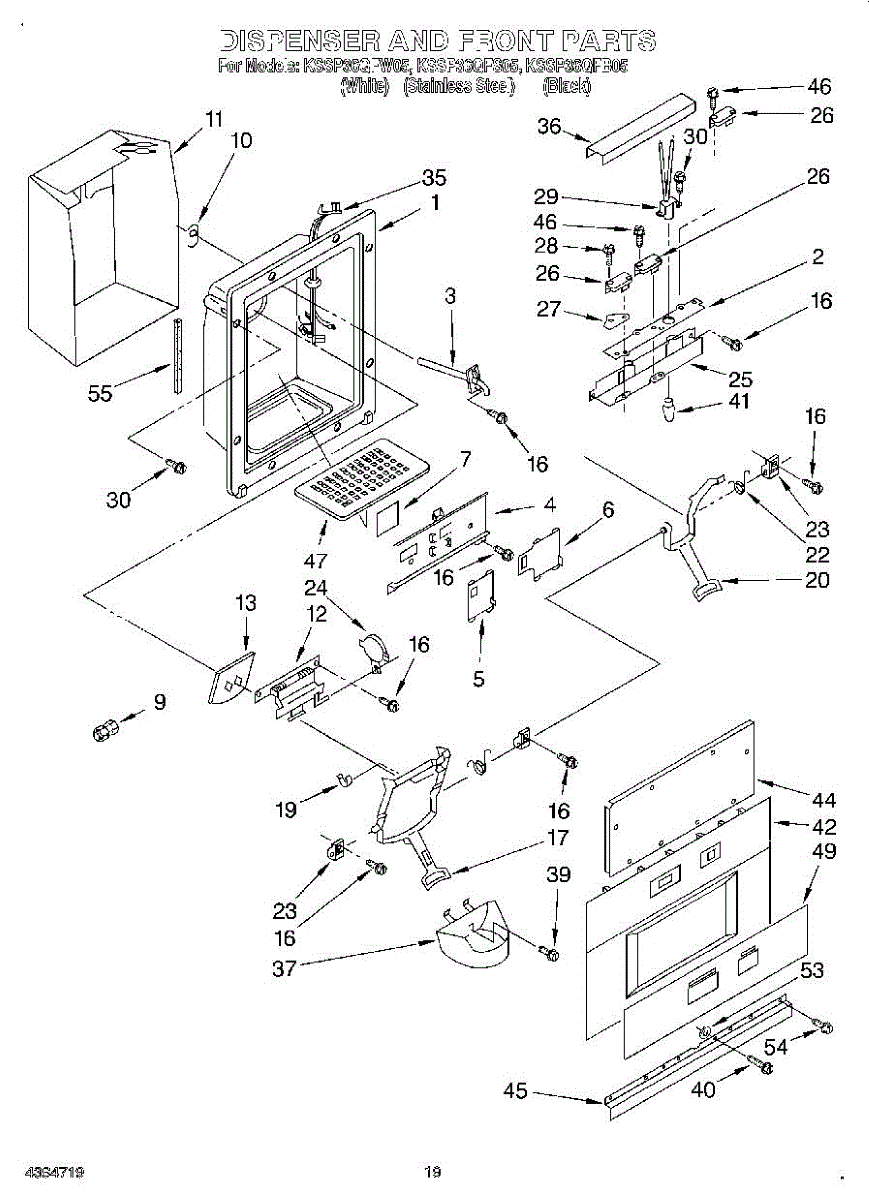

Parts for Kitchenaid KSSP36QFB05: 13 - Dispenser Front Parts

All other colors have been discontinued by Whirlpool.

The Water Tube Assembly is an OEM part for Whirlpool refrigerators. It supplies water from the inlet valve to the ice maker and water dispenser, ensuring a steady and reliable flow of water for ice production and drinking.

Causes of a bad water tube assembly can include blockages from mineral deposits, kinks or cracks in the tubing, or damage from regular use. If the tube becomes compromised, it can lead to inadequate water supply or leaks.

Symptoms of a bad water tube assembly include:

• Reduced or no water flow to the ice maker or dispenser
• Leaking water inside or outside the refrigerator
• Ice maker not producing ice
• Water dispenser not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This tube union connector joins two water or refrigerant tubes to restore a sealed flow path and stop leaks. It's a direct-replacement plumbing fitting used on refrigerators and ice/water systems. What it does

• Joins two sections of tubing to maintain a sealed water line connection.
• Restores proper water flow to the dispenser or ice maker when a damaged union causes leaks or loss of supply.
• Provides a threaded/press-fit junction to prevent drips and reduce pressure loss.
• Helps avoid water damage from a cracked or corroded tube joint.

• One tube union connector

• Turn off the water supply and unplug the appliance before starting work.
• Confirm tube sizes and connection type before installation; tighten fittings per manufacturer guidance to avoid overtightening.
• Inspect tubing ends for damage and cut squarely if needed for a proper seal.
• After installation, restore water and power, then check the connection carefully for leaks.

This replacement screw secures appliance panels and internal components. Installing a correct OEM fastener restores a tight fit, reduces rattles and vibration, and helps keep assemblies aligned so your machine operates smoothly.

• Fastens brackets, panels, ducts, or housings to the cabinet or frame
• Replaces missing, stripped, or corroded hardware
• Helps stop rattles, vibration, and loose or misaligned parts
• Maintains proper alignment for reliable operation

• Disconnect power; shut off gas and water before servicing
• Match this screw to the original location and hardware type used on your model
• Start threads by hand to avoid cross-threading; use the correct driver
• Snug only—do not overtighten, especially into plastic or thin sheet metal

White

An ice maker delay mechanism is the small timing device that staggers the steps of the ice-making cycle so each action happens in the right order. Replacing a worn unit helps restore steady, predictable ice production.

• Provides a brief, controlled delay in the ice maker cycle so components engage in the correct order
• Helps prevent short cycling or erratic operation
• Failure may result in no ice, intermittent ice, or stalls mid-cycle
• May be accompanied by repeated clicking or ticking from the ice maker head

• Disconnect power to the refrigerator and shut off the water supply before servicing
• Remove the ice maker assembly to access the delay mechanism
• Transfer any brackets or clips from the original part if required
• Align components carefully during reassembly to avoid bending any lever arms

The Micro Switch is an OEM part for Whirlpool refrigerators that is responsible for controlling the ice and water dispenser. The switch operates by responding to mechanical actions, like the pressing of the dispenser paddle or button to open or close to allow water and ice to be dispensed.

Symptoms of a bad Micro Switch include:

• The ice or water dispenser not functioning
• Intermittent operation of the dispenser
• Stuck dispenser preventing ice or water from stopping

Causes of a bad Micro Switch can include physical damage from heavy use, wear and tear over time, or electrical issues such as short circuits that impair the switch's function.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Screw: 8-16 x 3/8 inch.

White

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.
