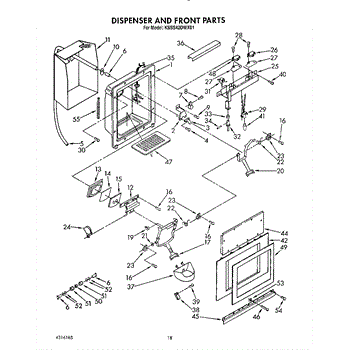

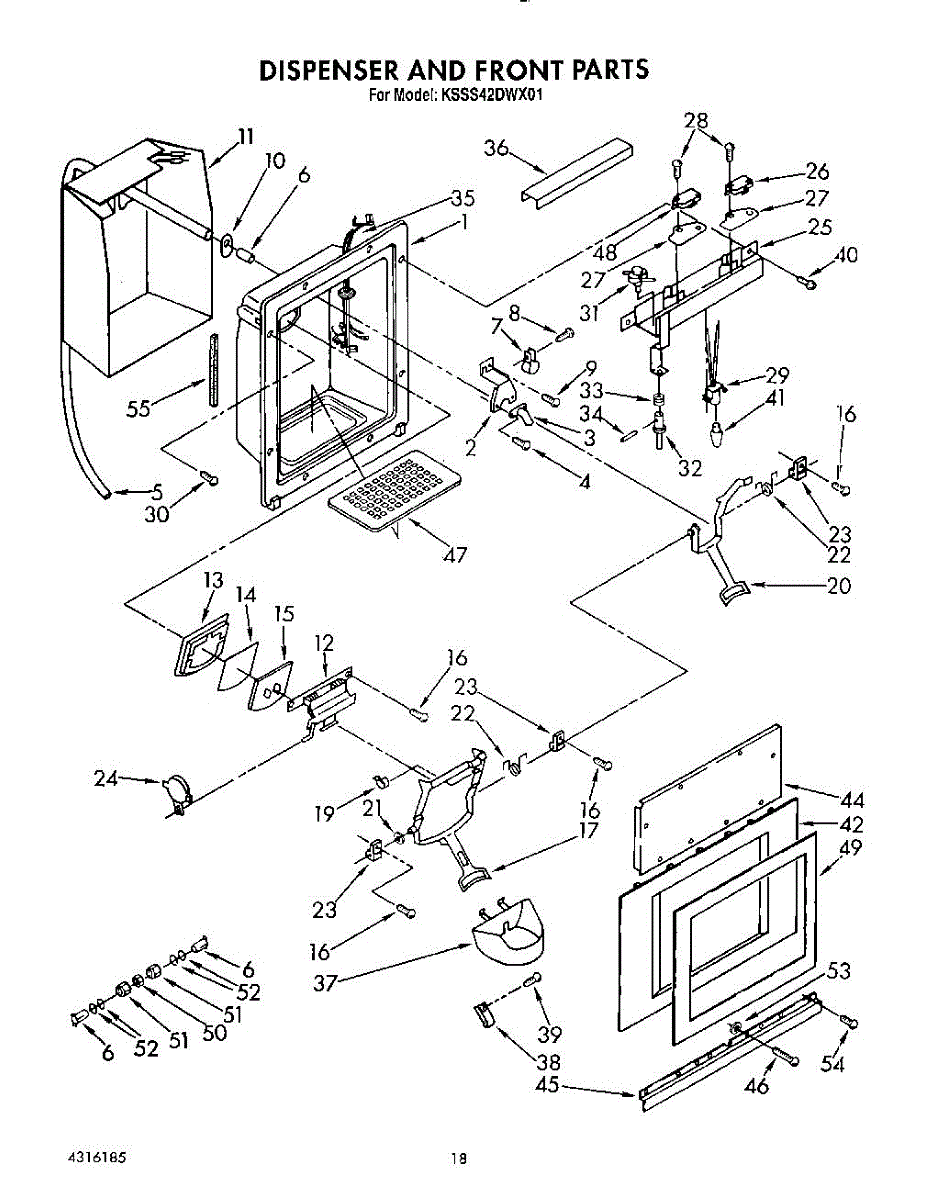

Parts for Kitchenaid KSSS42DWX01: 13 - Dispenser And Front Parts

All other colors have been discontinued by Whirlpool.

Water tube assembly supplies water from inlet valve to ice maker and dispenser in your refrigerator door. Replace if cracked, leaking, or broken.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

Secures water supply hoses to fittings, preventing leaks in ice makers and refrigerators. Replace when rusted, bent, or losing grip. Verify fit.

Size; 8-18 x 1/2 inch.

Size: 8-28 x 3/4 inch.

Secures panels, brackets, and internal components in your refrigerator. Replace missing, stripped, or corroded screws to restore tight assembly fit.

This is the small motor assembly that opens and closes the ice chute door on the refrigerator's dispenser. It activates when the dispenser lever is pressed, allowing ice to pass through, and closes afterward to keep cold air from escaping. Replace this part if the ice chute door does not open when dispensing, stays stuck open allowing cold air to leak out, or makes grinding noises during operation.

Screw: 8-16 x 3/8 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Illuminates the dryer drum for better visibility when loading and unloading. Replace when bulb burns out or fails to light. Confirm fit with your model.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.

This tube union connector joins two water or refrigerant tubes to restore a sealed flow path and stop leaks. It's a direct-replacement plumbing fitting used on refrigerators and ice/water systems. What it does

• Joins two sections of tubing to maintain a sealed water line connection.
• Restores proper water flow to the dispenser or ice maker when a damaged union causes leaks or loss of supply.
• Provides a threaded/press-fit junction to prevent drips and reduce pressure loss.
• Helps avoid water damage from a cracked or corroded tube joint.

• One tube union connector

• Turn off the water supply and unplug the appliance before starting work.
• Confirm tube sizes and connection type before installation; tighten fittings per manufacturer guidance to avoid overtightening.
• Inspect tubing ends for damage and cut squarely if needed for a proper seal.
• After installation, restore water and power, then check the connection carefully for leaks.

Replacement hex nut secures panels, trim, and brackets in refrigerators. Needed when original nut is worn, missing, or stripped, causing loose components.
