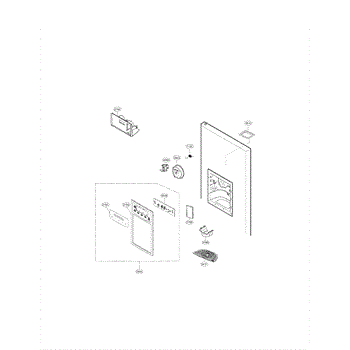

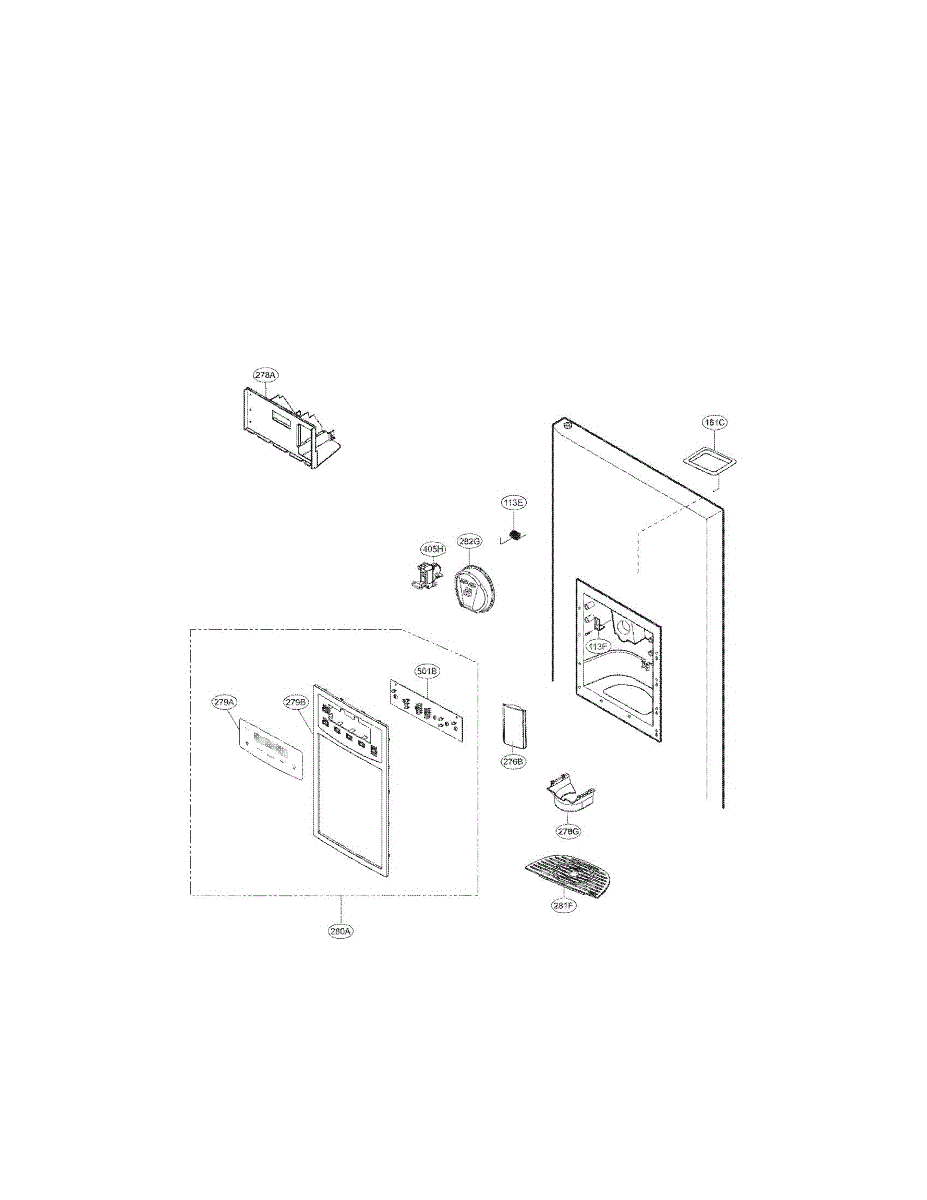

Parts for Lg LSC23924ST: Dispenser Part Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

The Lever Dispenser is an OEM part for LG refrigerators. It is the control mechanism responsible for dispensing crushed ice and water through the refrigerator door without opening it. The lever and dispensing components are designed to withstand frequent use while retaining smooth, reliable operation.

Causes of a bad lever dispenser can include worn parts inhibiting proper dispensing movement, cracks or damage reducing structural integrity, or mineral buildup affecting functionality over time.

Symptoms of a bad lever dispenser include:

• Difficulty or inability to dispense ice and water
• Leaks or drips around the dispenser area
• Loose, rattling, or unresponsive lever action
• The dispenser not activating or emptying the reservoir

This OEM LG part is also compatible with dispenser models featured on Kenmore side-by-side refrigerators.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This small torsion spring restores tension to the dispenser ice door lever so the chute door snaps closed after dispensing. It helps keep warm air and moisture out, reducing frost, condensation, and stray ice from the dispenser.

• Provides return tension for the dispenser ice chute door/lever
• Helps the chute door seal properly to limit warm air infiltration
• Worn or broken springs may cause the ice door to stay open or close slowly
• Symptoms can include frost/ice buildup in the chute, moisture at the dispenser, or cubes dropping/clumping

• Unplug the refrigerator or switch off the circuit breaker before servicing
• Remove the dispenser trim/panel to access the ice door mechanism; note spring orientation with a photo
• Use needle-nose pliers and eye protection—small springs are under tension and can snap
• After installation, cycle the dispenser to confirm the door opens/closes freely and seals

This funnel assembly directs detergent and rinse water from the dispenser into the dishwasher tub, helping consistent dispensing and preventing spills. Replace a cracked, clogged, or damaged funnel to restore proper detergent flow. What it does

• Channels detergent/rinse solution from the dispenser to the wash tub for normal cleaning cycles.
• Prevents leaks and spills that can occur from a broken or distorted funnel.
• Helps avoid uneven or missed dispensing that can lead to poor wash performance.
• Fits into the dispenser housing and works with the dispenser release mechanism.

• One funnel assembly.

• Disconnect power to the appliance before inspecting or servicing the dispenser.
• Remove the inner door panel or dispenser cover as needed to access the funnel; keep track of fasteners.
• Inspect and replace any worn seals or clips when installing the new funnel.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.
