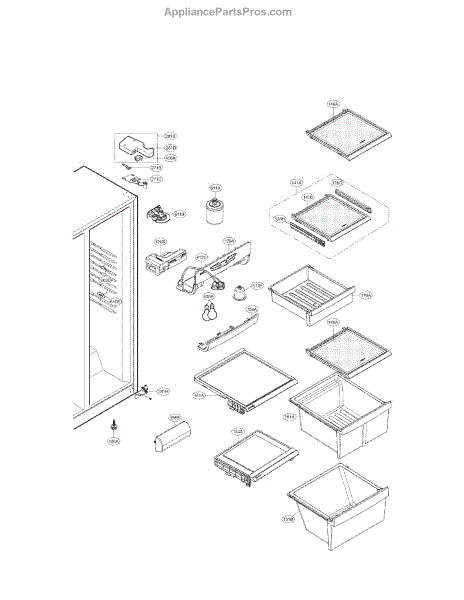

Parts for Lg LSC23924ST: Refrigerator Compartment Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

The Lever Dispenser is an OEM part for LG refrigerators. It is the control mechanism responsible for dispensing crushed ice and water through the refrigerator door without opening it. The lever and dispensing components are designed to withstand frequent use while retaining smooth, reliable operation.

Causes of a bad lever dispenser can include worn parts inhibiting proper dispensing movement, cracks or damage reducing structural integrity, or mineral buildup affecting functionality over time.

Symptoms of a bad lever dispenser include:

• Difficulty or inability to dispense ice and water
• Leaks or drips around the dispenser area
• Loose, rattling, or unresponsive lever action
• The dispenser not activating or emptying the reservoir

This OEM LG part is also compatible with dispenser models featured on Kenmore side-by-side refrigerators.

The Guide Rail is an OEM replacement part for LG refrigerator shelves. Running horizontally inside the refrigerator cavity, these durable rails smoothly guide shelf movement during height adjustment. This rail is for the left side.

Causes of faulty guide rails can include dents or damage occurring from heavy loads, as well as plastic degradation from prolonged use.

Symptoms include:

• Shelves difficult to pull out fully or reinsert
• Scratching or binding noises heard during adjustments
• Shelves unable to securely lock into place

Note: Per factory, Roller 4580JA3034A and screw 1SBZJA3004K no longer come with guide rail.

This OEM LG replacement is also compatible with select Kenmore refrigerators.

The Guide Rail is an OEM part for LG refrigerators. It is designed to support and guide the movement of refrigerator drawers, ensuring they slide smoothly in and out. This component helps in maintaining the proper alignment and functionality of the drawers, making it easier to access stored items.

Causes of a bad guide rail include wear and tear over time, excessive force or weight applied to the drawers, or accidental impact that causes cracks or bends in the rail. Ensuring the guide rail is in good condition is crucial for the smooth operation of refrigerator drawers.

Symptoms of a bad guide rail include:

• Difficulty in opening or closing drawers
• Drawers not staying aligned or securely in place
• Noticeable wobbling or uneven movement of the drawers
• Unusual noises when moving the drawers

This OEM LG part is also compatible with Sears/Kenmore.

Note: Per factory, Roller 4580JA3034A and screw 1SBZJA3004K no longer come with guide rail.

This Vegetable Tray Assembly is the removable crisper drawer insert that holds and organizes fresh produce in the refrigerator, helping contain spills and keep fruits and vegetables separated for easier access and cleaning. What it does:

• Replaces a damaged, cracked, or warped crisper tray to restore secure storage for produce
• Provides a flat, stable surface to support produce and smaller containers
• Helps contain minor leaks or spills, keeping the fridge floor cleaner
• Restores proper fit and sliding action of the crisper area when tray wear impedes operation

• Designed for simple drop-in replacement; remove crisper drawer to access tray
• Handle with care to avoid scratching or cracking the plastic during installation
• If the tray mounts to rails or clips, verify clips are intact before reinstalling
• Disconnect power or follow manufacturer safety guidance before working in the fridge

This tray assembly is the interior storage tray used in compatible refrigerators. It restores a secure, level surface for organizing food and containers when the original tray is cracked, damaged, or missing.

• Provides a stable surface to hold and organize items inside the compartment
• Fits onto the appliance's existing supports/rails for proper seating
• Replace when cracked, warped, or when support tabs are broken
• Common symptoms: broken or missing tray, won't stay in place, wobbles or tilts

• Disconnect power before servicing interior components
• Remove nearby items, then lift out the damaged tray
• Align the new tray with the guides/tabs and set fully into place—do not force
• Handle cold plastic carefully; allowing it to warm to room temperature can reduce the risk of cracking

This Tray Cover Assembly replaces a cracked, warped or missing tray cover to protect internal components and restore the appliance's original fit and finish. It provides a secure cover for the tray and helps contain spills and debris. What it does

• Covers and protects the underlying tray or compartment from spills and dirt
• Restores proper alignment and appearance to the tray area
• Helps prevent debris from falling into working components
• Commonly replaced when the cover is cracked, broken, or no longer seats properly

• Disconnect power to the appliance before starting any repair.
• Removal/installation may require basic hand tools; handle plastic parts carefully to avoid damage.
• Inspect surrounding components for damage while replacing the cover.

This lamp cover is the replacement plastic diffuser that protects the interior light and spreads illumination evenly inside the appliance. It restores a finished look and keeps the bulb shielded from spills and contact. What it does:

• Covers and protects the interior light bulb from moisture, food, and accidental contact
• Diffuses and softens the light for more even illumination
• Prevents loose debris from touching the bulb and reduces glare
• Useful when the original cover is cracked, discolored, or missing

• One lamp cover

• Disconnect power or unplug the appliance before servicing the light area
• Remove any screws or clips holding the old cover; handle plastic parts gently to avoid cracking
• Avoid touching the bulb with bare hands when replacing; allow bulb to cool first

The Lower Hinge Assembly is an OEM part for LG refrigerators. It is responsible for supporting the refrigerator door and allowing it to open and close smoothly. The hinge assembly ensures the door stays aligned and securely in place, preventing cold air from escaping and maintaining the efficiency of the appliance.

You should replace the lower hinge assembly if it becomes faulty. Causes of a bad lower hinge assembly can include wear and tear over time, excessive force or weight on the door, or damage from accidental impacts.

Symptoms of a bad lower hinge assembly include:

• Difficulty in opening or closing the door
• Door not sealing properly
• Squeaking or grinding noises when the door moves
• Door misalignment

This OEM LG part is also compatible with Sears/Kenmore models.

The water filter head holds the water filter and connects the water lines to the water filter. Approximate dimensions: 4.4" x 4.05" x 2.5"

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
