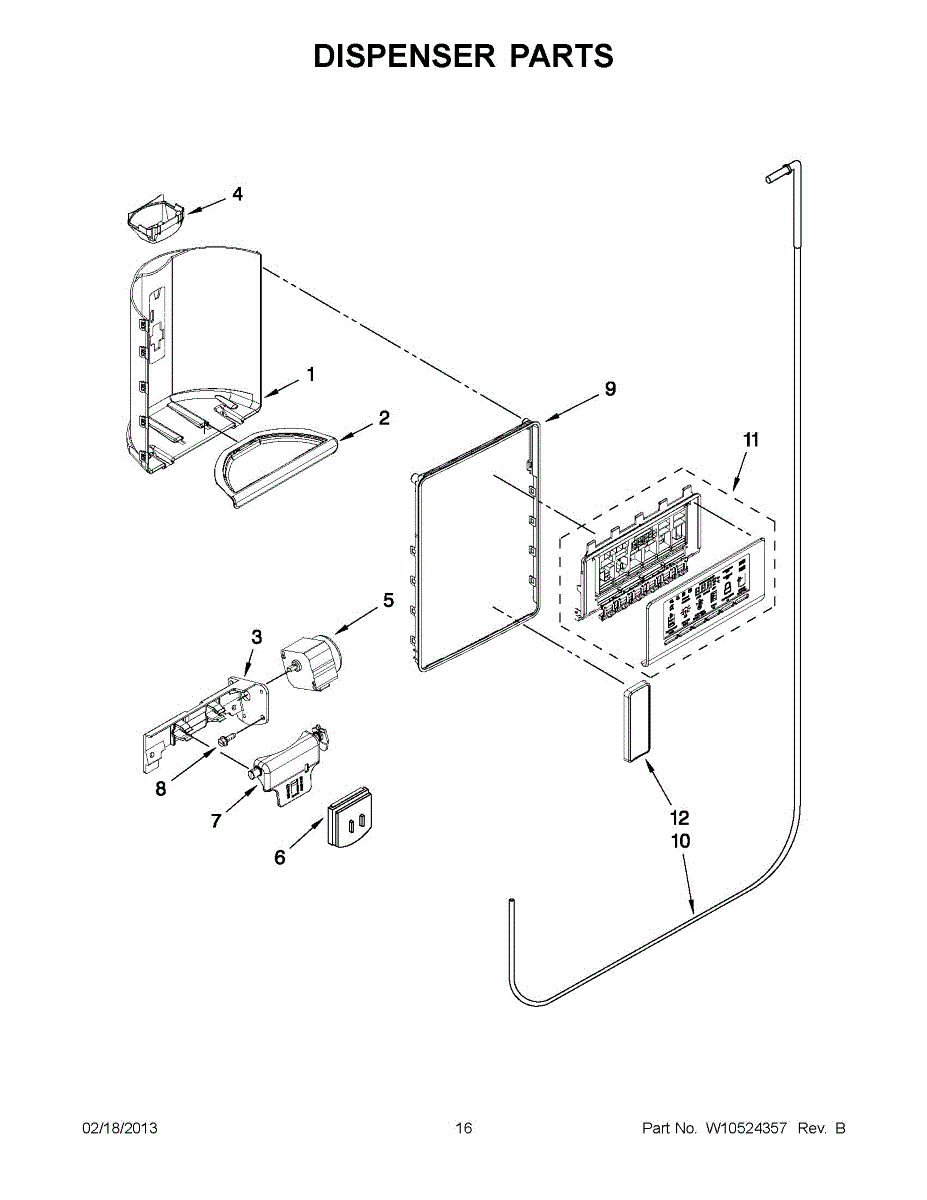

Parts for Maytag MSB27C2XAB00: 08 - Dispenser Parts

This drip tray catches and guides condensate or minor leaks away from the appliance base to help protect flooring and cabinetry. It fits beneath the appliance where small amounts of water typically collect. What it does:

• Collects and contains dripping or condensed water to prevent puddling under the appliance
• Channels moisture to a safe area to reduce risk of water damage to floors or surrounding cabinetry
• Helps identify leaks by localizing where water accumulates
• Useful for appliances that produce condensate or occasional drips during normal operation

• One drip tray

• Disconnect power to the appliance before moving or servicing it
• Slide the tray into place under the appliance base; ensure it sits flat and is centered
• Inspect tray for cracks or obstructions before reinstalling; replace if damaged

The Dispenser Drip Tray is an OEM part for Whirlpool refrigerators. It is a plastic tray located below the ice and water dispenser that catches any accidental spills or drips during use.

Symptoms of a bad drip tray can include:

• Ice or water accumulation under the dispenser area
• Overflow or leakage onto surrounding counter surfaces
• Stains or moisture damage below the refrigerator

Causes of drip tray issues occur from cracks, punctures, or breakage rendering it unable to hold liquid. Normal wear over extended use may also cause trays to develop leaks.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, and Kenmore brands.

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

This spigot directs water from the refrigerator's water/ice system to the dispenser or ice maker, restoring proper flow and containment. Replace a cracked or worn spigot to stop leaks and poor dispensing. What it does:

• Channels water from the internal water line to the dispenser or ice/ice-maker area
• Prevents leaks and directs flow into the dispenser or ice chute
• Can stop drips, spraying, or pooling caused by a damaged spigot
• Works as a simple replacement when the original is cracked, warped, or blocked

• One replacement spigot

• Disconnect power and shut off the refrigerator water supply before starting
• Remove access panels or bin(s) as needed to reach and remove the old spigot
• Inspect seals and gaskets; replace if damaged to ensure a watertight fit
• After installation, restore water and power, then check carefully for leaks

The Dispenser Pad is an OEM part for Whirlpool refrigerator dispensers. It attaches under the dispenser lever to activate water and ice functions with light finger pressure.

Symptoms of a bad dispenser pad include:

• Unable to dispense water or ice by pressing the lever
• Leaks or water drips around the dispenser area
• The dispenser mechanism making noises when engaged

Causes of a bad dispenser pad can be wear over time, tears in the rubber material, or failure of the electrical contacts on the pad.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dispenser Pad is an OEM part for Whirlpool refrigerator dispensers. It attaches under the dispenser lever to activate water and ice functions with light finger pressure.

Symptoms of a bad dispenser pad include:

• Unable to dispense water or ice by pressing the lever
• Leaks or water drips around the dispenser area
• The dispenser mechanism making noises when engaged

Causes of a bad dispenser pad can be wear over time, tears in the rubber material, or failure of the electrical contacts on the pad.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
