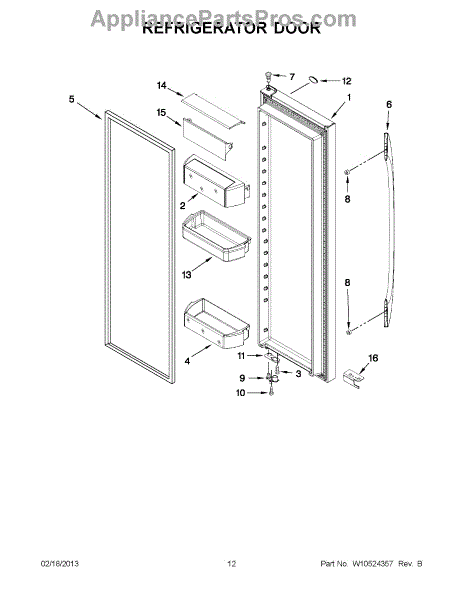

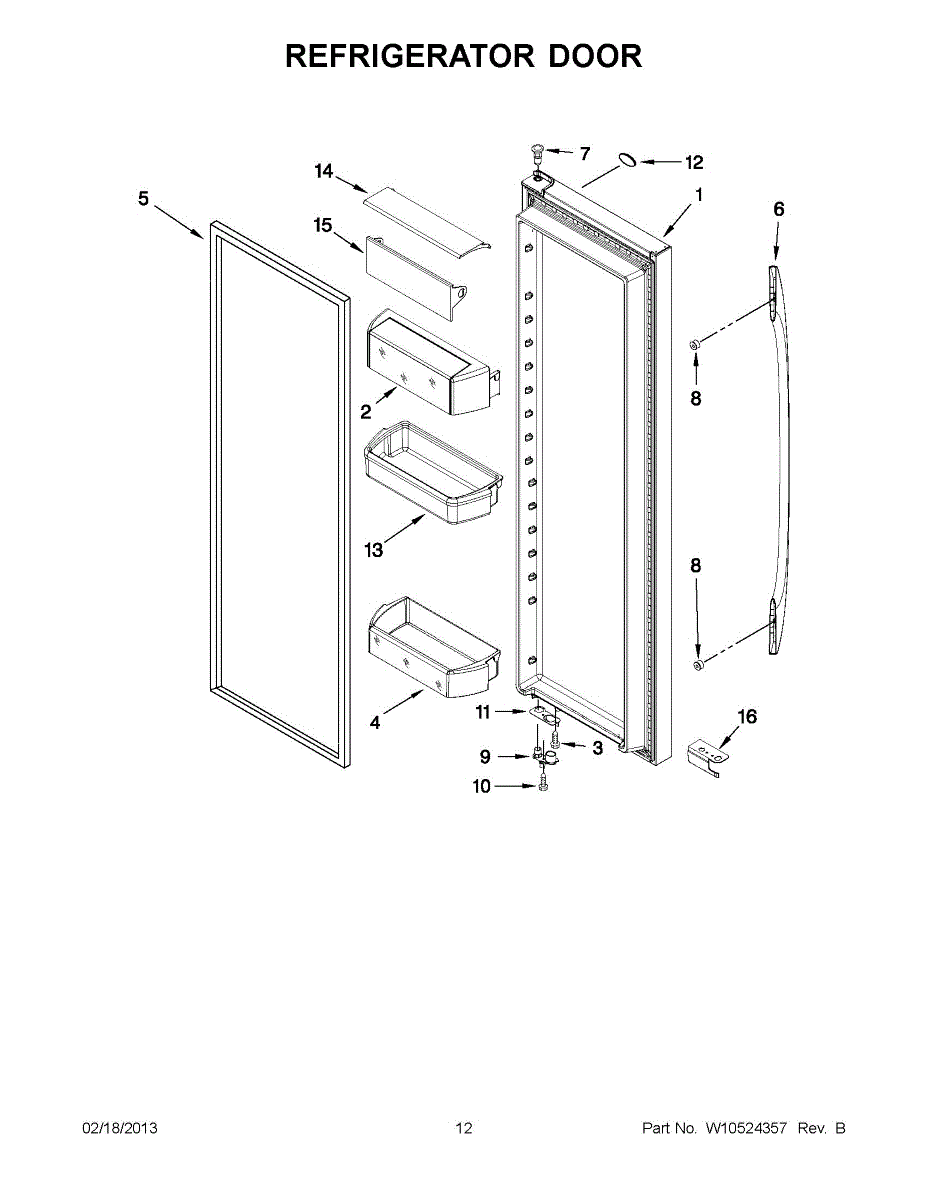

Parts for Maytag MSB27C2XAB00: 06 - Refrigerator Door Parts

The Door bin is an OEM replacement part for Whirlpool refrigerators. It is a component located inside the refrigerator door that provides storage for small items like condiments, eggs, or milk cartons. The door bin is designed with convenient dividers and slots to securely organize a variety of items within easy reach on the refrigerator door.

Causes of a bad door bin can include wear and tear over time, damage to the plastic material, or broken components like divider pieces.

Symptoms of a bad door bin include:

• Items falling through larger holes or cracks in the plastic
• Difficulty fitting various items inside the slots and compartments
• The entire bin sagging or collapsing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

This door shelf bin mounts to your refrigerator door to hold condiments, beverages, and small items. Replace a cracked or missing bin to restore organized storage and keep items secure when opening and closing the door.

• Provides additional door storage and organizes frequently used items
• Attaches to molded slots on the door liner; snaps in and out for cleaning
• Helps prevent containers from tipping or falling when the door moves
• Common failure symptoms: cracked plastic, broken tabs, bin won't stay seated, or missing bin

• Power off the refrigerator and remove items from the old bin
• Lift the old bin straight up and out; align the new bin's tabs with the door slots
• Press down firmly until it clicks and sits level; avoid over-flexing the plastic
• Confirm the bin is fully seated before loading items

Color: Beige

Color: Black

The Gasket-FIP (GRY) is an OEM part for Whirlpool refrigerators. This gray gasket forms a seal around the refrigerator or freezer door, ensuring a tight closure that keeps cold air inside and warm air out.

Causes of a bad gasket can include frequent opening and closing of the door, which can lead to wear and tear, exposure to extreme temperatures, or physical damage from mishandling.

Symptoms of a bad gasket include:

• Warm spots inside the refrigerator or freezer
• Excessive frost buildup
• Increased energy consumption
• The door not sealing properly or appearing misaligned

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This door closing cam thimble fits the refrigerator door hinge assembly. It creates the smooth ramp/detent action that helps the door self-close and seal properly, restoring consistent door movement when the original cam surfaces are worn.

• Provides the hinge cam action that pulls the door closed during the last inches of travel
• Helps keep the door aligned and reduces wobble at the hinge
• Typical symptoms of wear: door won't stay closed or bounces open, popping/clicking sounds, rough or uneven door swing, visible flat spots on cam surfaces
• Helps maintain a reliable gasket seal by guiding the door to its closed position

• Disconnect power before servicing; clear and support the door to prevent drops
• Remove hinge cover and fasteners; lift the door off the hinge as needed for access
• Replace the cam thimble on the hinge/door bracket; reassemble and tighten hardware
• Verify door alignment and full gasket contact after reinstallation

This thimble fits inside the refrigerator-compartment door cam and acts as a low-friction bushing on the hinge pin. It helps the door swing smoothly and close securely so the gasket can seal properly.

• Provides a smooth bearing surface between the hinge pin and RC door cam
• Supports proper door alignment and closing action
• Can reduce clicking/squeaking and rough feel during opening or closing
• Wear may show as door drop, poor self-close, or uneven door movement

• Disconnect power and remove items from the door before servicing
• Lift the refrigerator-compartment door off the bottom hinge to access the cam
• Remove the worn thimble from the door cam and press the new thimble fully into place
• Reinstall the door, verify smooth operation, and check the gasket seal

The Door Closure Cam is an OEM replacement part for Whirlpool refrigerators. It is a small lever located inside refrigerator doors that engages the latch bolt when closing. The closure cam ensures doors are securely fastened shut to maintain optimal cooling temperatures.

Causes of a bad closure cam can include worn or loose mounting points preventing engagement, cracked or broken lever components, or door latch mechanisms that inhibit full closure.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing fully or latching securely
• Cool air escaping around door edges
• Higher energy bills from excessive compressor run times
• Interior condensation or frost buildup from improper seals

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models

This 10-32 machine screw secures appliance components such as brackets, panels, and trim. Replace missing or stripped hardware to restore a tight, rattle-free fit and maintain proper alignment of the assembly.

• Fastens parts that require a 10-32 threaded fastener
• Helps prevent vibration, noise, and movement from loose hardware
• Restores correct fit and alignment after a screw is lost or damaged
• Common signs: loose panel/trim, rattling, or a missing/stripped screw

• Disconnect power and shut off water/gas as applicable before servicing
• Compare to the original and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping or damage
• Match thread size and length to your original fastener for proper fit

This replacement bracket secures and supports a component in your appliance. Replace a bent, cracked, or missing bracket to restore proper alignment and stable mounting, helping reduce vibration, rattling, and premature wear on connected parts. What it does:

• Holds the related component firmly in place
• Helps maintain correct alignment of the assembly
• Reduces unwanted movement, vibration, and noise
• Common signs it may be needed: loose or shifting component, rattling sounds, visible damage, or a missing bracket

• 1 bracket

• Disconnect power and shut off water or gas supply before servicing
• Wear cut-resistant gloves; brackets and surrounding panels may have sharp edges
• Note the original orientation and reuse existing fasteners as applicable
• After installation, verify alignment and secure fit per your model's parts diagram

The Bin Assembly Door, RC, Shallow is an OEM part for Whirlpool refrigerators. It is designed to fit on the refrigerator door and provides additional storage space for smaller items like condiments, jars, and cans. This bin assembly helps in organizing the refrigerator contents efficiently and makes them easily accessible.

Common causes of a bad bin assembly can include cracks or breaks from repeated use, damage from overloading, or wear and tear over time.

Symptoms of a bad bin assembly include:

• Cracks or visible damage on the bin
• Difficulty in fitting the bin securely on the door
• Items falling out or not staying in place
• Reduced storage capacity due to a broken bin

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement lid fits the refrigerator utility/bin drawer and restores a secure cover to keep stored items contained and organized. It replaces cracked, broken or warped lids so the bin functions as intended. What it does:

• Covers and protects items stored in the utility/bin drawer
• Replaces lids that are cracked, chipped or no longer latch properly
• Helps prevent items from shifting or falling into other compartments
• Restores a proper seal and alignment of the utility/bin cover

• Unplug or disconnect power to the appliance before servicing for safety
• Remove the bin/drawer per the manufacturer instructions to access the lid
• Align hinge tabs or mounting points and snap or fasten the lid into place
• Handle carefully; plastic edges or mounting points can be fragile during installation

Color: clear. Measures about 13 inches wide by 5 inches high.

This cover-wire protects and organizes a machine's wire harness to help prevent chafing and accidental contact with hot or moving parts. It keeps wiring routed and out of the way for safer, more reliable appliance operation. What it does:

• Shields wiring from abrasion and contact with sharp edges or moving components
• Helps prevent intermittent electrical faults caused by rubbing or pinched wires
• Keeps harnesses neatly routed for easier service and reduced strain on connections
• Useful when you see visible wear on insulation or wires rubbing against chassis parts

• One cover-wire as shown

• Disconnect power to the appliance before inspecting or replacing wiring components
• Verify correct routing and orientation; secure into existing clips or mounting locations
• Do not splice, modify, or stretch the part; replace if damaged
• If you see melted insulation, burnt wiring, or connector damage, replace affected wiring/components per OEM guidance
