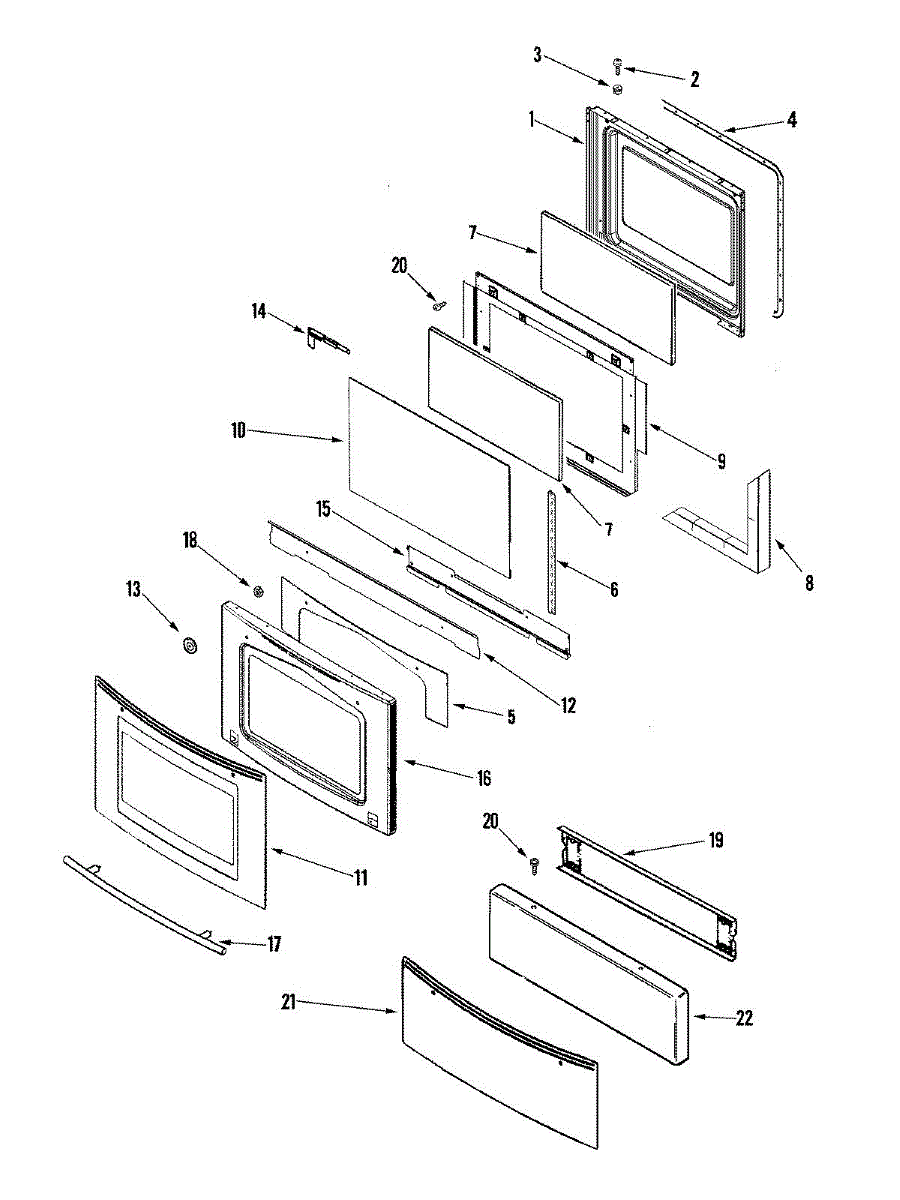

Parts for Jenn-Air JDS9860BDW: 05 - Door / Access Panel (Ser Pre 11) Parts

Color: White. For black order WP98008545. For biscuit order 98008169.

Color: Black. Round

The Oven Door Gasket is an OEM part for Whirlpool ovens. This gasket is essential for maintaining a proper seal around the oven door, preventing heat from escaping and ensuring efficient cooking performance. The gasket measures approximately 76.66" in total length with a diameter of about 0.47", it features 25 built-in metal retaining clips.

Causes of a bad oven door gasket can include regular wear and tear, exposure to high temperatures over time, or accidental damage from cleaning or handling. A compromised gasket can lead to heat loss, which affects cooking times and energy efficiency.

Symptoms of a bad oven door gasket include:

• Heat escaping from the oven door
• Longer cooking times
• Visible cracks or tears in the gasket
• The oven door not closing properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This glass mounting bracket secures the oven door glass to the door frame, restoring a stable, properly aligned door and helping prevent rattling or loose glass. Designed to replace a worn, broken, or missing bracket. What it does:

• Holds the oven door glass in place so the door closes and seals correctly
• Prevents glass from shifting, rattling, or coming loose during use
• Restores proper alignment after a cracked, bent, or missing bracket
• Works with the door assembly to maintain safe, reliable operation

• Disconnect power to the appliance before beginning any repair; allow surfaces to cool.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Replacement typically requires partial door disassembly; keep fasteners organized for reassembly.
• Tighten fasteners securely but avoid over-torquing; inspect surrounding clips and gaskets while installing.

The Oven Inner Door Glass is an OEM part for Whirlpool ovens. The glass component is specially tempered to withstand high heat inside the oven cavity.

Size: 20 5/8 inches x 13 1/8 inches. For the glass measuring 22 3/8 inches x 14 inches order 74004857

Causes of a bad oven inner door glass can include small cracks or chips developing from regular door openings/closings, or microscopic defects that enlarge under repeated thermal cycling. Damage from accidental impacts is also possible.

Symptoms of a bad Oven Inner Door Glass include:

• Reduced visibility into the oven due to fogging, steam, or condensation buildup
• Cracks or fractures compromising the structural integrity of the glass
• Leaks or seal failure allowing heat to escape from around the door frame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 22 3/8 inches x 14 inches. For the glass measuring 20 5/8 inches x 13 1/8 inches order 74003645.

Left hand side

Color: White
