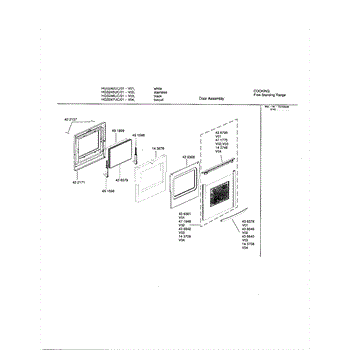

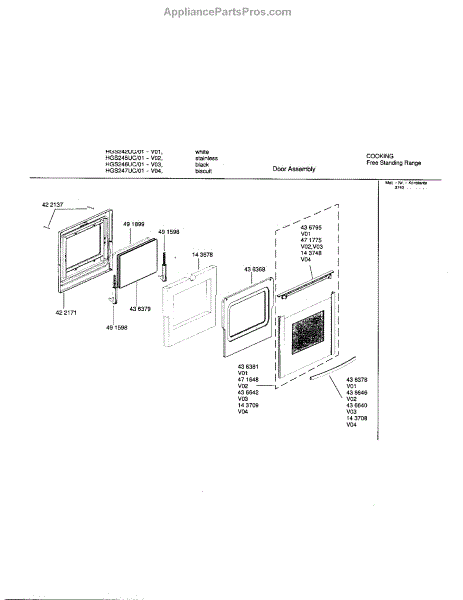

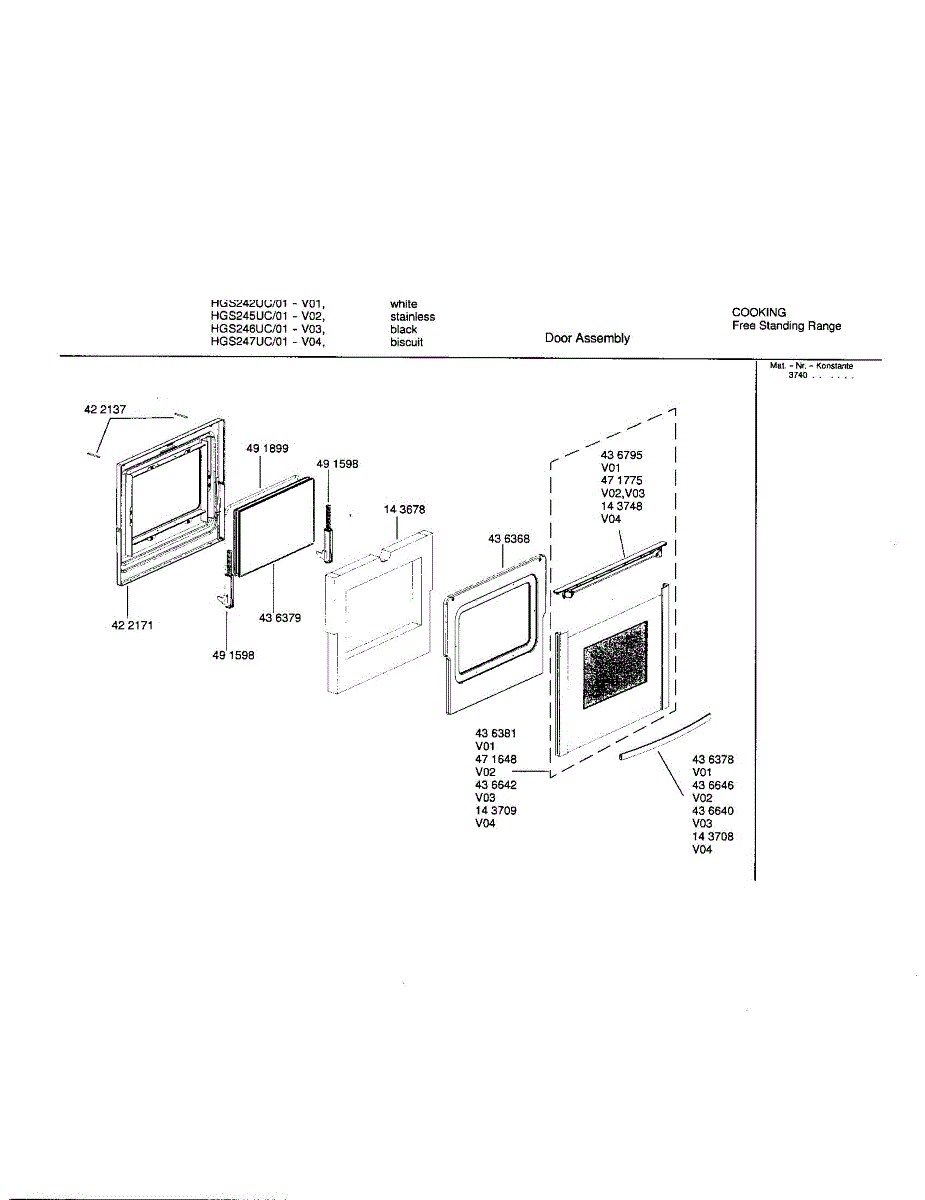

Parts for Bosch HGS247UC/01: Door Assembly Parts

This insulating part provides electrical and thermal isolation for internal appliance components, helping prevent shorting and reducing heat transfer where wiring or terminals meet sensitive parts. Use it to restore safe operation after damage or wear. What it does:

• Provides electrical insulation for terminals, connectors, or wiring to prevent shorts and arcing
• Reduces heat transfer between hot components and nearby wiring or plastic parts
• Helps maintain safe clearances and protects against chafing or contact-related failures
• Commonly replaced when cracked, melted, burned, or otherwise compromised

• One insulating part

• Always disconnect power (unplug appliance or switch off breaker) before servicing
• Verify correct orientation and seating; do not force the part into place
• Inspect surrounding wiring and terminals; replace any damaged connectors or wires

This inner door is the dishwasher's inner panel that supports the door assembly and helps contain water and steam during cycles, restoring a secure, finished door surface. It replaces damaged or corroded inner door panels to improve sealing and appearance. What it does:

• Serves as the interior face of the dishwasher door and provides structural support for inner components
• Helps maintain a watertight seal and prevents leaks from the door area
• Replaces dented, cracked, or corroded inner panels that can trap moisture or cause cosmetic damage
• Restores proper alignment so the door closes and latches correctly

• 1 inner door panel

• Disconnect power and water supply before starting any repair
• Handle panel edges carefully; use gloves to avoid cuts and protect finish
• Installation typically requires removing the outer door panel and disconnecting inner fasteners—keep hardware organized for reassembly

This heat shield is a replacement protective panel that helps block and deflect heat away from nearby components for safer operation and longer component life. It restores the original heat barrier where a damaged or missing shield allows excess heat exposure. What it does:

• Deflects and disperses heat away from wiring, insulation, and nearby plastic or sensitive parts
• Prevents heat-related charring, warping, or premature failure of adjacent components
• Reduces the risk of hot spots that can cause burning smells or visible scorch marks
• Restores the appliance's original thermal protection when the existing shield is bent, corroded, or missing

• One heat shield panel

• Always disconnect power (and gas if applicable) before servicing the appliance
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Verify proper orientation and secure all fasteners to restore original clearance and airflow

This glass front panel is the exterior replacement glass that restores the appliance's finished look and protects the underlying door and control area from scratches and wear. It fits into the door assembly to provide a clean, glossy surface. What it does:

• Replaces cracked, chipped, or heavily scratched front/door glass to restore appearance
• Protects internal components and trim from direct contact and debris
• Helps keep the door surface smooth and easy to clean
• Restores a secure fit when broken or loose glass affects the door finish

• One glass front panel

• Disconnect power to the appliance before starting any repair
• Handle glass with gloves and protective eyewear to avoid cuts
• Installation typically requires removing the door trim or bezel—follow the OEM service instructions for your model
