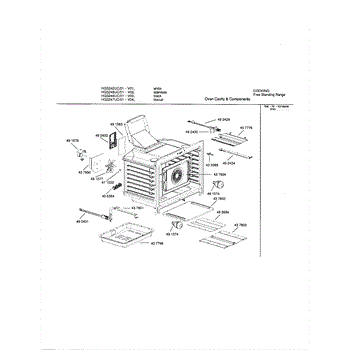

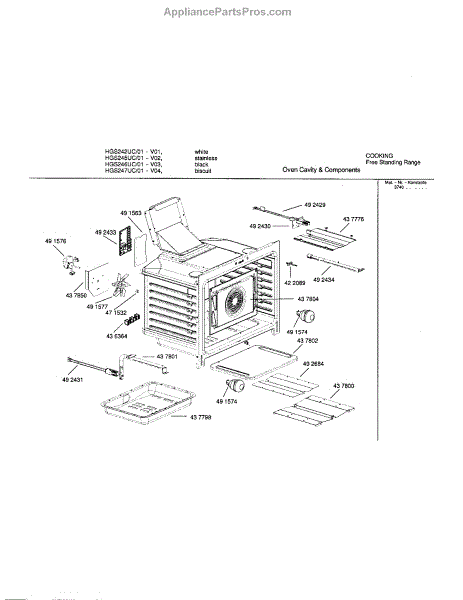

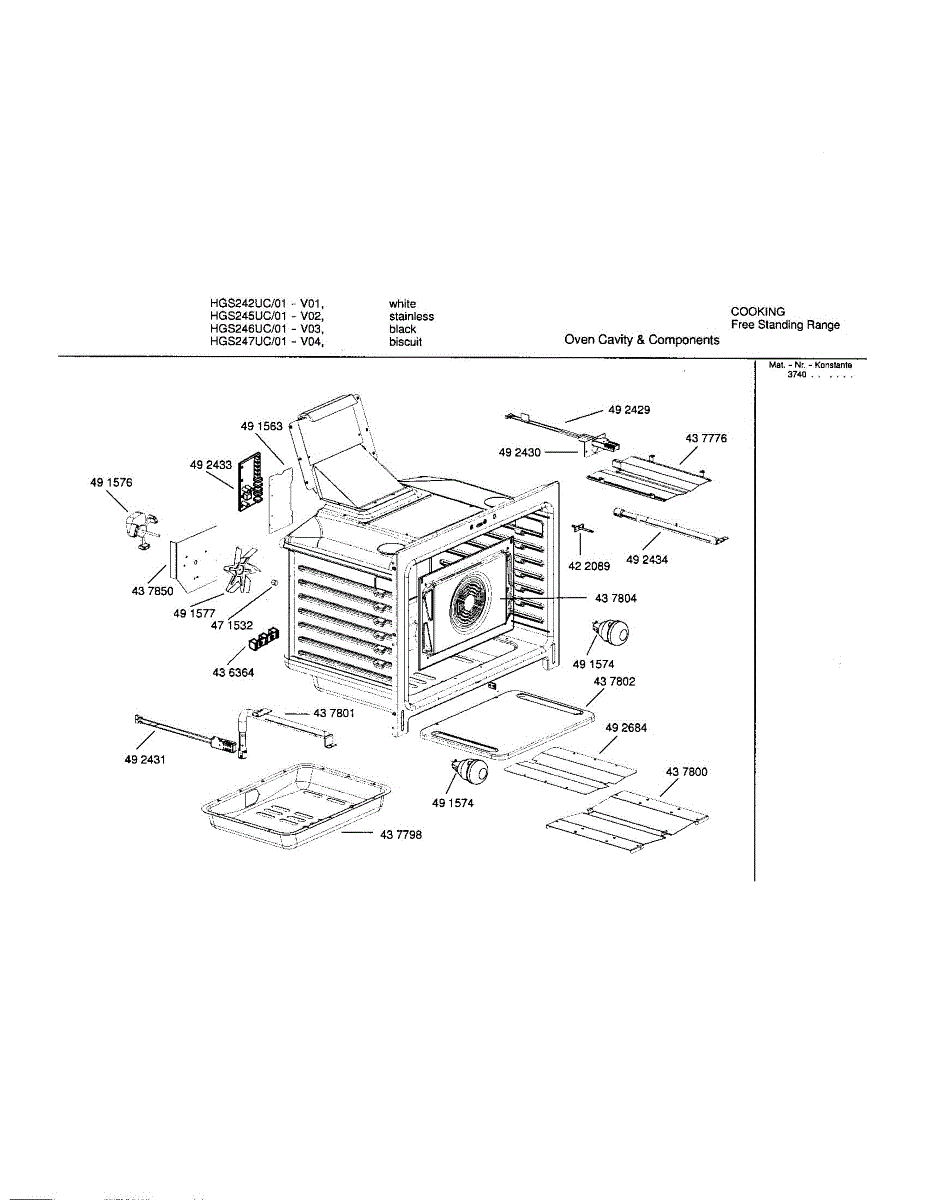

Parts for Bosch HGS247UC/01: Oven Cavity Components Parts

The Sensor is an OEM part for Bosch ovens and ranges. It detects and monitors the actual interior temperature to maintain precise baking and roasting conditions.

Causes of a bad temperature sensor can include wear from prolonged heat exposure within the oven cavity. Physical damage, moisture intrusion or circuitry malfunctions may also lead to sensor failure over time.

Symptoms of a bad oven temperature sensor include:

• Inability to accurately read or achieve set target temperatures
• Fluctuations in readings displayed
• Cooking modes like bake and broil functioning abnormally

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement burner head restores a cooktop's surface burner so you get an even, controllable flame for stovetop cooking. Designed as a direct-fit OEM replacement when the original burner is damaged, corroded, or burned through. What it does

• Directs and shapes the gas flame for even heating across pots and pans.
• Replaces cracked, warped, or corroded burner heads that cause uneven cooking.
• Helps correct low or irregular flame patterns and poor ignition related to a damaged head.
• Works with the existing burner cap and ignition system when undamaged.

• Shut off the appliance's gas supply and power before starting any work.
• Remove grates and burner caps, then lift out the old burner head; align and seat the new head fully.
• Inspect surrounding burner cap, igniter, and seals; replace any damaged components to ensure proper function.

This service access cover protects internal components and wiring while keeping the appliance's exterior neat. It restores a clean appearance and helps prevent accidental contact with internal parts during normal use. What it does:

• Protects internal components, connectors and wiring from dust and debris
• Helps reduce risk of accidental contact with electrical parts
• Restores the appliance's finished look after repairs or maintenance
• Useful when replacing or servicing nearby components that require the cover removed

• Disconnect power (unplug or switch off circuit breaker) before starting any work
• Remove and reinstall using the factory mounting clips or screws; avoid forcing the cover to prevent breakage
• Handle plastic tabs gently—inspect tabs and mounting points for damage before final install

This is a replacement nut used to secure internal appliance components. It restores proper fastening so assemblies stay tight and reduces noise or movement caused by loose hardware. What it does:

• Secures brackets, trim or internal components to prevent parts from shifting
• Stops rattling or vibration caused by a missing or loose nut
• Restores proper fastening after maintenance or repair
• Helps maintain correct alignment of the secured component

• Disconnect power and water before accessing internal parts
• Use appropriate hand tools and a firm grip; avoid power tools that can over-torque
• Do not overtighten — snug until secure to avoid stripping threads
• Replace any corroded or damaged mating hardware for a lasting repair

Restore clear visibility inside your oven with this oven lamp assembly. It replaces a failed or damaged light unit so you can check cooking progress without opening the door and losing heat.

• Illuminates the oven cavity during baking and broiling
• Replaces a cracked lens, burned socket, or damaged lamp housing
• Can help fix a light that won't turn on, flickers, or is intermittent
• Maintains visibility without repeated door openings

• Disconnect power at the breaker and allow the oven to cool completely before service.
• Remove oven racks for working space; access the lamp area per your model's service instructions (from inside the cavity or the rear panel).
• Handle glass components carefully; if transferring a bulb, avoid touching the glass directly.
• Restore power and test the light before reinstalling racks and returning the oven to service.

The Convection Fan Motor is an OEM component specifically designed for Bosch combination and convection steam oven ranges. Located within the oven cavity, it powers the convection fan and circulation of hot air.

Symptoms of a bad convection motor include:

• Failure to achieve even heat distribution within the oven
• Loud grinding noises or vibrations from the fan
• Inability to select convection cooking modes
• Burning smells indicating possible overheating

Causes of failure may involve normal wear over extended use. Blocked ventilation from food debris could overload the motor. Accidental liquid spillage presents corrosion risks.

Replacing with this genuine Bosch motor restores essential airflow. Compatible with 500 series models, it features a permanently lubricated design for durable performance. Backed by Bosch quality, this convection replacement ensures reliable cooking for years to come. It is also compatible with Thermador and Gaggenau ranges.


The Ignition Device is an OEM component specifically designed for Bosch gas ranges. This device is responsible for generating the spark needed to reliably light the burners on the cooktop.

Symptoms of a faulty ignition device include:

• Inconsistent or intermittent burner ignition
• Small flames that do not spread fully across burners
• Complete failure of one or more burners to light
• Burners extinguishing unexpectedly during use

Causes of ignition device problems tend to be worn over time from repeated use. Exposure to moisture, residue buildup, or physical impacts can also potentially damage sensitive electronic components.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore gas ranges and cooktops.

The Bake Igniter is an OEM part for Bosch wall ovens and ranges. Located at the bottom of the oven cavity, it generates the radiant heat needed to initiate the bake burners.

Causes of a bad bake igniter can include failure of the delicate calrod-style heating element from prolonged high-temperature exposure over time.

Symptoms of a bad bake igniter include:

• Inability to ignite or maintain ignition of the bake burners
• Improperly or unevenly heated oven cavity
• Cool or cold spots appearing on bake results
• Igniter glows, but fails to ignite

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement surface burner restores proper heat delivery on compatible cooktops, letting you cook reliably and maintain even heat across cookware. Designed to match the original burner shape and mounting for straightforward replacement. What it does

• Provides the cooking surface where gas/heat contacts cookware for normal operation
• Replaces a cracked, warped, or damaged burner that causes uneven heating
• Fixes burners that fail to ignite or produce an irregular flame when the valve is working
• Restores safe, stable flame pattern and consistent cooking performance

• One replacement burner

• Turn off power and gas supply before removing or installing the burner; follow all safety precautions
• Remove grates and any trim to access mounting screws or clips; keep track of fasteners
• Compare the new burner to the old one for correct size and burner port arrangement before installing
• If you smell gas after installation, shut off supply, ventilate the area.
