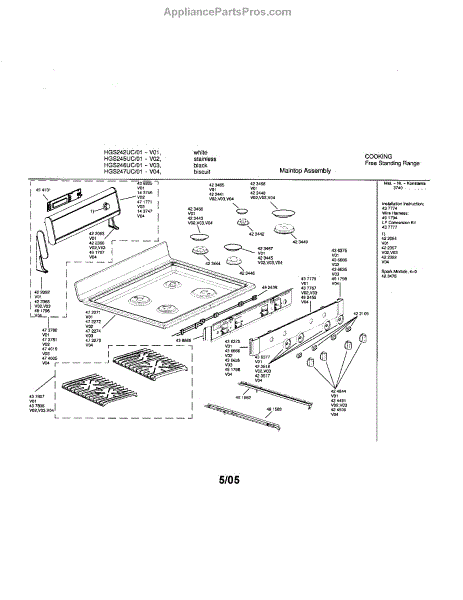

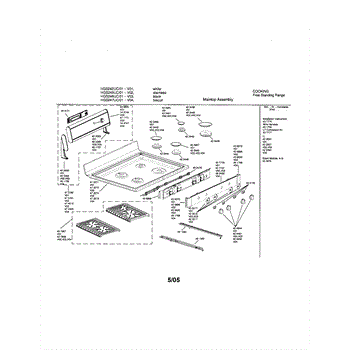

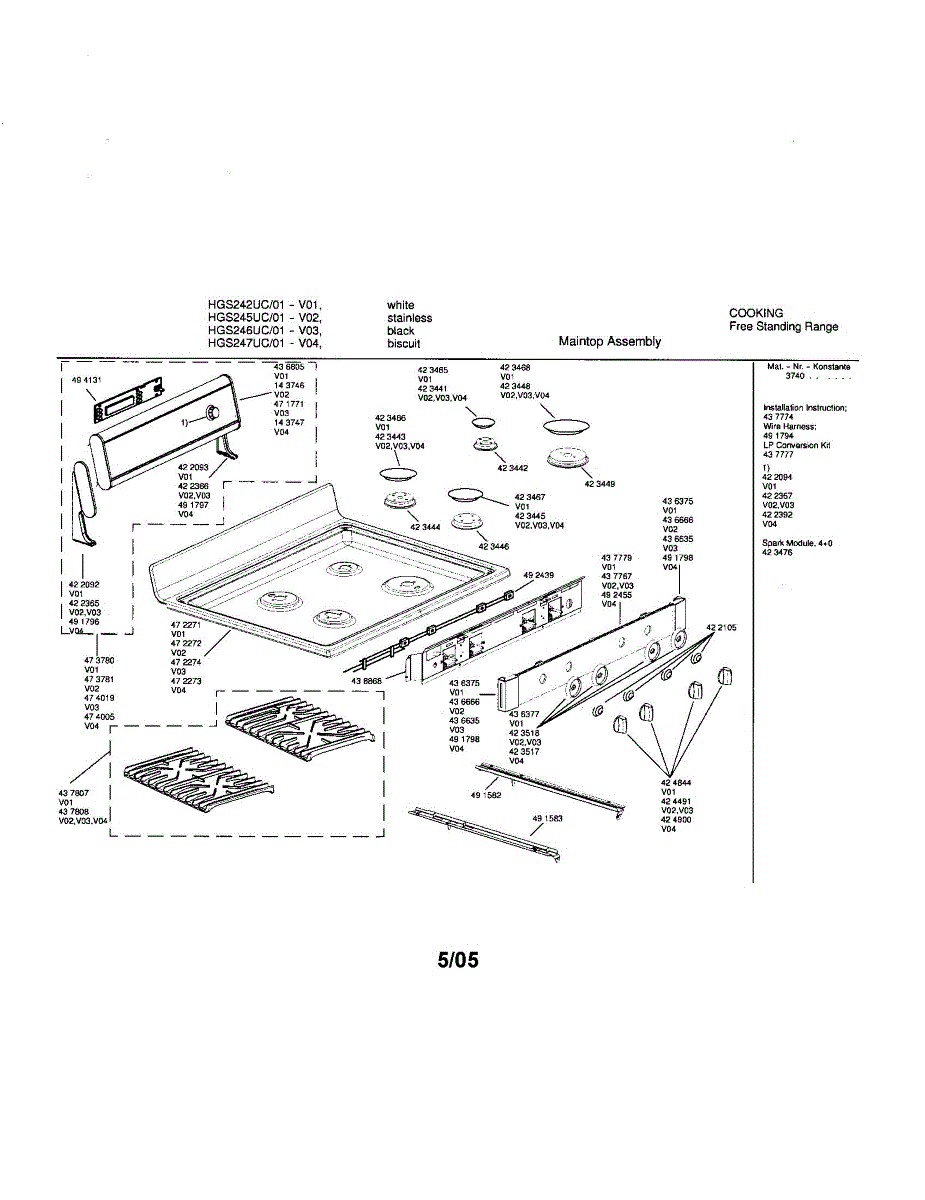

Parts for Bosch HGS247UC/01: Maintop Assembly Parts

This replacement control knob restores tactile grip and selector control for compatible Bosch appliances, making it easy to turn settings and operate controls. A simple, like-for-like part to replace a worn, cracked, or missing knob. What it does:

• Provides a secure grip for turning a control shaft or selector
• Replaces damaged, cracked, or stripped knobs that won't turn or stay set
• Restores proper user input when original knob is loose or missing
• Matches OEM fit and splines for direct replacement when correct part number is used

• Disconnect power to the appliance before installation for safety.
• Remove the old knob by pulling straight off the control shaft; align splines and press the new knob firmly into place.
• If applicable, retain any small metal insert or set screw from the old knob and reinstall.

This burner housing is the metal mounting and enclosure that secures a gas burner and its ignition components, restoring proper burner alignment and stable flame control for safe cooking. Use to replace worn, rusted, or damaged housings. What it does:

• Holds and positions the burner head, electrode/igniter, and associated fittings for correct ignition and flame shape
• Shields and directs gas flow around the burner for consistent combustion
• Prevents burner wobble and helps maintain safe clearances between the flame and appliance cabinet
• Commonly replaced when the housing is bent, corroded, cracked, or causing ignition/misfire issues

• One burner housing assembly

• Turn off gas supply and disconnect power to the appliance before beginning work
• Only attempt installation if you are comfortable with gas appliance repair
• Inspect and replace any worn gaskets, screws, or mounting hardware as needed; ensure proper alignment of the igniter/electrode
• After installation, check for gas leaks and verify correct ignition and flame behavior before normal use

This burner housing secures the surface burner assembly on compatible gas cooktops and ranges, restoring proper burner alignment and stable flame performance. It replaces damaged or warped housings that cause burner wobble or inconsistent ignition. What it does

• Supports and positions the burner head and cap for correct flame pattern
• Aligns the igniter/electrode and maintains clearance from other components
• Helps prevent burner wobble, misalignment, and uneven heating
• Use when housing is cracked, corroded, bent, or otherwise damaged

• Shut off gas supply and power to the appliance before starting work
• Remove grates and burner caps to access the housing; keep track of fasteners
• Replace with the exact OEM part and secure fasteners without over-tightening

This burner cap is the top piece that sits over a gas cooktop burner to help evenly distribute flame and protect the burner head. It restores proper flame shape and improves cooking performance on compatible gas cooktops. What it does:

• Covers the burner head to direct and stabilize the gas flame for even heating
• Protects burner ports from spills, food debris, and damage
• Helps maintain correct burner clearance and flame pattern for safe operation
• Commonly used when caps are cracked, warped, chipped, or missing

• One replacement burner cap (single)

• Install on a cool, unlit cooktop; ensure burner head and cap align and sit flat before use
• No special tools typically required; hand-seat cap and test ignition on low flame
• Follow appliance manufacturer safety instructions; disconnect gas/power per model guidance when servicing

This burner housing secures and positions the cooktop's top burner components for stable ignition and even heat. Replacing a damaged housing restores proper burner alignment and helps prevent loose parts that affect flame performance. What it does:

• Holds the top burner head, igniter, and related components in the correct position
• Maintains proper alignment for reliable ignition and a steady flame
• Replaces bent, cracked or corroded housings that can cause loose burner parts or irregular flame
• Works with existing burner caps, heads, and igniters

• Turn off the appliance and disconnect gas and power before servicing
• Inspect and replace any worn gaskets, seals, or fasteners when reinstalling

This panel frame is the front trim piece that restores the exterior appearance and edge finish of the appliance door. It replaces damaged, cracked or loose trim to help the door sit and look right. What it does:

• Covers and protects the outer edge of the appliance door and control area
• Restores a secure, flush fit when the original trim is cracked, bent or warped
• Helps prevent dirt and moisture from getting behind the door front where components sit
• Improves the appliance's appearance when the original panel shows cosmetic damage

• Disconnect power to the appliance before starting any repairs
• Removal typically requires opening the door and removing the inner door panel or retaining screws; handle panels carefully to avoid scratching
• Retain and reuse any original clips or screws unless replacement hardware is specified

This replacement inner door trim frame restores the structural support and finished edge of the appliance door, helping hold the inner panel and controls securely for correct door fit and appearance. What it does:

• Replaces a cracked, warped or damaged inner door frame so the door closes and seals properly
• Provides mounting support for the inner door panel and internal components
• Prevents rattling or misalignment caused by broken or bent trim
• Restores the finished edge around the door opening for a clean appearance

• One inner door trim frame

• Disconnect power to the appliance before starting any repair
• Removal of the outer door panel and/or inner door panel is usually required; keep screws and fasteners organized
• Handle frame edges carefully to avoid cuts and protect finish during installation
• If trim uses clips or adhesive, replace any worn fasteners or sealant per manufacturer guidance

This mounting bracket secures appliance components in place to restore proper alignment and stability. It's a simple replacement part that helps reduce rattling and supports correct panel or assembly positioning. What it does:

• Secures a panel or assembly to the appliance frame to prevent movement and vibration
• Restores proper alignment for doors, panels, or internal components
• Helps stop rattling, noises, or loose components that occur when a support bracket fails
• Provides a direct mechanical replacement—no electrical function

• One replacement mounting bracket

• High-level: remove power and water to the appliance before starting repairs
• Use basic hand tools; keep fasteners from the original part for reinstallation unless new ones are supplied
• If the bracket mounts a door or heavy panel, support the panel during removal and reinstallation to avoid damage

This cable harness provides the factory wiring connections needed for proper electrical communication between controls and components. It restores reliable signal and power routing to help the appliance run as designed. What it does:

• Routes power and control signals between the control board and internal components
• Replaces damaged, frayed, or corroded wiring that can cause intermittent operation
• Helps resolve symptoms such as unresponsive controls, failed cycles, or error codes tied to wiring faults
• Matches OEM connector types and lengths for a direct-fit replacement

• Disconnect power (unplug or shut off circuit breaker) before starting work
• Inspect connector tabs and wire insulation; align connectors fully to avoid loose contacts
• Remove any panels required for access and secure wiring away from moving parts and sharp edges
