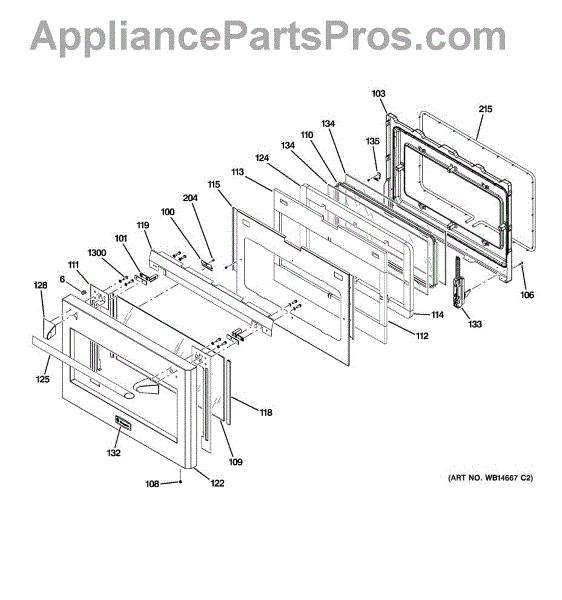

Parts for Ge ZDP304LP2SS: 06 - Door Assembly Parts

This small set screw secures components inside your refrigerator. Replacing a missing or stripped set screw restores a tight, reliable hold so attached parts stay aligned and are less likely to loosen or rattle during use.

• Fastens an attached part to its mounting point to prevent movement or slipping
• Helps maintain proper alignment of handles, brackets, or trim pieces
• Reduces wobble, vibration, and rattling noises caused by loose hardware
• Replaces missing, stripped, or corroded set screws

• Unplug the refrigerator and shut off water if working near door/dispenser areas
• Support the part being secured; start the screw by hand to avoid cross-threading
• Tighten with the correct driver for your model; do not overtighten to prevent stripping
• The component is secure and aligned before restoring power

This small end cap fits the end of an extension piece to act as a stop and finish. It restores a secure, finished edge so the sliding component or trim stays aligned and doesn't over-travel during use.

• Caps the end of an extension rail or trim to prevent over-travel and pullout
• Keeps the assembly aligned to reduce wobble
• Replaces cracked, missing, or worn caps
• Helps eliminate rattling and exposed edges

• Disconnect power and allow all hot surfaces to cool before servicing
• Access the end of the extension/rail; release any locking tab and remove the old cap
• Align and snap or press the new cap into place
• Verify smooth travel and a secure stop after installation

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This right-side outer support glass is the oven door glass component that helps stabilize the door assembly and maintain a finished exterior. Replacing damaged support glass restores proper door alignment and reduces drafts, rattles, and heat escape. What it does:

• Provides structural support for the oven door outer glass panel on the right side
• Helps keep the door aligned for smooth opening and closing
• Reduces air and heat leakage that can occur with damaged or loose glass supports
• Stops rattling or vibration caused by a cracked or broken support

• Disconnect power to the appliance before beginning any repair.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Removal typically requires taking the oven door off and removing retaining screws; keep fasteners organized.

This support outer glass is the OEM replacement piece that secures and protects the outer oven door glass for the left-front position. Restores proper door fit and helps maintain safe, even heat containment. What it does

• Holds and stabilizes the outer glass panel in the oven door assembly.
• Prevents glass movement or rattling during use.
• Helps maintain proper door alignment and seal to reduce heat loss.
• Commonly replaced when cracked, warped, broken, or when glass no longer sits flush.

• One support outer glass (left-front) as pictured.

• Disconnect power to the appliance and allow all surfaces to fully cool before beginning.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Door removal or partial disassembly is often required; follow the oven's service manual for safe removal procedure.

This replacement upper refrigerator door insulation restores thermal barrier in the top section of the door to help maintain proper cooling and reduce frost build-up. It fits behind the inner door panel as the factory insulation. What it does

• Replaces compressed or damaged insulation that can let cold escape from the cabinet
• Helps maintain consistent internal temperatures and reduce compressor run time
• Can reduce localized frost or moisture on the door interior caused by lost insulation
• Restores intended spacing between inner panel and outer door for proper fit and seal

• Disconnect power to the appliance before beginning any repair.
• Removal of the inner door panel or trim may be required; retain all fasteners for reassembly.
• Handle panels and insulation carefully to avoid tearing or shifting the material.

The Door Hinge (Right) is an OEM part for GE gas ranges. It acts as the pivot point allowing the right side of the range door to smoothly and securely open and close.

Causes include normal wear and tear from repeated use, accidental impacts deforming the hinge, or deterioration of spring components.

Symptoms of a bad right door hinge include:

• Resistance felt only when opening/closing the right side of the door
• Noise, rubbing or squeaking coming from the right hinge area
• Visual bending or damage evident on the hinge itself
• Improper alignment of just the right side causing sealing issues

This OEM replacement is compatible with Hotpoint, RCA, and select Kenmore gas range models.

The Door Hinge (Left) is an OEM part for GE gas ranges. This hinge is responsible for securely and smoothly mounting the oven door to allow easy access to the cooking cavity.

Causes of a bad hinge include normal wear and tear from years of opening and closing the heavy oven door. The repeated motion can cause hinge mechanisms to loosen, fail to properly support the door weight, or become misaligned over time.

Symptoms of a bad hinge (left) include:

• The oven door sagging or unable to stay open on its own
• Difficulty smoothly opening and closing the door
• Noisy or gritty motion from the hinge when in use
• Improper alignment that impacts sealing of the door

This genuine GE replacement hinge is compatible with some Hotpoint and RCA models as well.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This door gasket is the replacement sealing strip that fits around an oven door to help keep heat and moisture inside for more even cooking and energy efficiency. It restores the oven's seal and reduces heat loss during use. What it does:

• Seals the gap between the oven door and cabinet to help maintain cooking temperature
• Helps reduce heat and moisture escaping into the kitchen
• Can improve bake/roast performance when a worn gasket allows leaks
• Common symptom: visible gaps, torn/compressed rubber, or oven failing to hold temperature

• One door gasket

• High-level replacement: remove oven door or access clips/retainer, pull out old gasket, and press new gasket into the retainer channel
• Use gloves to protect your hands; allow the oven to cool completely before starting
• Check gasket orientation and that it seats evenly around the full perimeter for a proper seal

This is a 1/4-20 x 3/4 inch hex washer head screw used to fasten appliance components securely. It provides a durable, low-profile fastening point to keep panels and assemblies aligned and stable. What it does:

• Secures panels, brackets, and assemblies to prevent movement and maintain alignment
• Helps stop rattling or vibration caused by loose fasteners
• Restores proper fit where a missing or damaged screw causes gaps or instability
• Works with metal-to-metal fastening points requiring 1/4-20 thread engagement

• Disconnect power to the appliance before starting any repair
• Start threads by hand to avoid cross-threading, then tighten with the appropriate hex driver or socket
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts
