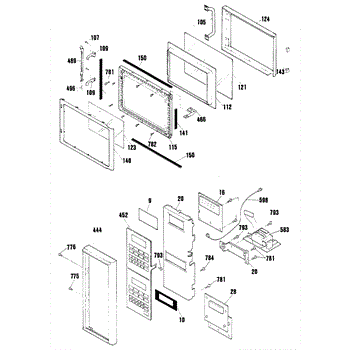

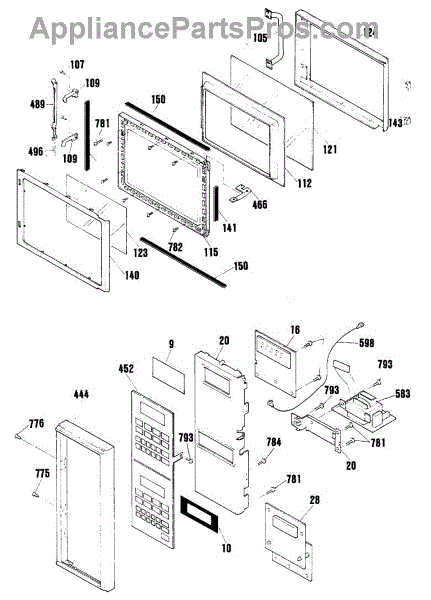

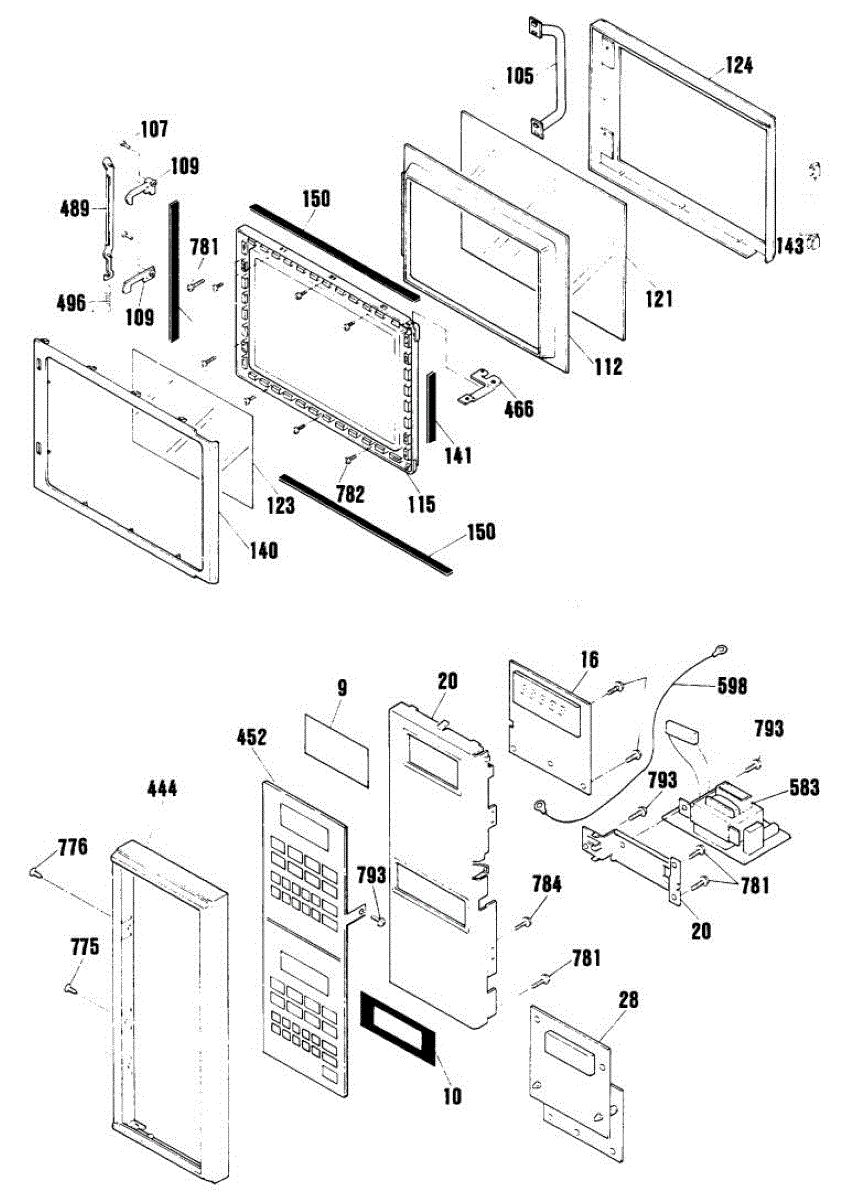

Parts for Ge JKP76GP3BG: 01 - Section1 Parts

This electronic oven control is the console module that manages the oven's clock, timer, bake/broil functions and user interface. Replacing a faulty control restores reliable temperature control and timed cooking functions. What it does:

• Controls oven bake and broil cycles and interprets user commands from the front console
• Manages clock, delay start, timers and other electronic oven functions
• Can stop oven heating or display error codes when the original control fails
• Commonly replaced when display is blank, touchpad/keys don't respond, or oven won't heat

• Disconnect power at the breaker before starting any work to avoid shock
• Access typically requires removing the oven console or control panel; retain all screws and connectors
• Handle the module and display carefully to avoid static or physical damage

Dimensions: 15-1/4" x 10"

The Oven Bake Element is an OEM part for GE ovens. This component is located at the bottom of the oven cavity and is responsible for generating the heat needed for baking. By converting electrical energy into heat, the bake element ensures even temperature distribution throughout the oven, allowing for consistent cooking results.

Causes of a malfunctioning Oven Bake Element may involve visible signs of wear or damage, like blistering or holes, a break in the element that hinders proper heating, and burnout or malfunctioning resulting from age or excessive use.

Symptoms of a failing Oven Bake Element include:

• The oven not heating to the set temperature
• Uneven baking results
• No visible glow from the element when the oven is turned on
• The oven taking longer than usual to preheat

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broil Element is an OEM part for GE ovens. This element is located at the top of the oven and is crucial for the broiling function, providing high heat for cooking dishes such as meats and vegetables directly under the heat source. The broil element glows red hot when in use, creating the necessary temperature to sear food and lock in flavors.

Symptoms of a failing Broil Element include:

• The element not heating up when the broil setting is activated
• Uneven cooking or lack of browning on food intended to be broiled
• Visible damage to the element, such as blistering, bubbling, or breaks in the element coil
• No visible glow from the element during operation

Causes of a bad broil element often involve burnout from regular use, electrical issues such as faulty wiring or a malfunctioning thermostat that doesn't cycle the heat correctly.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity
