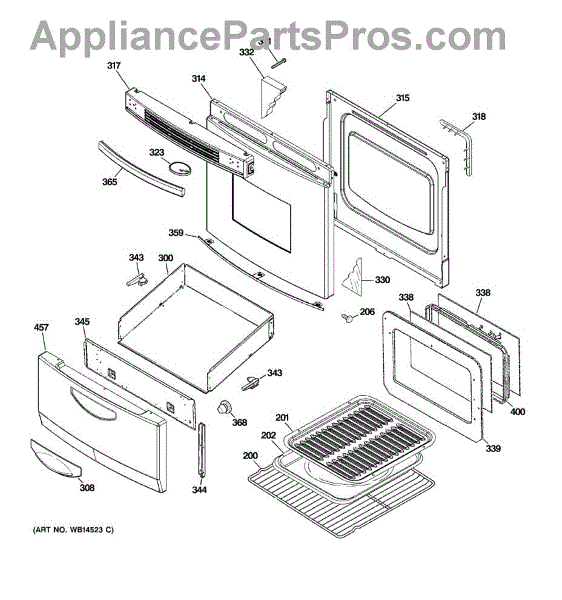

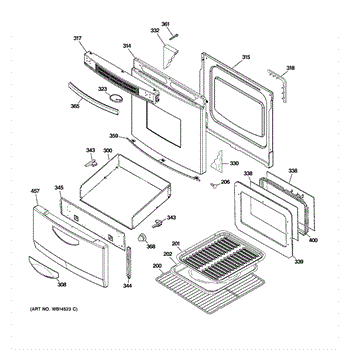

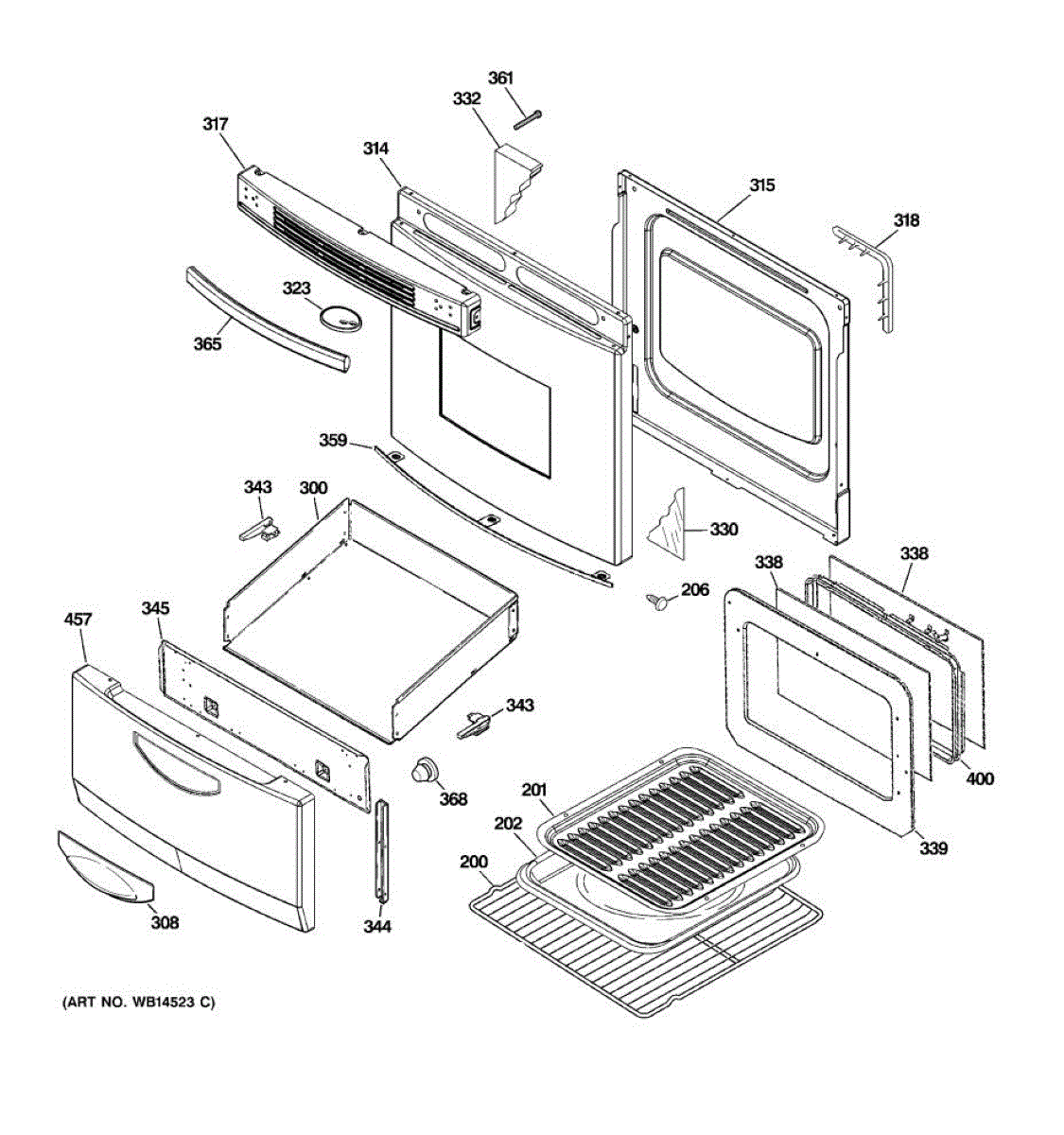

Parts for Ge JAP02SN3SS: 03 - Door & Drawer Parts

Replacement wire oven rack for electric ranges. Supports cookware inside the oven cavity. Order a new rack if yours is warped, rusted, or broken.

Broiler pan grid insert that holds food above the drip pan during broiling. Replace if your grid is warped, rusted, or has broken wires.

Broiler pan installs in your range oven to catch drippings and hold food during broiling. Replace if cracked, warped, rusted, or missing.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Replace your range's oven door handle if it's cracked, broken, loose, or missing. This handle installs on the front of the oven door for opening and closing.

Replaces cracked or broken inner glass on your range oven door. Restores the sealed viewing window and maintains proper heat retention during cooking.

Mounting support that secures your range door handle to the door. Replace if cracked, broken, or worn to restore proper fit and stable grip.

Replacement glass panel for electric range oven doors. Installs on the outer door assembly. Needed when original glass is cracked, shattered, or broken.

Right-side drawer glide supports and guides your range's lower drawer for smooth operation. Replace if broken, cracked, or worn to restore alignment.

Plastic support guide that mounts to the rear of your range storage drawer. Replace if cracked, broken, or missing to keep drawer aligned and gliding smoothly.

Replacement mounting screw for electric ranges. Secures panels, brackets, and trim to the appliance frame. Replace if missing, stripped, or rusted.

This is an extruded door handle designed for a range or oven. It mounts to the front of the oven door and provides a grip for opening and closing the door during use. Replace this handle if it is cracked, loose, broken, or if the mounting points have become damaged.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Kick panel and cover assembly for ranges. Installs at the base of your range. Replace if cracked, broken, or missing to restore appearance.
