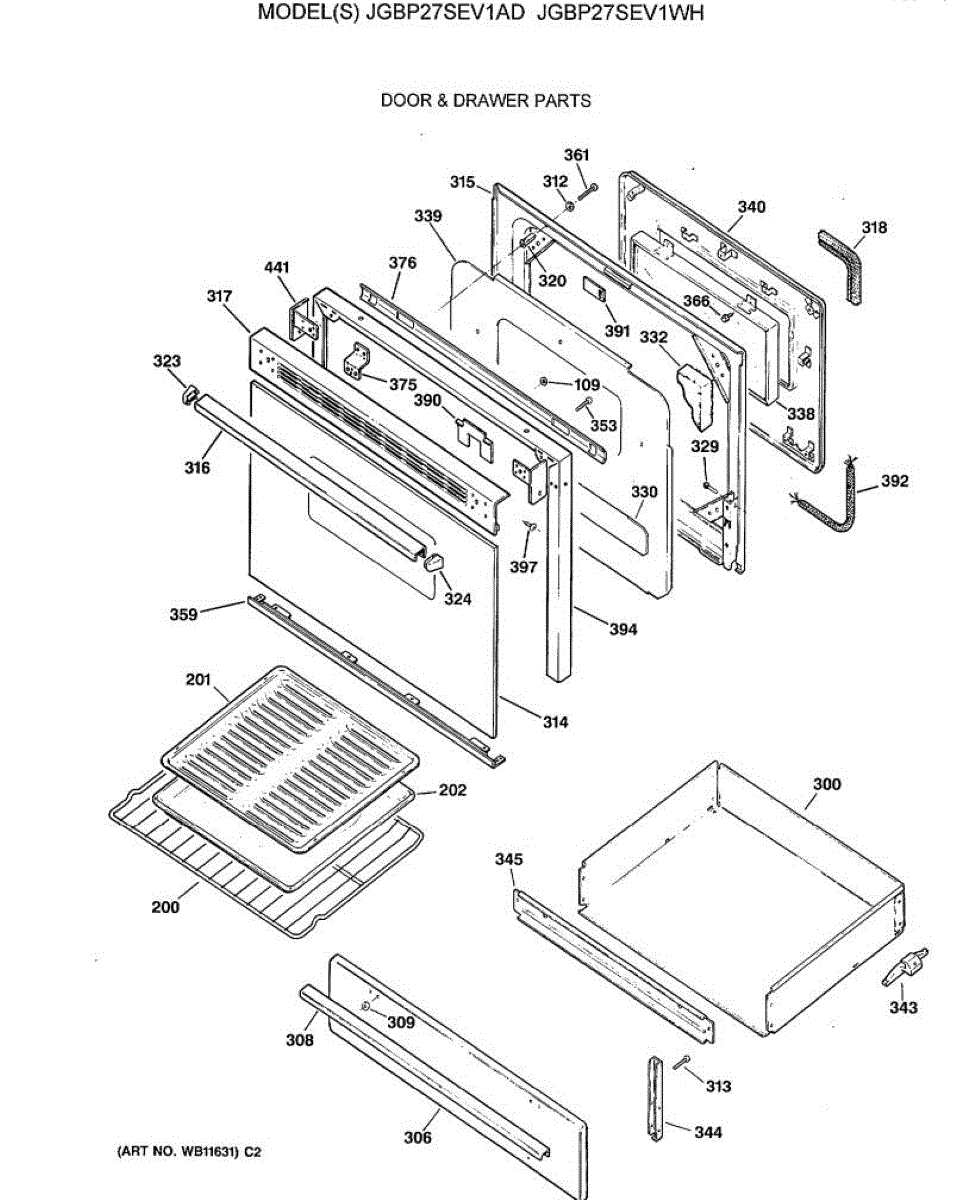

Parts for Ge JGBP27SEV1AD: 04 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Slotted grid that rests over the broiler pan to support food during broiling. Replace if cracked, warped, worn, or missing to restore proper function.

Replacement drawer front panel for your range. Installs on the warming or storage drawer. Order a new panel if yours is cracked, chipped, or damaged.

Includes 12 washers.

Includes 12 washers.

Color: Black

Seals the gap between oven door and body to retain heat during cooking. Replace if cracked, worn, or heat escapes. Verify fit with your model number.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

Includes 12 screws.

Replacement drawer glide for range bottom drawer. Needed when glide is broken, cracked, or snapped, causing drawer to fall, scrape floor, or not slide.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

Includes 12 screws.

Black trim piece that installs at the bottom edge of your range oven door. Replace if cracked, rusted, broken, or missing to restore appearance.

Replacement mounting screw for electric and gas ranges. Secures internal components and panels. Needed when original screws are stripped, missing, or lost.

Replace a cracked, warped, or missing heat deflector shield on your range. This protective guard installs near heating elements to direct heat properly.

Endcap for range storage drawer. Installs at drawer end to provide finished edge and structural support. Replace if cracked, broken, or missing.

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation
