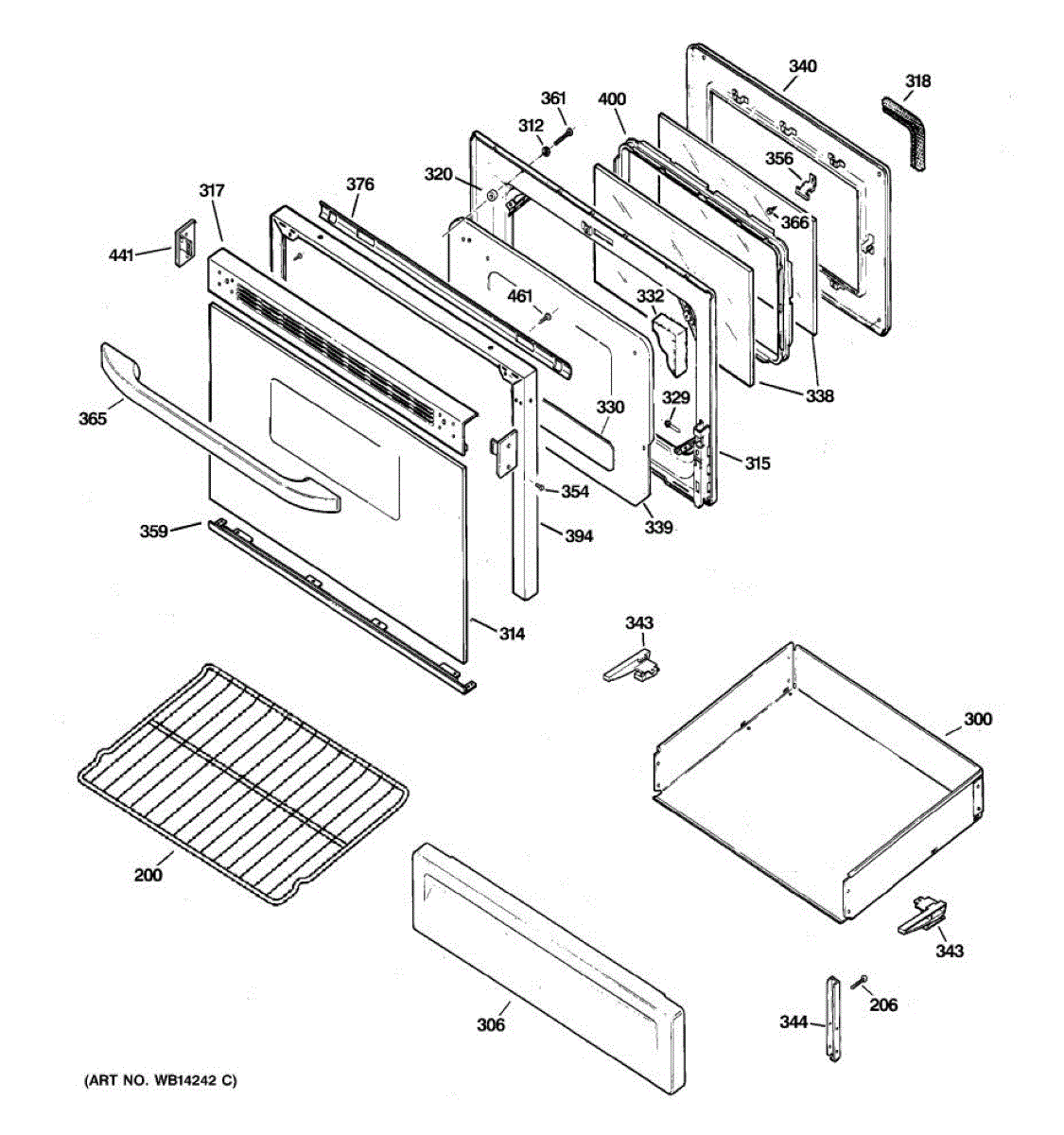

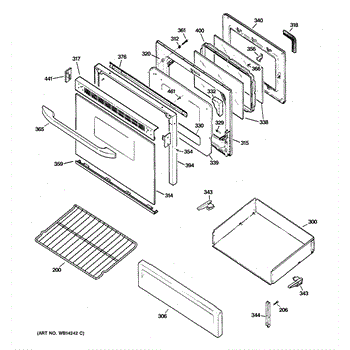

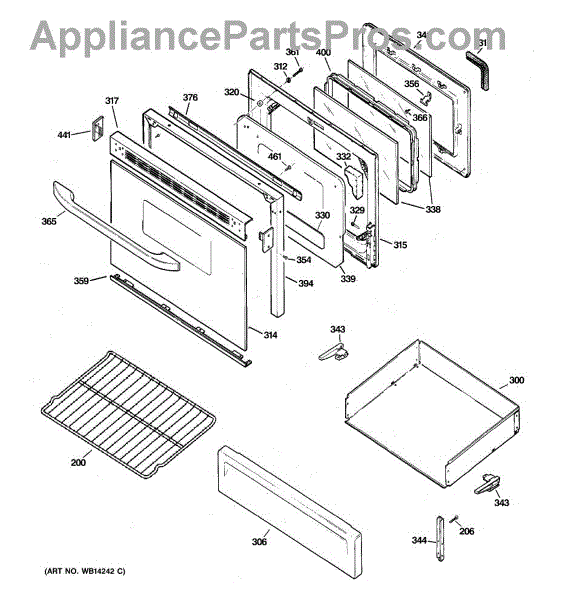

Parts for Ge JGBP33DEM3CC: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Color: Bisque

Color: White

Includes 12 washers.

Color: Bisque

Color: White

The Oven Door Glass is an OEM part for GE ovens. It provides a transparent window in the oven door, allowing users to monitor the cooking process without opening the door and losing heat.

Physical impacts, sudden temperature changes, or accidental mishandling can cause damage to the glass, compromising its integrity and safety.

Symptoms of a bad oven door glass include:

• Visible cracks or breaks
• Heat escaping from the oven door
• Difficulty in seeing through the glass clearly
• The door glass feeling loose or unstable

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Bisque

Color: White.

Color: Black

A small mounting spacer that positions and secures components inside the appliance, helping maintain correct clearances and alignment for reliable operation. Replaces worn or missing spacers to reduce rubbing, vibration, or misalignment. What it does:

• Provides a fixed gap or support between parts to prevent contact and wear
• Keeps panels, brackets or assemblies properly aligned during operation
• Reduces vibration and noise caused by loose or missing spacing hardware
• Helps ensure correct airflow or clearance where specified by the manufacturer

• Install with the original fasteners and in the same orientation; do not force or deform the spacer
• Verify the mating surfaces are clean and free of debris before installing
• Disconnect power to the appliance before starting work and follow basic electrical safety
• Replace any other damaged mounting hardware to ensure a secure repair

Includes 12 screws.

Side

Bottom

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner welded panel assembly restores the stove/oven control/backguard interior structure for a secure fit and proper alignment. Replaces a bent, cracked or damaged inner panel to help stop rattling and improve component support. What it does:

• Replaces the inner welded panel that supports the control/backguard area and helps align the outer trims.
• Restores structural integrity when the original panel is dented, cracked or separated at welds.
• Reduces rattling or vibration caused by loose or damaged interior paneling.
• Provides the proper mounting surface for switches, trim pieces and related hardware.

• One inner welded panel assembly as pictured.

• Disconnect power to the appliance before starting any work.
• Handle edges and sheet metal carefully—wear gloves and eye protection.
• May require removal of control panel, backguard or cooktop to access mounting points; retain original screws and clips for reassembly.

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This mounting screw secures an appliance end cap or trim piece, keeping covers and brackets fastened for safe, stable operation. It's a direct-fit replacement used when the original screw is lost, stripped, or damaged. What it does:

• Secures the end cap or trim to the appliance frame to prevent gaps and movement
• Stops rattling or vibration caused by a missing or worn screw
• Holds covers in place to protect internal components from debris
• Restores proper fit and alignment of the end cap/trim

• Disconnect power before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten
• Replace damaged screws or threaded inserts to ensure a secure fit

This part has been discontinued and is no longer available.

Color: Bisque

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

Restore a secure, comfortable grip with this black door handle. It replaces a damaged or loose handle on your oven, bringing back the original look and making door operation feel solid again.

• Provides the handhold for opening and closing the oven door
• Direct replacement for a cracked, broken, or missing handle
• Helps resolve a loose or wobbly handle and difficulty opening the door
• Refreshes the appliance's front with a clean black finish

• Disconnect power and allow the oven to cool completely before servicing
• Protect the glass and finish; support the door on a padded surface if removed
• Transfer any decorative end caps or spacers from the old handle if your model uses them
• Tighten mounting screws evenly; do not overtighten on glass or trim

Color: White

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This end cap is a replacement terminal cover that protects and secures exposed connector ends on the appliance. It restores a finished appearance and helps prevent accidental contact with live terminals. What it does:

• Covers and protects terminal ends and wiring from contact and debris
• Helps maintain a secure connection by holding terminals in place
• Prevents shorting or arcing caused by exposed connectors
• Useful when the original cap is cracked, missing, or damaged

• Disconnect power to the appliance before servicing to avoid electric shock
• Verify fit and orientation before snapping the cap into place over the terminals
• If terminals or wiring are damaged, replace or repair those components before installing the cap

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type
