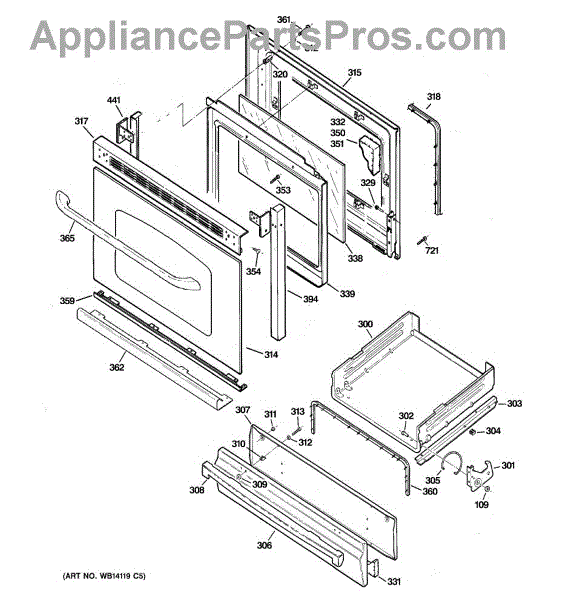

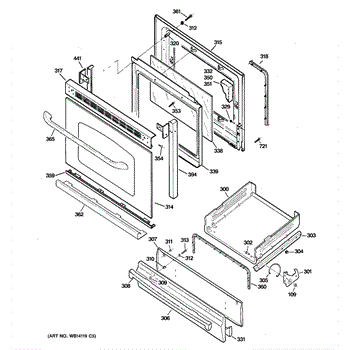

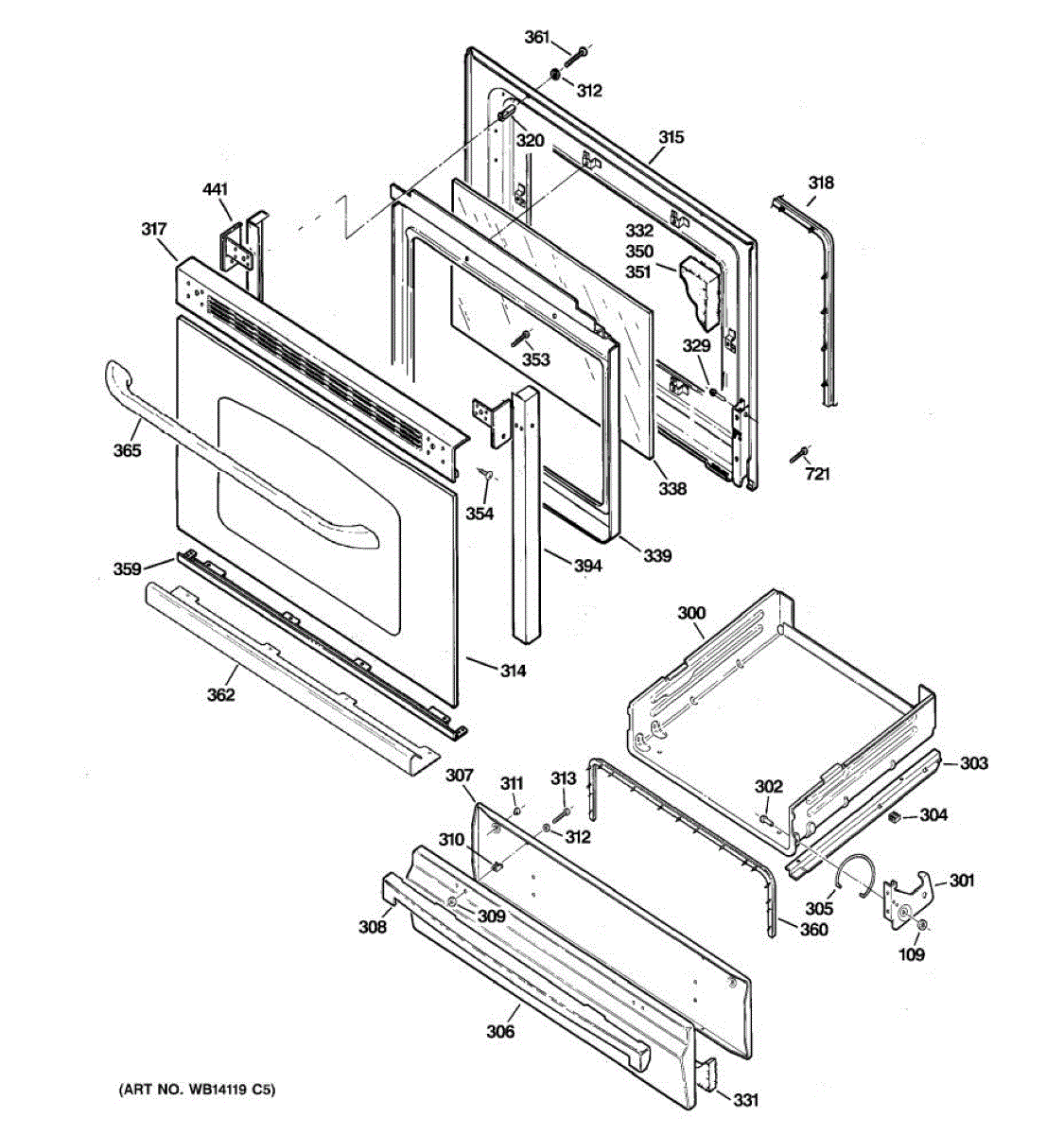

Parts for Ge JGBS23DEM5CC: 04 - Door & Drawer Parts

Includes 12 speed nuts.

Right side broiler hinge for gas ranges. Replacement for broken, cracked, or worn hinges that keep the broiler door properly aligned and supported.

Left side broiler hinge for gas ranges. Replaces broken, worn, or missing hinges that prevent proper broiler door operation and alignment.

Secures and stabilizes your gas range broiler drawer, allowing smooth sliding and proper alignment. Replace if worn, broken, or missing.

Broiler pan slide guide for gas ranges. Installs inside the oven cavity to support and guide the broiler pan. Replace if cracked, bent, or missing.

Broiler pan slide guide for gas ranges. Installs in the oven cavity to support smooth broiler pan operation. Replace if cracked, broken, or worn.

Broiler rack slide support that mounts inside your range oven cavity. Replace if bent, broken, or missing to restore smooth sliding and stability.

This is the right side broiler door spring. For left side use WB9K3.

Left side broiler door spring for gas ranges. Replaces cracked, broken, or worn springs that fail to hold the broiler door properly in position.

Replacement drawer panel that restores the front trim of your range drawer. Installs as the external front surface to replace a damaged, dented, or worn panel.

Drawer liner panel for gas ranges. Installs inside the storage or warming drawer to protect contents. Replace if cracked, warped, or missing.

Replacement broil handle for gas ranges. Installs on the broil drawer to provide grip and control. Order a new handle if yours is cracked, broken, or worn.

Replace your gas range's broil handle if it's cracked, broken, or missing. This control handle installs on the front panel for broiler operation.

White plastic handle for your range broiler drawer. Replaces cracked, loose, or missing handles. Restores safe, secure grip for opening and closing.

Includes 12 washers.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Includes 12 screws.

Color: Bisque

White outer glass panel for range oven doors. Replaces cracked, shattered, or broken door glass. Installs in frame with bottom trim—no glue needed.

Replacement glass panel for range oven doors. Installs in the door frame to provide a clear viewing window. Needed when glass is cracked or shattered.

Color: Bisque

Color: White.

Black trim piece that covers the top edge of your range oven door. Replace if cracked, broken, or missing to restore door appearance and finish.

Seals oven door to cavity, preventing heat loss and maintaining temperatures. Replace when cracked, brittle, or compressed. Confirm fit with model number.

Mounting spacer that positions and secures components inside your range, maintaining proper clearances and alignment. Replace if worn, missing, or cracked.

Includes 12 screws.

Insulation panel that installs inside the range door cavity to reduce heat transfer. Replace if original insulation is damaged, compressed, or missing.

Insulation guard protects wiring and components from heat damage in your range. Replace if cracked, deteriorated, or missing to maintain safe operation.

Bottom insulation panel for range oven doors. Provides thermal and sound dampening inside the door cavity. Replace if damaged, deteriorated, or missing.

Foam insulation panel that installs behind your range oven door panel. Replace when original foam is damaged, compressed, missing, or degraded over time.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

This mounting screw secures an appliance end cap or trim piece, keeping covers and brackets fastened for safe, stable operation. It's a direct-fit replacement used when the original screw is lost, stripped, or damaged. What it does:

• Secures the end cap or trim to the appliance frame to prevent gaps and movement
• Stops rattling or vibration caused by a missing or worn screw
• Holds covers in place to protect internal components from debris
• Restores proper fit and alignment of the end cap/trim

• Disconnect power before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten
• Replace damaged screws or threaded inserts to ensure a secure fit

This part has been discontinued and is no longer available.

Replaces cracked, rusted, or missing bottom trim on your range oven door. This decorative trim piece installs along the lower door edge for a finished look.

Black trim piece that installs at the bottom edge of your range oven door. Replace if cracked, rusted, broken, or missing to restore appearance.

Replace cracked, rusted, or chipped trim at the bottom of your range oven door. Installs with screws (sold separately) after removing the door.

Replacement mounting screw for electric and gas ranges. Secures internal components and panels. Needed when original screws are stripped, missing, or lost.

Mounting screw for electric and gas ranges. Secures panels, brackets, or internal components. Replace if lost, stripped, or damaged during repair.

Color: Bisque

Black range door handle for opening and closing your oven door. Replace worn, cracked, or broken handles. Direct fit for electric and gas ranges.

White range door handle for easy oven door operation. Replace your cracked, broken, or discolored handle to restore your range's appearance and functionality.

Left front trim post for electric and gas ranges. Replaces cracked, broken, or missing trim posts on the cooktop surface. Restores appearance.

White trim post for electric and gas ranges. Mounts to the front control panel or cooktop edge. Replace if cracked, discolored, or missing for a clean look.

White left front trim post for range control panels. Replaces cracked, broken, or missing trim posts that secure the control panel cosmetic trim.

Replace a cracked, broken, or missing end cap on your range door. This decorative trim piece installs at the door edge to complete the finished look.

Replace a cracked or missing end cap on your range door. This plastic trim piece covers the door edge, providing a finished look and protection.

Replacement terminal endcap for electric ranges. Covers exposed connector ends to restore a finished look and prevent accidental contact. Needed when cracked or missing.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
