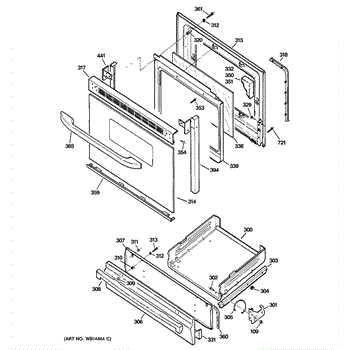

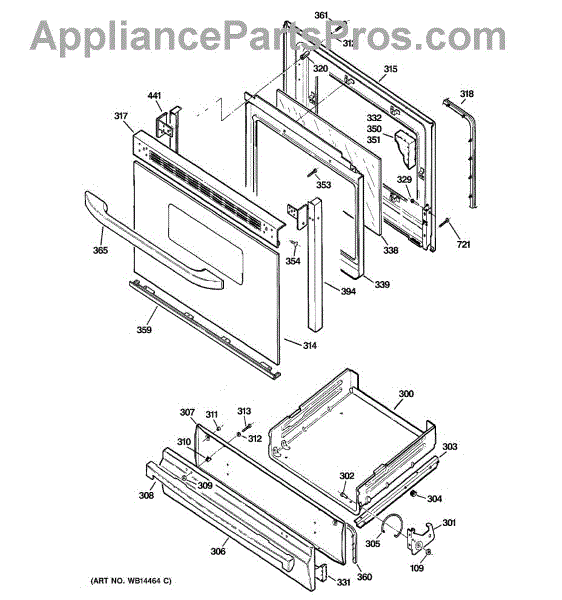

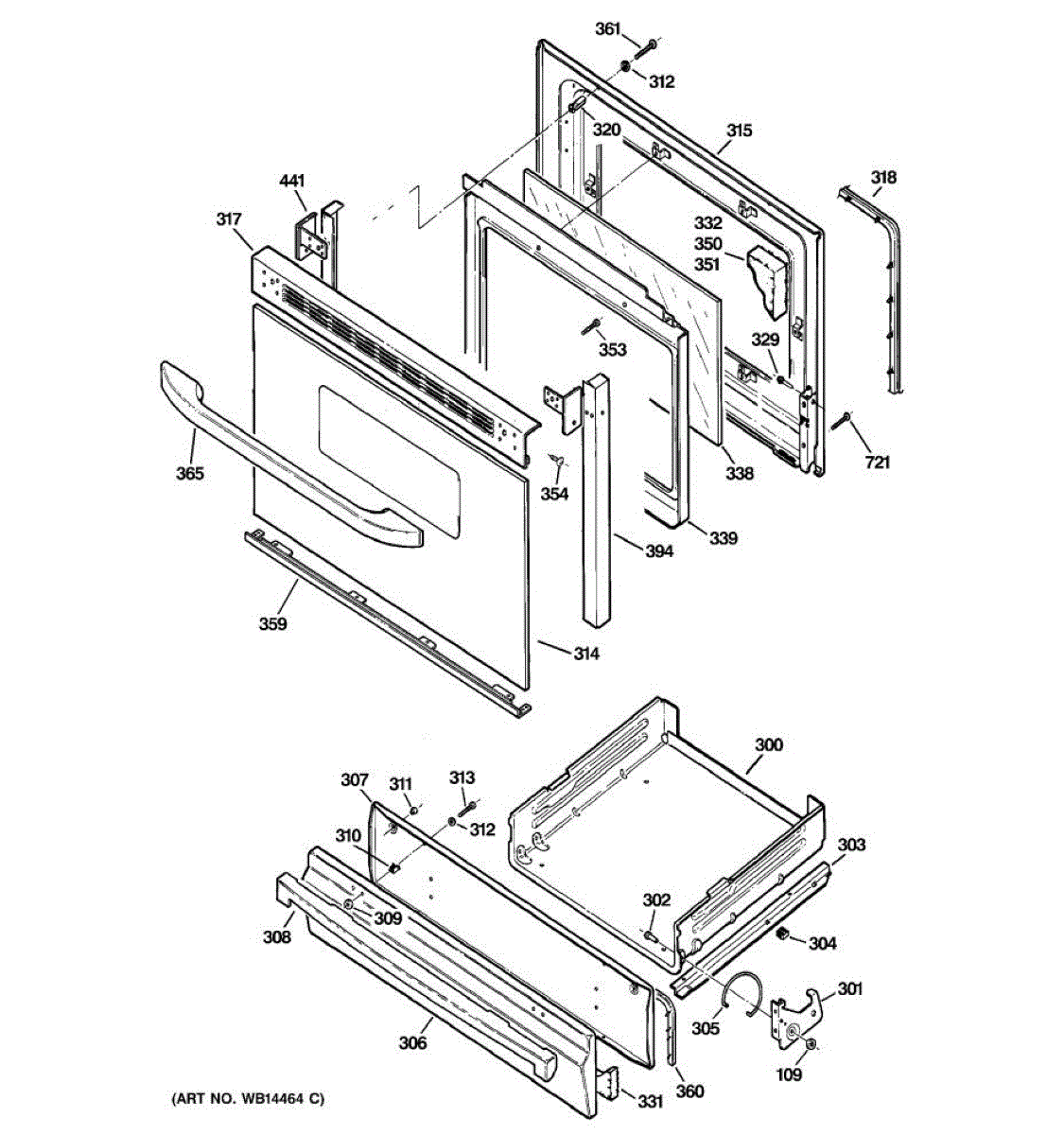

Parts for Ge JGBS24BEM2CT: 04 - Door & Drawer Parts

Includes 12 speed nuts.

This is the right side broiler hinge. For left side use WB10K6.

This is the left side broiler hinge. For right side use WB10K5.

This broiler pin secures the oven's broiler drawer or rack, letting it slide and lock smoothly for even broiling. Replaces a worn or broken pin to restore proper broiler movement and alignment. What it does:

• Acts as the hinge/anchor for the broiler drawer or rack so it opens and closes smoothly
• Prevents the drawer or rack from sagging, binding, or coming loose
• Helps maintain correct broiler alignment for even heat exposure
• Common symptom: drawer or rack won't slide, sits crooked, or falls out

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the broiler drawer or rack per the owner's manual to access the pin.
• This part typically installs by sliding or snapping into a bracket; verify fit before final assembly.

This broiler slide is the oven rack support that lets the broiler pan and rack slide in and out smoothly for cooking and removal. It restores proper rack movement and helps keep broiler pans supported and stable. What it does

• Supports the broiler pan and rack so they sit level and slide smoothly
• Replaces worn or bent slides that cause racks to bind, tilt, or fall
• Reduces scraping, sticking, and uneven pan movement during use
• Restores safe access for inserting and removing broiler pans

• One broiler slide

• Disconnect power to the range before starting work; if a gas range, also shut off the gas supply
• Remove oven racks and broiler pan before replacing the slide to access mounting points
• Reuse original fasteners unless replacements are specified by the manufacturer

This is the right side broiler door spring. For left side use WB9K3.

This is the left side broiler door spring. For right side use WB9K2.

This replacement drawer panel restores the front trim of the appliance drawer for a clean, finished appearance and proper fit. It replaces a damaged, dented, or worn drawer front so the drawer closes and looks like new. What it does:

• Replaces the external front surface of the drawer to restore appearance and alignment
• Helps the drawer close evenly and prevents gaps that allow items to catch
• Addresses visible damage such as dents, scratches, or paint wear on the drawer front
• Works with existing drawer hardware; does not include internal drawer bin parts

• One replacement drawer panel

• Handle part carefully to avoid surface scratches
• Power off and empty drawer before starting; remove any clips or screws securing the old panel
• Reuse original fasteners and brackets unless damaged

This white broiler handle replaces a cracked, loose, or missing handle so you can open and close the oven broiler or broiler drawer smoothly. Durable plastic construction restores safe, reliable access to the broiler compartment. What it does:

• Provides a secure grip to open and close the broiler or broiler drawer
• Replaces worn, broken, or chipped handles that are hard to use
• Helps prevent accidental slippage when accessing the broiler area
• Restores normal operation and appearance to the oven front

• One white broiler handle

• Turn off power to the appliance before beginning any work
• Installation typically requires removing the broiler drawer or access panel and fastening the handle with the original screws or clips
• Handle broken hardware may require replacement fasteners; confirm what's needed before starting
• Wear gloves to avoid cuts from sharp sheet metal edges during installation

Includes 12 washers.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Includes 12 screws.

The Oven Door Glass is an OEM part for GE ovens. It provides a transparent window in the oven door, allowing users to monitor the cooking process without opening the door and losing heat.

Physical impacts, sudden temperature changes, or accidental mishandling can cause damage to the glass, compromising its integrity and safety.

Symptoms of a bad oven door glass include:

• Visible cracks or breaks
• Heat escaping from the oven door
• Difficulty in seeing through the glass clearly
• The door glass feeling loose or unstable

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This oven door gasket restores the seal between the oven cavity and the door. Replacing a worn gasket helps the oven reach and maintain set temperatures while preventing heat and fumes from escaping around the door.

• Forms the compressible seal between the door and the oven front frame
• Helps the oven hold temperature for more consistent cooking results
• Reduces heat loss and leakage at the door perimeter
• Common signs to replace: frayed or flattened gasket, visible gaps at corners, heat or odors escaping, longer preheat or uneven baking

• Disconnect power before service; for gas ranges, also shut off the gas supply
• Allow the oven to cool completely and wear gloves
• Remove the old gasket by releasing its ends/retainers and clean the mounting area
• Fit the new gasket evenly without stretching; seat corners and ends fully, then check door closure

A small mounting spacer that positions and secures components inside the appliance, helping maintain correct clearances and alignment for reliable operation. Replaces worn or missing spacers to reduce rubbing, vibration, or misalignment. What it does:

• Provides a fixed gap or support between parts to prevent contact and wear
• Keeps panels, brackets or assemblies properly aligned during operation
• Reduces vibration and noise caused by loose or missing spacing hardware
• Helps ensure correct airflow or clearance where specified by the manufacturer

• Install with the original fasteners and in the same orientation; do not force or deform the spacer
• Verify the mating surfaces are clean and free of debris before installing
• Disconnect power to the appliance before starting work and follow basic electrical safety
• Replace any other damaged mounting hardware to ensure a secure repair

Includes 12 screws.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 X 0.95 inch.

Restore a secure, comfortable grip with this black door handle. It replaces a damaged or loose handle on your oven, bringing back the original look and making door operation feel solid again.

• Provides the handhold for opening and closing the oven door
• Direct replacement for a cracked, broken, or missing handle
• Helps resolve a loose or wobbly handle and difficulty opening the door
• Refreshes the appliance's front with a clean black finish

• Disconnect power and allow the oven to cool completely before servicing
• Protect the glass and finish; support the door on a padded surface if removed
• Transfer any decorative end caps or spacers from the old handle if your model uses them
• Tighten mounting screws evenly; do not overtighten on glass or trim

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
