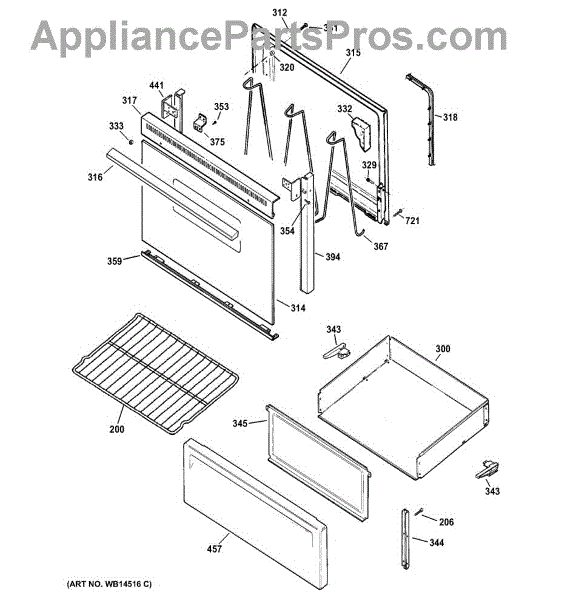

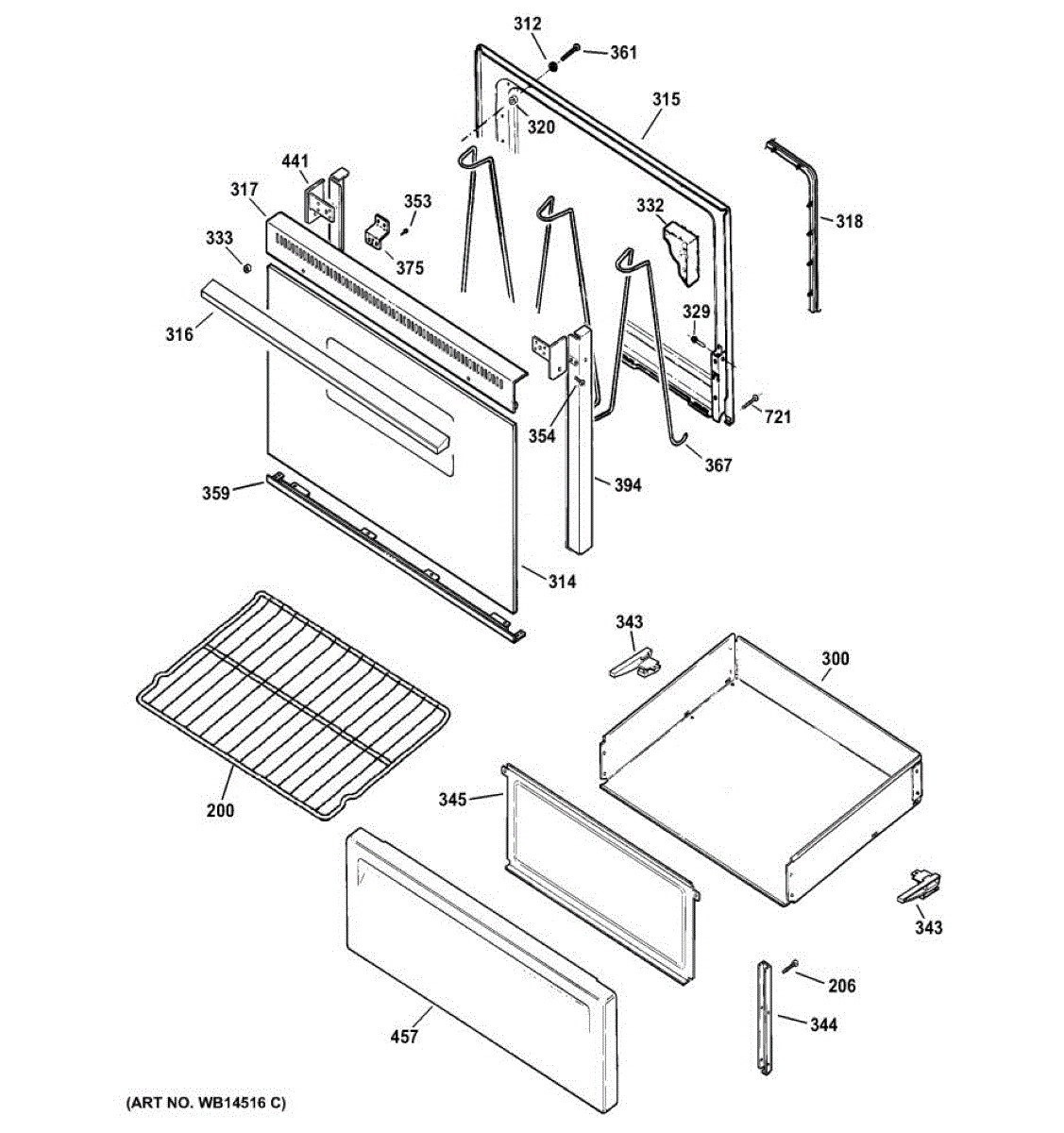

Parts for Hot Point RB525BH4CT: 03 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

This broil drawer handle restores a safe, comfortable grip on your range's lower broiler drawer, making it easy to open and close. Replace a cracked, loose, or missing handle to keep the drawer operating securely and looking right.

• Provides a secure handhold for the lower broiler drawer
• Helps maintain smooth, aligned drawer movement during use
• Direct replacement for a broken, cracked, or missing handle
• Common symptoms: loose or wobbly handle, difficulty opening the drawer, or cosmetic damage

• Disconnect power and allow the range to cool completely before servicing
• Remove the broiler drawer if needed for access; retain the original screws/trim
• Align the new handle and secure with the existing mounting hardware
• Do not overtighten fasteners; verify smooth, secure drawer operation

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

This door insulation is the inner foam pad that fills a refrigerator door cavity to help slow heat transfer and keep the cabinet cold. Replacing a damaged pad restores proper door thermal performance and reduces energy loss. What it does:

• Fills the hollow door cavity to provide thermal insulation and help maintain interior temperature
• Helps reduce frost buildup and cycling frequency when installed correctly
• Stops drafts and cold leaks caused by compressed, torn, or missing insulation
• Reduces rattling or vibration if the original insulation has shifted or deteriorated

• Disconnect power to the appliance before beginning any repair
• Remove door panels and hardware to access the cavity; handle clips and screws carefully
• Wear gloves and a dust mask when handling old insulation; dispose of deteriorated material properly
• Reassemble panels securely and verify door seals and alignment after installation

This handle spacer positions the appliance handle at the correct distance from the door or panel for smooth operation. Replacing a worn or missing spacer restores proper standoff, alignment, and feel, and helps prevent rubbing, rattling, or looseness.

• Maintains proper spacing between the handle base and mounting surface
• Helps keep the handle aligned and secure
• Reduces rubbing or contact with the door/panel
• Common fix for a wobbly, misaligned, or scraping handle

• Unplug power and allow hot surfaces to cool before servicing
• Support the door/handle while removing mounting screws to prevent strain
• Note the spacer's position and orientation; reinstall the new spacer in the same location
• Tighten screws snugly; do not overtighten to avoid damage

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This insulated wire retainer secures wiring and wiring harnesses inside the appliance to prevent rubbing, chafing, and accidental contact. It helps keep wires routed and protected for safer, more reliable operation. What it does:

• Clips wiring or harness to chassis mounting points to hold wires in place
• Prevents wires from contacting sharp edges or moving parts that can cause wear
• Reduces risk of shorts or intermittent connections caused by chafed insulation
• Keeps wiring neatly routed for easier service and longer component life

• Disconnect power to the appliance before servicing.
• Locate the damaged or missing retainer on the appliance frame or harness mounting tab.
• Route the wire or harness into the retainer and press until the retainer snaps into place; no special tools are typically required.
• Replace any wiring with damaged insulation and secure fit before restoring power.

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

This is a bisque-colored replacement drawer panel that restores the front appearance and proper fit of your appliance drawer. It matches OEM styling so the drawer looks and closes as designed. What it does

• Replaces a cracked, chipped, faded or dented drawer front to restore cosmetic appearance
• Provides the finished exterior surface for the drawer and helps maintain proper alignment
• Covers internal drawer components and protects them from debris
• Matches the original color and finish for a consistent look with the appliance

• Disconnect power to the appliance and remove any contents from the drawer before starting.
• Handle the panel carefully to avoid scratching the finish; use a soft surface to rest parts.
• Reuse original mounting clips/screws when available; ensure panel is seated and aligned before tightening fasteners.
• If panels are attached to trim or brackets, remove trim pieces gently.

This white drawer panel is the exterior front of the appliance's drawer. Replace a dented, cracked, or discolored panel to restore a clean look and ensure proper alignment, secure handle mounting, and smooth opening and closing. What it does:

• Forms the visible drawer front and mounting surface for the handle or badge
• Helps the drawer sit flush and operate smoothly when correctly aligned
• Replaces panels that are dented, scuffed, cracked, or rusted
• Can address a loose handle, misaligned drawer front, or scraping when closing

• One white drawer front panel

• Disconnect power and allow the appliance to cool; shut off gas before servicing
• Remove the drawer to access fasteners; retain all screws and hardware
• Transfer the handle/trim from the old panel, align the new panel, and secure fasteners without overtightening
• Wear cut-resistant gloves and use caution around sharp metal edges

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
