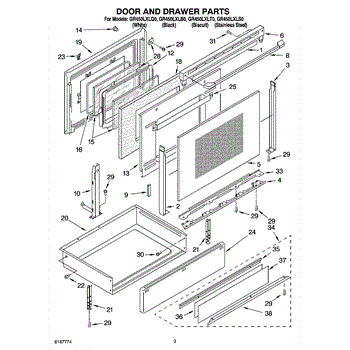

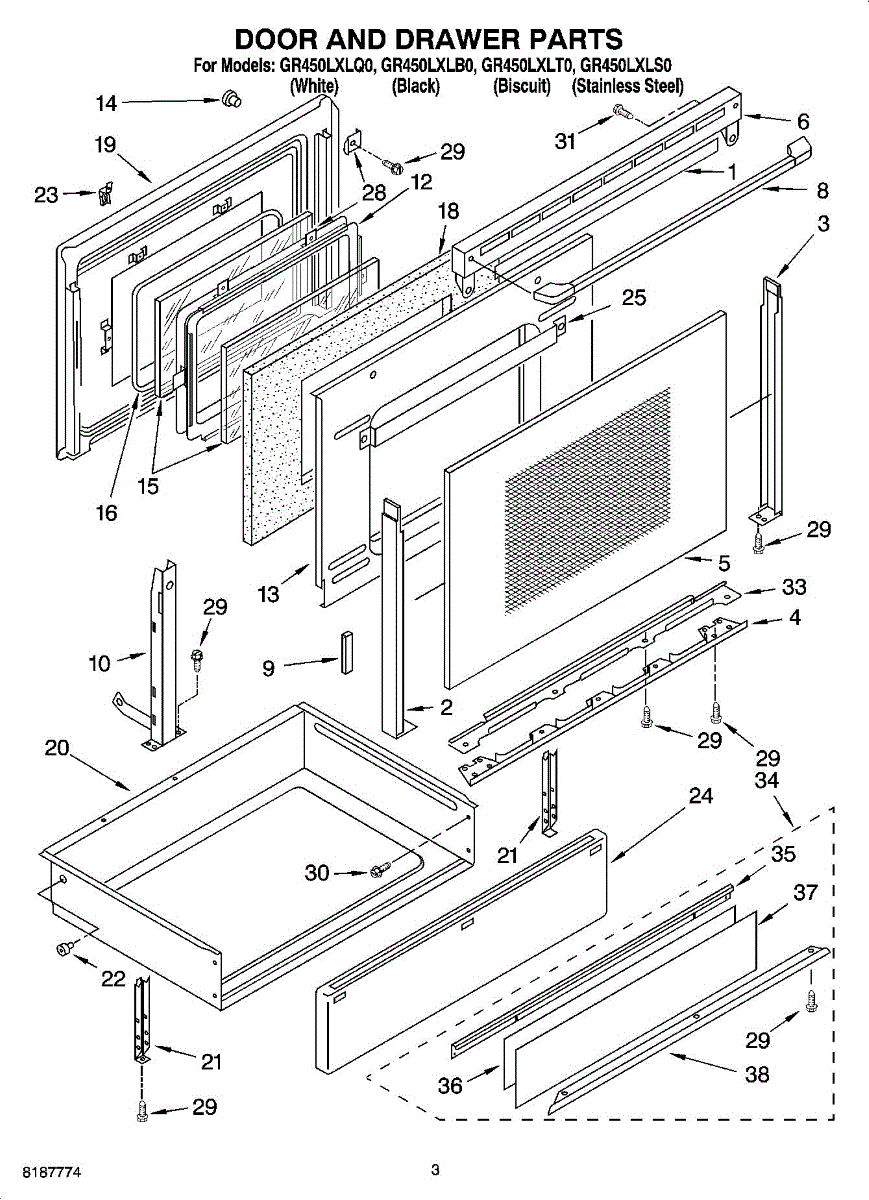

Parts for Whirlpool GR450LXLS0: 03 - Door And Drawer Parts

Color: Black. This is the left side door trim. For right side use 9782004PB.

Color: White. This is the left side door trim. For right side use 9782004PW.

Color: Biscuit. This is the left side door trim. For right side use 9782004PC.

Color: Biscuit. This is the right side door trim. For left side use 9782003PC.

Color: White. This is the right side door trim. For left side use 9782003PW.

Color: Black. This is the right side door trim. For left side use 9782003PB.

Color: White.

Color: Black.

Color: Biscuit.

Color: White. Other colors: For black use WP9781627PB, for biscuit use 9781694PC.

Color: Biscuit. Other colors: For white use 9781694PW, for black use WP9781627PB.

Color: Black/stainless steel.

Color: Black.

Color: White. Other colors: For biscuit use 9753498GC, for black use 9753498GB, for almond use 9753498GT.

Color: Biscuit. Other colors: For white use 9753498GW, for black use 9753498GB, for almond use 9753498GT.

Color: Black. Other colors: For white use 9753498GW, for biscuit use 9753498GC, for almond use 9753498GT.

Color: Black. Other colors: For white use 9752701PW, for biscuit use 9752701PC.

Color: Biscuit. Other colors: For white use 9752701PW, for black use 9752701PB.

Color: White. Other colors: For biscuit use 9752701PC, for black use 9752701PB.

This oven door hinge will work for either the left or right side of an oven door. The hinges on the door are responsible for ensuring that the door can open and close properly. If one or both of the hinges are not working correctly, the door may become difficult to open and close or may not stay on the oven. If this happens, the hinges should be replaced before using the oven.Made of durable metal, the oven door hinges should last a long time. However, they can become damaged and may need to be replaced. If there is too much pressure placed on the door or hinges, it could cause them to break. Owners may want to replace both of the hinges at the same time. Be sure that the oven is off and cooled before replacing this part.The oven door hinges are for use with certain ovens from KitchenAid, Whirlpool, Inglis, and Kenmore. The hinges are genuine OEM replacement parts sourced from the manufacturer. Each hinge is sold individually. Owners that need to replace both hinges should buy two.

Rubber bumper. Color: Grey.

Clear glass panel inside your range door. Replace if cracked, shattered, or broken. Installs between door frame layers for heat retention and viewing.

This door glass seal replaces the soft gasket that fits around the inner oven door glass to help keep heat and smoke inside the oven cavity for safer, more efficient cooking. It restores a better seal and reduces heat loss around the door. What it does:

• Seals the gap between the inner oven door glass and door frame to limit heat and smoke escape
• Helps maintain oven temperature stability for consistent cooking results
• Reduces heat transfer to the surrounding cabinetry and control area
• Can improve oven efficiency if the old seal is cracked, compressed, or missing

What's included:

• One door glass seal

Install notes:

• For safest results, replace with the oven powered off and fully cooled; disconnect power at the breaker when required
• Inspect surrounding door glass and clips before reassembly; replace any damaged parts to ensure a proper seal
• Work carefully to avoid scratching the glass or bending metal door components

Support roller kit for range storage drawers. Replaces broken, cracked, or missing drawer rollers. Includes installation hardware for secure mounting.

Color: White. Other colors: For black use 9782108PB, for biscuit use 9782108PC, for almond use 9782108PT, for stainless steel use 9782109PB.

This front panel covers the storage drawer beneath your range and provides a finished appearance. It matches your range's design and protects the drawer mechanism from damage. Replace this panel if it's cracked, warped, or doesn't match your range's color scheme.

This part has been discontinued and is no longer available. Color: Stainless steel. Other colors: For white use 9782108PW, for black use 9782108PB, for almond use 9782108PT, for biscuit use 9782108PC.

Color: Biscuit. Other colors: For white use 9782108PW, for black use 9782108PB, for almond use 9782108PT, for stainless steel use 9782109PB.

The Push Clip is an OEM replacement part for Whirlpool dryers. Situated internally near the rear cylinder wall, it firmly secures the drum support roller assembly.

Causes of failure relate to fatigue from years of absorbing drum impacts and associated mechanical stresses. Corrosion penetration if moisture enters the clip mounting area increases operational resistance over time as well.

Symptoms consist of:

• Uneven drying and weakened tumbling action inside the cylinder
• Vibration or noise emerging from the rear roller area
• Premature wear signals stemming from dislocated roller assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Mounting screw for securing components in compactors, cooktops, dishwashers, and ranges. Replace if screw is stripped, missing, or damaged.

Size: 10-16 x 1/2 inch.

Color: Stainless steel.
