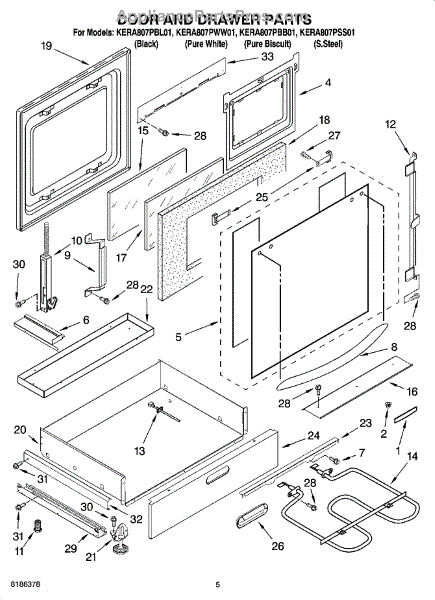

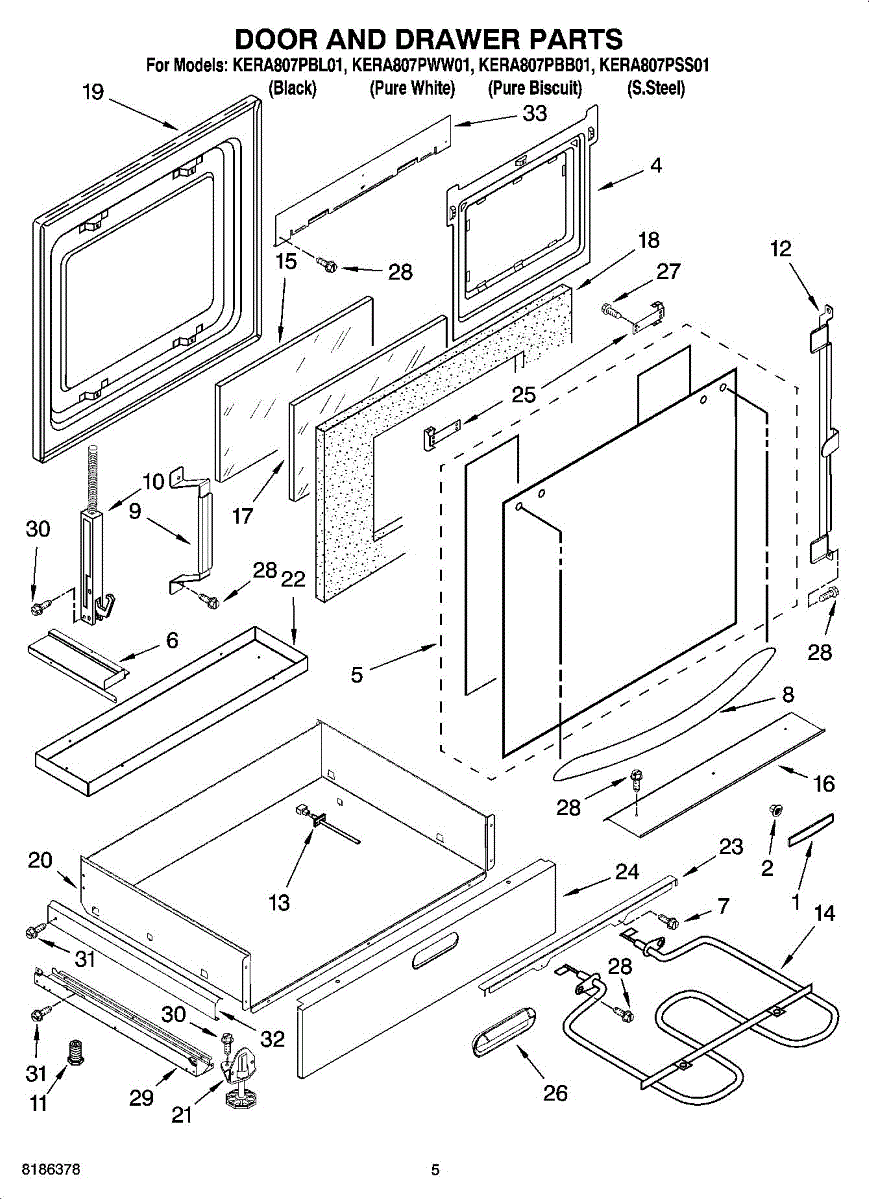

Parts for Kitchenaid KERA807PBB01: 04 - Door And Drawer Parts

Color: White

Color: Black

Color: Biscuit

Color: Biscuit

Color: White

Color: Stainless steel

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This oven door hinge restores smooth, controlled door movement and a tight seal. Replace a worn hinge to help your oven close properly, retain heat, and operate safely without slamming, sagging, or uneven gaps.

• Supports and pivots the oven door; spring tension controls opening and closing
• Helps the door sit flush against the gasket to minimize heat loss
• Restores alignment when the door feels loose, sags, or doesn't close evenly
• Resolves symptoms like door slamming, uneven gaps, poor temperature regulation, or extended preheat times

• Disconnect power at the breaker; shut off gas supply if applicable
• Support the door; engage hinge locks and remove the door
• Replace the hinge and securely reinstall using existing fasteners
• Rehang the door, verify latch engagement and seal, and test door movement

Note: This door hinge is for Stainless Door Models.

The Door Hinge is an OEM replacement part for Whirlpool wall ovens. It is located on oven doors and works to support the door for smooth opening and closing motions when removing or checking on food.

Causes of a bad door hinge can include wear of internal bearing surfaces from thousands of door cycles over many years of use. Exposure to heat from inside the oven cavity may also accelerate hinge component deterioration over time.

Symptoms of a bad Door Hinge include:

• Doors that are difficult to open fully or fail to stay securely in position
• Noises and grinding sounds heard while operating doors
• Improper or imbalanced door alignments that cause sealing or binding issues
• Premature wear of adjacent gasket and sealing surfaces

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and select Kenmore models.

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermistor is the temperature sensor used by a warm drawer to monitor and regulate internal temperature, helping maintain consistent warming for cooked foods. Replaces a failed or out-of-range sensor to restore correct temperature feedback. What it does:

• Senses warm-drawer temperature and sends a resistance-based signal to the control board
• Allows the control system to maintain desired warming temperature
• Common symptom: warm drawer not holding correct temperature or displaying temperature-related error codes
• Safe, widely accepted fix when diagnostics indicate an open/short or out-of-spec thermistor

• One thermistor temperature sensor

• Disconnect power to the appliance before accessing internal components
• Handle the sensor and connector gently; avoid pulling on wires
• Route and secure the lead per the original routing to prevent pinching or heat exposure

This inner oven door glass mounts on the inside of the door to help seal in heat while letting you view cooking progress. Replace damaged glass to restore safe viewing, proper insulation, and consistent oven performance.

• Forms the inner pane of the oven door window and acts as a thermal barrier
• Helps the oven reach and maintain set temperature by limiting heat loss through the door
• Provides visibility into the oven cavity during cooking
• Replace if the glass is cracked, shattered, missing, or heat is escaping from the door

• Disconnect power and allow the oven to cool completely; if applicable, shut off gas
• Remove the door and place it on a protected, flat surface before disassembly
• Wear cut-resistant gloves and eye protection; handle glass carefully and support the edges
• Reuse existing brackets, seals, and screws; note orientation during reassembly

The Oven Door Glass is an OEM part for Whirlpool ovens. This part is integral to the oven door, allowing users to view the interior of the oven without opening the door, thereby maintaining consistent oven temperatures and energy efficiency. The glass is engineered to withstand high temperatures, resisting cracking and breaking under the thermal stresses of regular oven use.

Causes of a bad Oven Door Glass can include thermal stress from high temperatures, impact damage from accidental knocks or items being dropped on the door, and wear and tear over time.

Symptoms of a bad Oven Door Glass include:

• Visible cracks or chips in the glass
• A shattered or broken glass panel
• Difficulty in maintaining oven temperatures due to compromised insulation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Insulation is an OEM part for Whirlpool ranges and wall ovens. This part provides thermal insulation for the oven door, helping to maintain the internal temperature and improve energy efficiency. It also protects the exterior surfaces of the oven door from becoming excessively hot during operation.

Causes of bad door insulation can include general wear and tear over time, degradation from repeated exposure to high temperatures, or physical damage.

Symptoms of bad door insulation include:

• Oven taking longer to heat up
• Heat escaping from the oven door
• Outer door surfaces becoming too hot to touch
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the 30-inch door panel for select ovens/ranges. It restores the door's appearance and provides the structural skin that supports the handle, glass, and trim for a solid, properly aligned door assembly. What it does:

• Forms the primary outer skin of the door assembly and supports handle/trim
• Provides a mounting surface for door glass and nameplate/emblems
• Helps maintain proper door alignment and a tight, rattle-free fit
• Common reasons to replace: dents, bends, scratches, discoloration, or stripped mounting holes

• 1 door panel

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door assembly and place it on a protected surface; wear cut-resistant gloves
• Transfer handle, screws, glass, and trim from the old panel to the new one; note screw lengths/locations
• Align carefully and avoid overtightening to prevent damaging threads or cracking glass

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

Color: Cashmere Metalic

Color: White

Color: Black

Color: Biscuit

This replacement screw secures appliance components and panels. Replacing worn or missing hardware restores a tight, rattle-free fit and helps keep assemblies properly aligned for reliable performance.

• Fastens panels, brackets, or covers to the appliance frame or mating parts
• Helps maintain proper alignment and reduces vibration and noise
• Replaces missing, stripped, or corroded screws
• Common signs to replace: loose or rattling panels, misaligned parts, damaged screw head or threads

• Disconnect power; also shut off water or gas to the appliance if applicable
• Compare to the original to ensure thread and length match before installing
• Start threads by hand to avoid cross-threading; tighten only until snug
• If the mating clip/insert is stripped, replace that hardware as well

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
