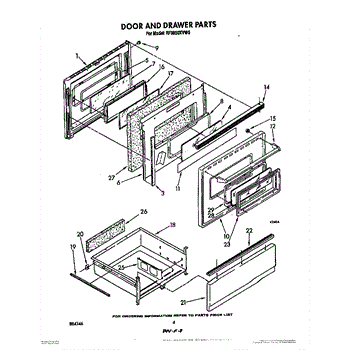

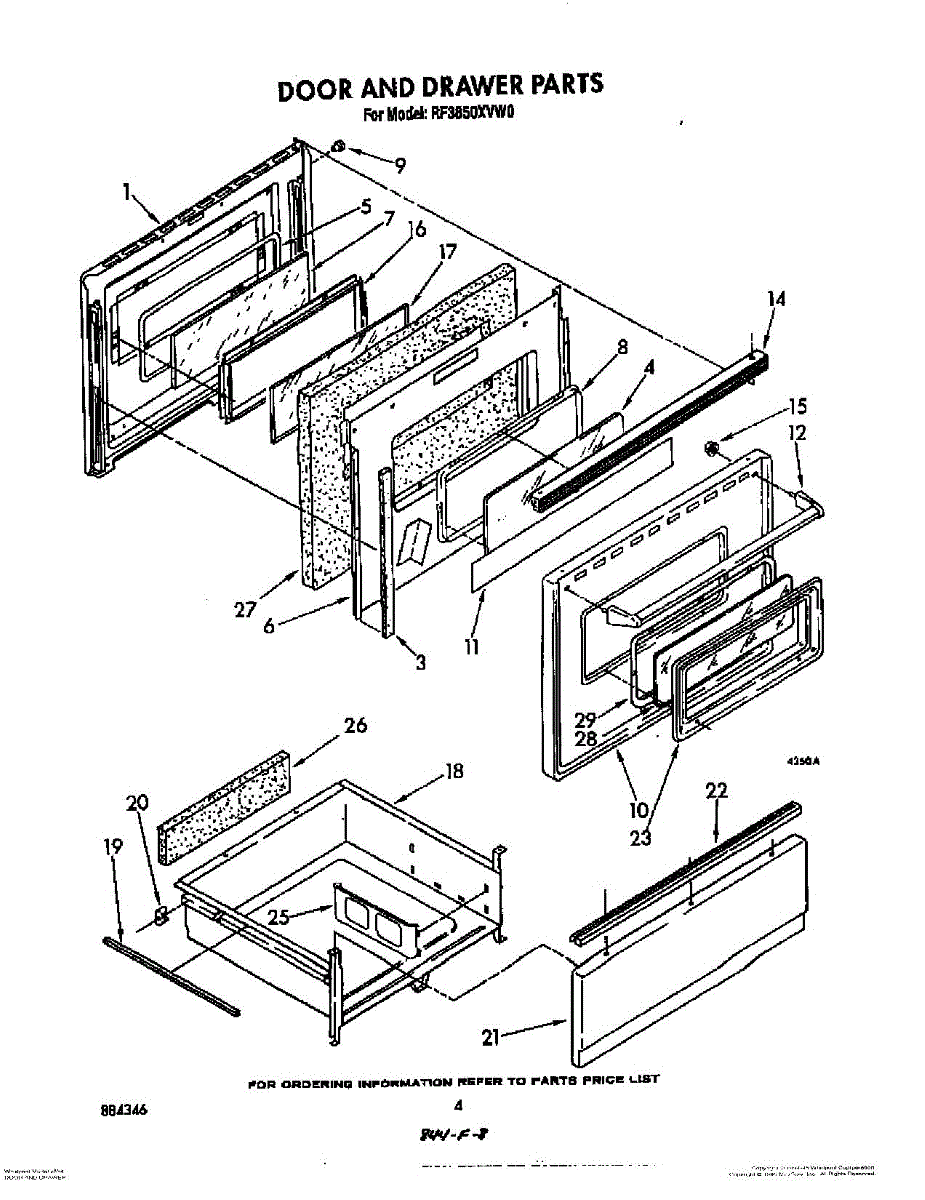

Parts for Whirlpool RF3850XVW0: 03 - Door And Drawer Parts

This replacement oven door glass restores a clear viewing window and proper heat retention. Replace this pane when the glass is cracked, shattered, or permanently stained to keep your oven safe, efficient, and easy to monitor.

• Forms the inner or outer window of the oven door, sealing heat while letting you watch cooking progress
• Helps maintain temperature stability and preheat performance
• Common failure signs: visible cracks or chips, shattered glass, fogging or residue between panes, or difficulty maintaining temperature
• Restores safety by eliminating sharp edges and reducing risk of further breakage

• Disconnect power and allow the oven to cool completely; shut off gas supply if applicable
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Remove the door and glass retainers; note screw and trim orientation
• Transfer any clips/trim from the original pane as needed; reassemble without overtightening and confirm door alignment and seal

Replacement 1/4-inch hex flange nut that secures panels, brackets and other appliance hardware. Restores a firm connection to reduce rattling and keep assemblies aligned for reliable operation. What it does:

• Fastens panels, brackets, hinges and small assemblies to maintain proper alignment.
• Prevents loose or vibrating panels that can cause noise or premature wear.
• Replaces missing, stripped or damaged nuts to restore secure mounting.
• Works where a flange provides extra bearing surface to resist loosening.

• Always unplug the appliance or disconnect power before beginning service.
• Use the correct socket or wrench size to avoid rounding the nut; hand-start threads to prevent cross-threading.
• Do not overtighten; tighten until components are seated and secure.
• Replace any damaged mating fasteners or hardware to ensure a reliable repair.

This part has been discontinued and is no longer available.

This replacement oven door glass restores a clear viewing window and proper heat retention. Replace this pane when the glass is cracked, shattered, or permanently stained to keep your oven safe, efficient, and easy to monitor.

• Forms the inner or outer window of the oven door, sealing heat while letting you watch cooking progress
• Helps maintain temperature stability and preheat performance
• Common failure signs: visible cracks or chips, shattered glass, fogging or residue between panes, or difficulty maintaining temperature
• Restores safety by eliminating sharp edges and reducing risk of further breakage

• Disconnect power and allow the oven to cool completely; shut off gas supply if applicable
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Remove the door and glass retainers; note screw and trim orientation
• Transfer any clips/trim from the original pane as needed; reassemble without overtightening and confirm door alignment and seal

Size; 8-18 x 1/2 inch.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening
