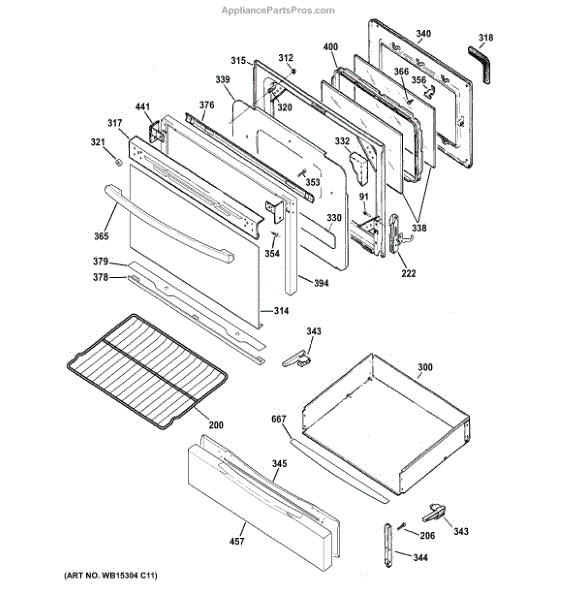

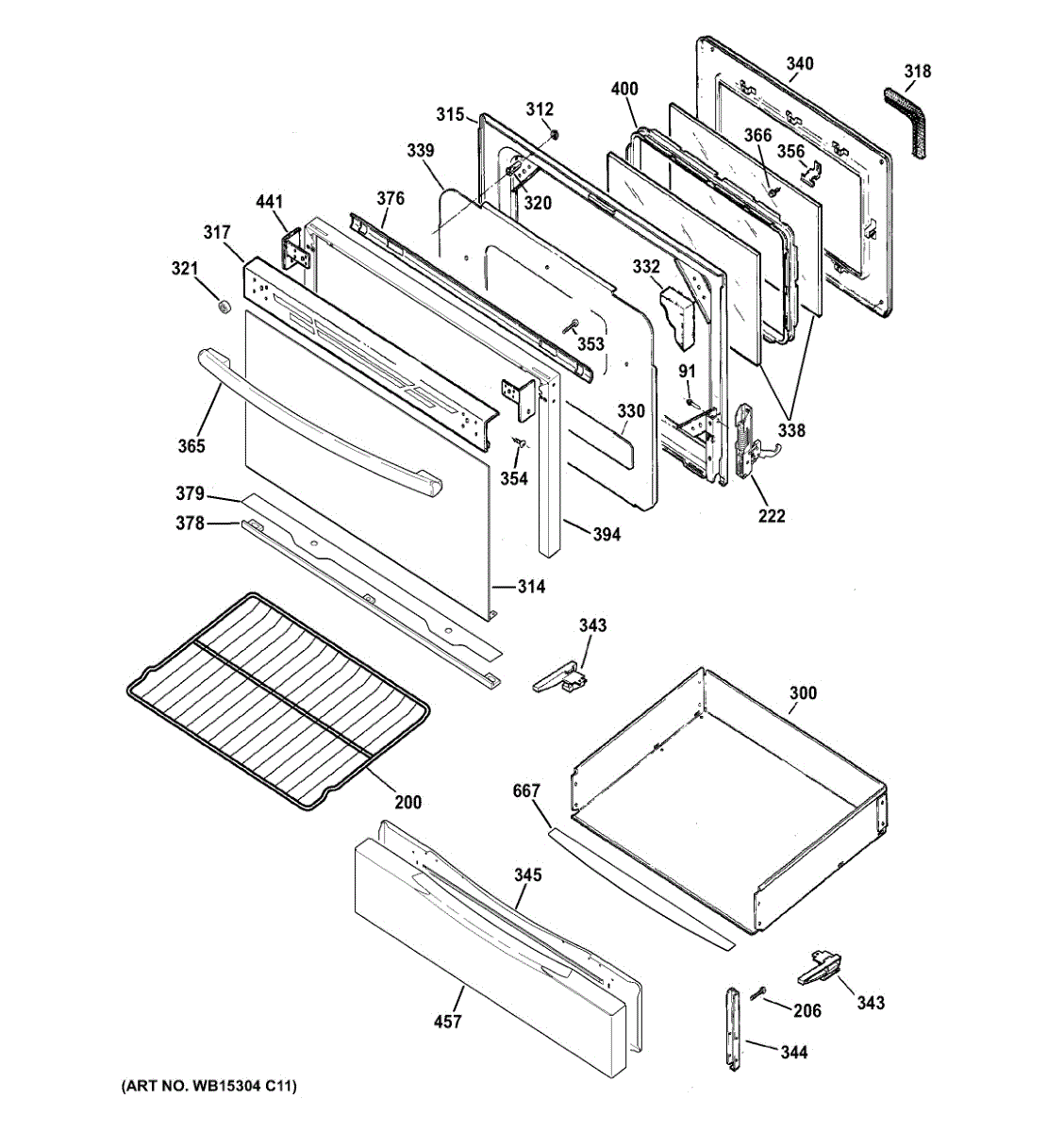

Parts for Ge JGB620DEF1BB: Door & Drawer Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This door hinge restores smooth, secure door movement so the door aligns and seals properly. Replace a worn or damaged hinge to correct doors that sag, rub, or won't close all the way.

• Supports the door and guides controlled opening and closing
• Keeps the door aligned for a proper latch/gasket seal
• Helps prevent heat/steam escape caused by poor closure
• Common symptoms: door won't close fully, door drops or feels loose, uneven sealing, squeaking or binding at the hinge

• Disconnect power at the breaker or unplug; allow the appliance to cool completely
• Support the door while removing screws/retainers; note hinge orientation for reassembly
• Use care—hinge mechanisms can be under tension and edges may be sharp; wear gloves/eye protection
• After installation, verify door alignment and closure; replace the opposite hinge if needed for even action

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

Includes 12 washers.

Color: Black

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This handle grommet cushions and secures a range or oven door handle, preventing vibration and wear while keeping the handle snug. It's a small replaceable part that restores proper fit and reduces rattling. What it does

• Provides a soft mounting surface between the handle and door to prevent metal-to-metal contact
• Keeps the handle tight and aligned to stop looseness or movement
• Dampens vibration and reduces rattling during operation
• Helps protect the door finish where the handle mounts

• One handle grommet

• High-level push-fit part; remove the handle or access the mounting area per your model's service instructions
• Disconnect power to the appliance before beginning service when accessing electrical or heated components
• Use a plastic trim tool or small screwdriver to pry out the old grommet carefully to avoid scratching the door
• If the handle or mounting hardware is damaged, inspect and replace as needed for a lasting repair

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This liner drawer replaces a damaged or cracked inner refrigerator drawer to restore storage and containment in the fresh-food compartment. Durable molded plastic matches original fit for smooth sliding and easy cleaning. What it does:

• Replaces a broken, cracked or warped inner drawer that can no longer hold items securely
• Restores proper alignment so the drawer opens and closes smoothly
• Helps contain spills and keeps produce or packaged foods separated
• Improves interior organization and usable shelf space

• 1 liner drawer

• High-level replacement: remove contents, lift out old drawer and slide in the replacement; your model diagram for exact removal steps
• Use care to avoid scratching interior surfaces; wear gloves to protect hands from sharp edges
• Verify correct orientation and track engagement before loading the drawer
• If the drawer slides or tracks are damaged, inspect and replace those parts separately

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This painted screw head is a cosmetic and protective cap that restores the finished look where a visible screw is used. It covers the screw head and helps match surrounding black trim for a clean appearance. What it does:

• Covers and conceals a screw head to improve appearance of panels, trim, or bezels
• Helps protect the screw head from direct exposure and reduces visible wear
• Used when trim or panels show exposed or mismatched screw heads
• Common fix when screw heads are scratched, discolored, or visually distracting

• Use the matching screw and press or snap the cap into place over the screw head
• Disconnect power and remove any panels only as recommended by your appliance manual before working near electrical components
• Avoid forcing or prying the cap; if tight, gently ease it on to prevent breakage
• Replace any damaged caps with the exact part to maintain fit and finish

This left-side black door handle replaces a damaged or missing handle to restore a secure grip and the appliance's finished appearance. Designed to match the original door hardware for a straightforward replacement. What it does:

• Replaces the left door handle to provide a safe, comfortable grip for opening and closing the door
• Addresses symptoms like cracked, loose, broken, or missing handles
• Restores the appliance's exterior appearance to its intended look
• Designed to align with factory mounting points for direct replacement when compatible

• Follow the appliance manufacturer's service instructions for removal and installation
• Preserve existing mounting screws/fasteners unless new hardware is explicitly included
• Use basic hand tools; wear gloves to protect finish and avoid cuts from sharp edges

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model
