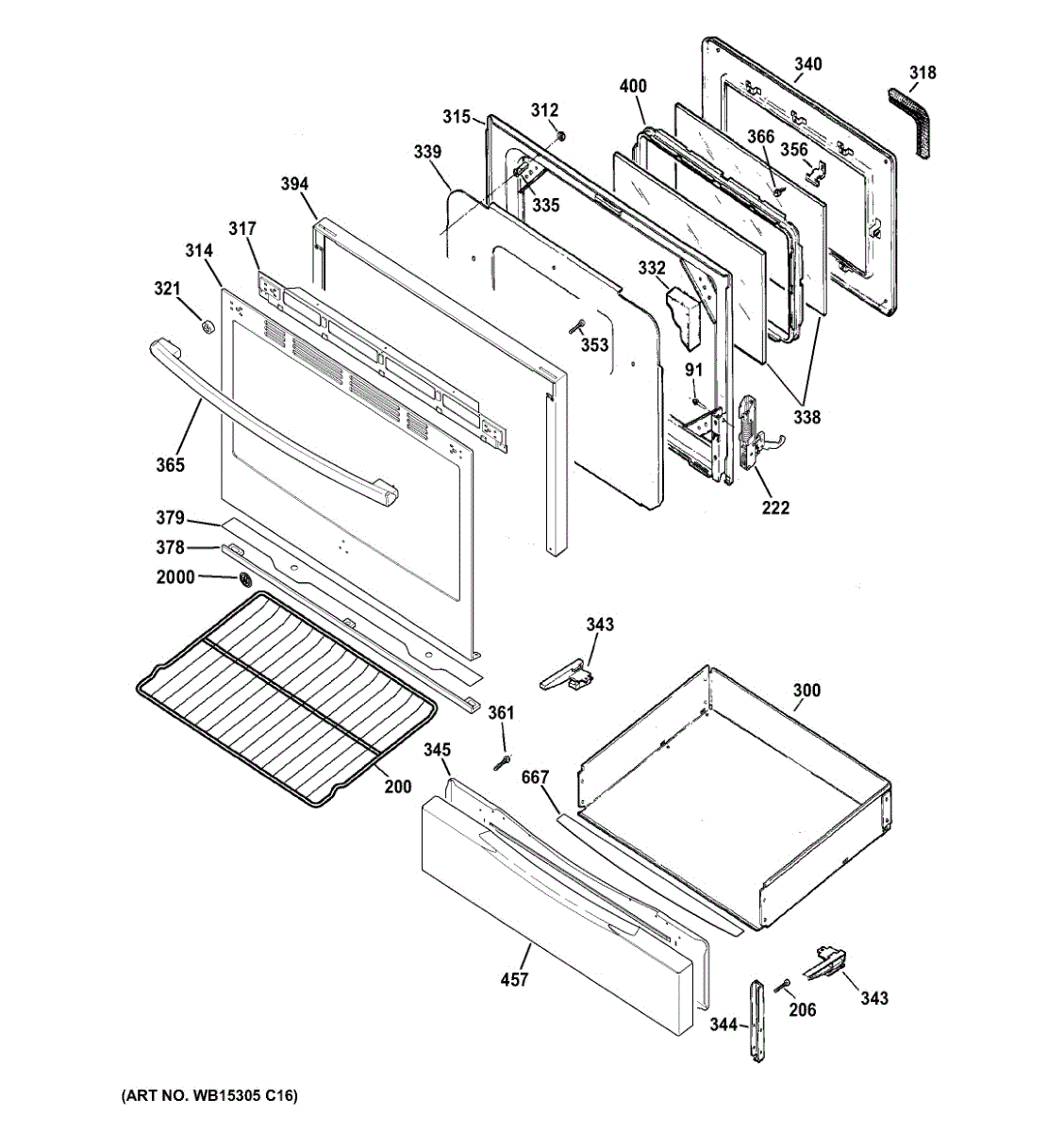

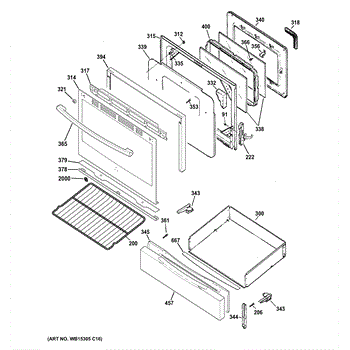

Parts for Ge JGB620REF2SS: Door & Drawer Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This door hinge restores smooth, secure door movement so the door aligns and seals properly. Replace a worn or damaged hinge to correct doors that sag, rub, or won't close all the way.

• Supports the door and guides controlled opening and closing
• Keeps the door aligned for a proper latch/gasket seal
• Helps prevent heat/steam escape caused by poor closure
• Common symptoms: door won't close fully, door drops or feels loose, uneven sealing, squeaking or binding at the hinge

• Disconnect power at the breaker or unplug; allow the appliance to cool completely
• Support the door while removing screws/retainers; note hinge orientation for reassembly
• Use care—hinge mechanisms can be under tension and edges may be sharp; wear gloves/eye protection
• After installation, verify door alignment and closure; replace the opposite hinge if needed for even action

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

Includes 12 washers.

This panel backer is the interior support piece that helps secure and align the appliance control panel, protecting wiring and switches while keeping the panel stable during use. It restores proper fit and prevents rattling or loose controls. What it does:

• Supports and positions the control/display panel so buttons and switches align correctly
• Protects internal wiring and components behind the control panel
• Reduces panel flexing, vibration noise, and intermittent button contact
• Helps maintain a flush, stable control surface for reliable operation

• Disconnect power before starting — follow appliance-specific safety steps
• Remove the outer control/display panel to access and replace the backer
• Transfer any buttons, clips, or switches from the old backer to the new part as needed
• Inspect adjacent wiring and mounting clips; replace any damaged fasteners for a secure fit

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This liner drawer replaces a damaged or cracked inner refrigerator drawer to restore storage and containment in the fresh-food compartment. Durable molded plastic matches original fit for smooth sliding and easy cleaning. What it does:

• Replaces a broken, cracked or warped inner drawer that can no longer hold items securely
• Restores proper alignment so the drawer opens and closes smoothly
• Helps contain spills and keeps produce or packaged foods separated
• Improves interior organization and usable shelf space

• 1 liner drawer

• High-level replacement: remove contents, lift out old drawer and slide in the replacement; your model diagram for exact removal steps
• Use care to avoid scratching interior surfaces; wear gloves to protect hands from sharp edges
• Verify correct orientation and track engagement before loading the drawer
• If the drawer slides or tracks are damaged, inspect and replace those parts separately

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Handle and End Cap Assembly is an OEM part for GE electric ranges

Causes of a bad handle and end cap can include loss of integrity in seals after years of daily use. Cooking vapors may prematurely wear away protective finishes over time as well.

Symptoms of a bad handle and end cap assembly include:

• Difficulty opening or closing the oven door
• Loose, rattling or misaligned handle mounting
• Peeling or flaking cosmetic coatings
• Drafty air gaps presenting heat loss and burn risks

It is also compatible with Hotpoint, RCA, and certain Kenmore electric ranges.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This bottom door deflector restores the lower door trim and helps protect the door's underside from debris, moisture and direct contact wear. It provides a proper fit and finish for the appliance door assembly. What it does

• Shields the lower edge of the door from moisture, drips and everyday wear
• Helps maintain proper clearance between the door and cabinet/frame
• Prevents debris buildup under the door trim that can affect seal and appearance
• Replaces damaged or cracked deflector pieces that cause visible gaps or rubbing

• Disconnect power to the appliance before starting any repair
• Remove the door or access panel per the appliance manual to reach mounting points
• Align the deflector with existing screw holes or clips; secure with original fasteners
• If clips or screws are damaged, replace them with OEM-equivalent parts for a secure fit

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This replacement drawer assembly restores a damaged or cracked refrigerator storage drawer so you can organize produce and chilled items securely. Durable molded construction replaces worn drawers to keep contents contained and accessible. What it does:

• Replaces a broken, cracked or misshapen storage drawer that won't hold food securely
• Provides a smooth, stable surface for storing produce and other refrigerated items
• Slides into existing tracks/drawer guides to restore normal opening and closing
• Helps keep refrigerator contents organized and easy to access

• Disconnect power to the appliance before service for safety
• Remove shelves or items that block access, then slide out the old drawer and install the new assembly on existing rails
• Retain and reuse existing fasteners, brackets or rails unless shown otherwise in your model's parts diagram

This oven door insulation panel fits behind the oven door to help retain cooking heat and reduce heat transfer to the outer door. It restores proper thermal performance for safer, more consistent cooking. What it does:

• Provides a thermal barrier behind the oven door to help keep heat inside the oven cavity
• Helps the oven reach and hold set temperatures more consistently
• Reduces excessive heat on the exterior door surface
• Replace if insulation is torn, missing, or visibly degraded

• Disconnect power to the appliance before beginning any service
• Follow the oven/door removal and reassembly steps from the manufacturer's service manual
• Wear gloves and eye protection; insulation may have fibrous material
• Avoid compressing or folding the insulation during installation; ensure it is positioned as originally installed
