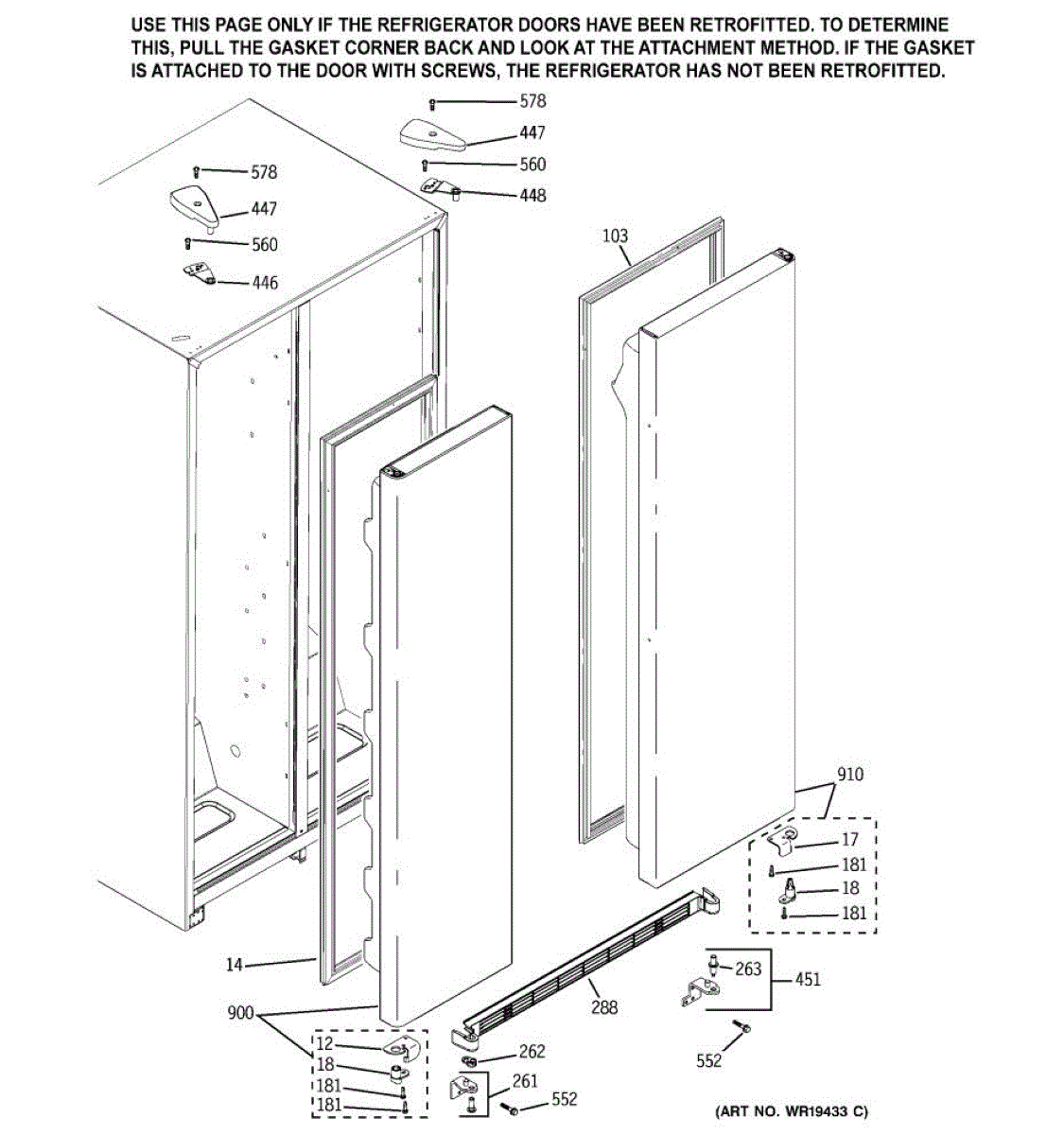

Parts for Ge GSA22KBMCFBB: 01 - Door Kit Parts

This freezer door stop plate helps position and secure the door by limiting its swing, restoring proper alignment and preventing over-rotation that can cause gaps or rubbing. Simple replacement for worn or damaged stops. What it does:

• Stops the freezer door at the correct open/closed position so the door seals properly
• Prevents the door from swinging too far and rubbing or catching on the cabinet
• Restores consistent door alignment when the original stop is bent, broken, or missing
• Reduces wear on hinge and gasket areas caused by improper door travel

• One freezer door stop plate

• Disconnect power to the appliance before starting any repair to avoid injury
• Remove the freezer door or access panel as needed to reach the stop plate
• Use hand tools to remove/install mounting screws; align the plate before tightening to avoid misalignment
• Do not force parts; if mounting holes are damaged, assess bracket/hinge condition before finalizing repair

Black

Fresh food

Black

10-32 F HXW 3/4 S

Black

This top hinge assembly secures and guides the freezer door, restoring proper alignment and smooth opening/closing for refrigerators. Replace a worn or damaged hinge to stop sagging, rubbing, or uneven door gaps. What it does:

• Supports the freezer door at the cabinet top and keeps the hinge pivot aligned
• Allows the door to swing smoothly without binding or scraping
• Helps maintain an even door seal to improve closing reliability
• Addresses symptoms like door sag, uneven gaps, rubbing, or noisy hinge movement

• Disconnect power and empty or support the door before removing hinge hardware
• Use appropriate tools and have a helper to hold the door during replacement
• Reinstall hardware snugly and check door alignment and seal before restoring service
• If plastic trim or cap is present, handle carefully to avoid breakage

12-24 TT HX .811

12-24 CA HX 7/8 S

Package of 12
